Engine room compartment overview

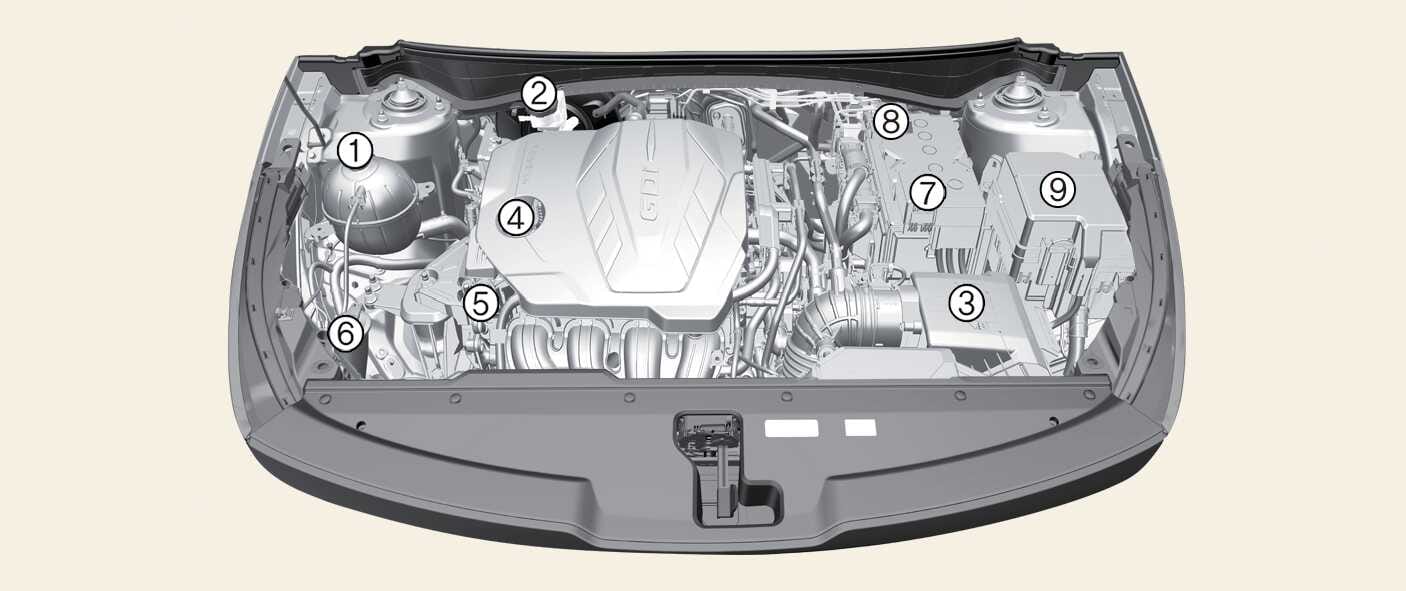

Figure 1. Smartstream G2.5 GDi
ONQ5061001R

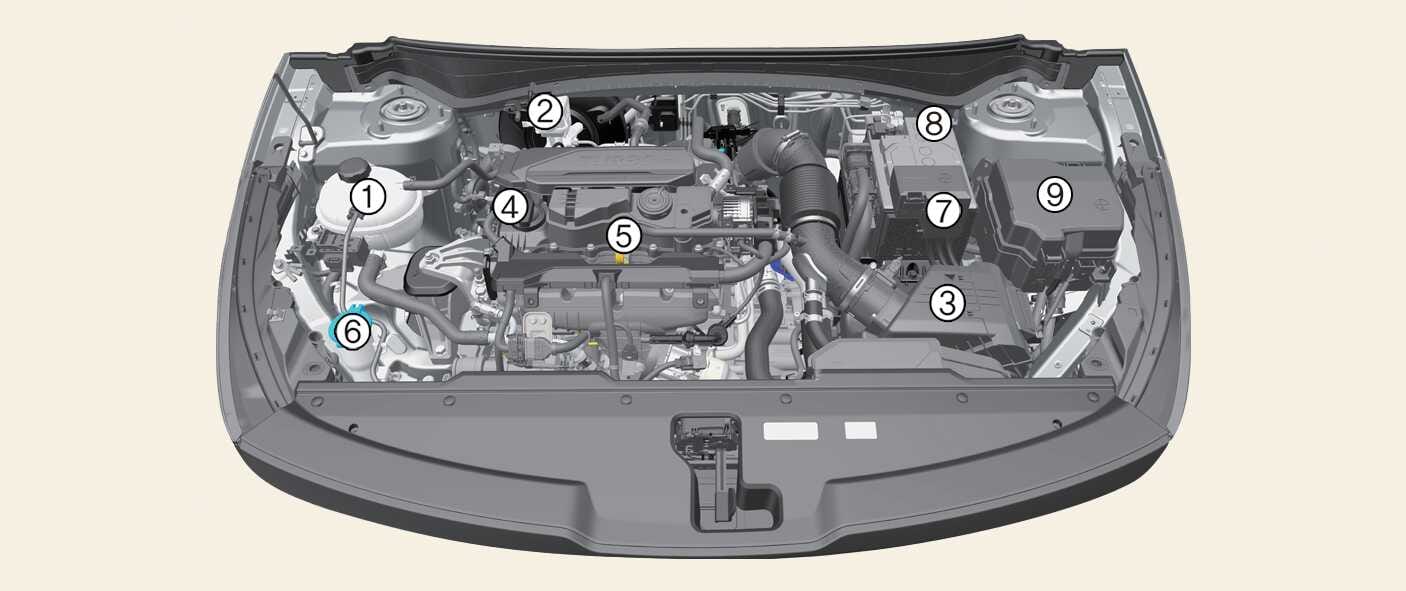

Figure 2. Smartstream G1.6 T-GDi
ONQ5061087R

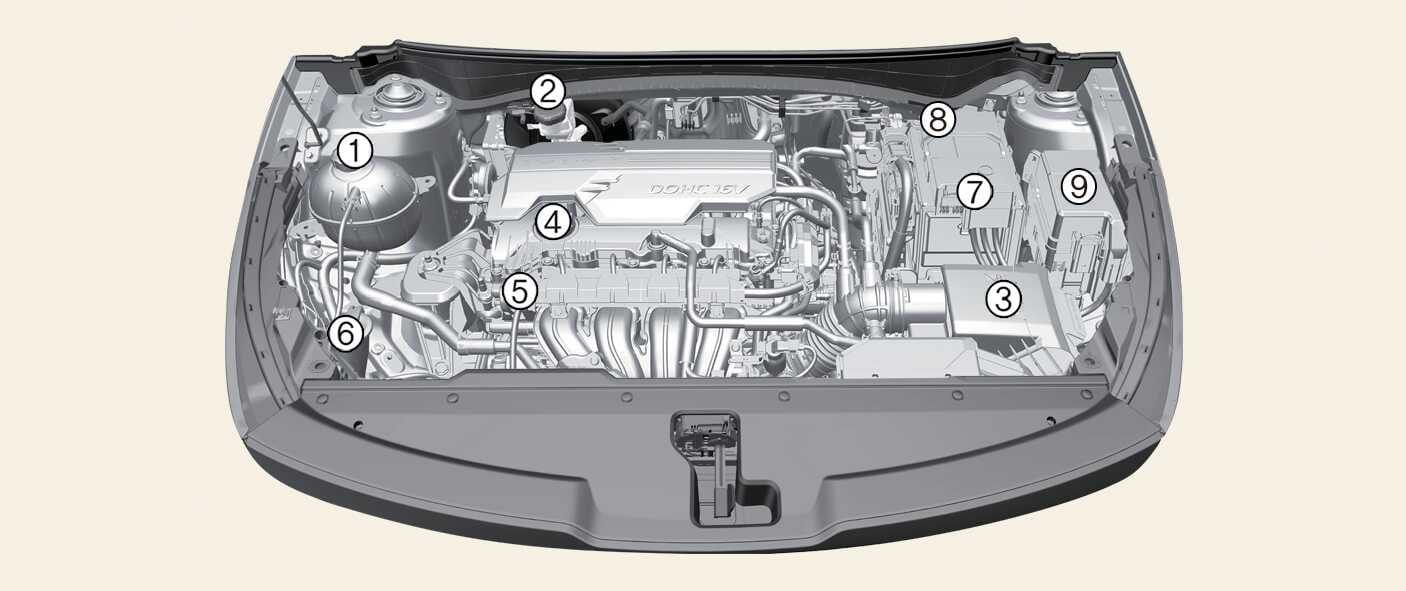

Figure 3. Smartstream G2.0
ONQ5061084R

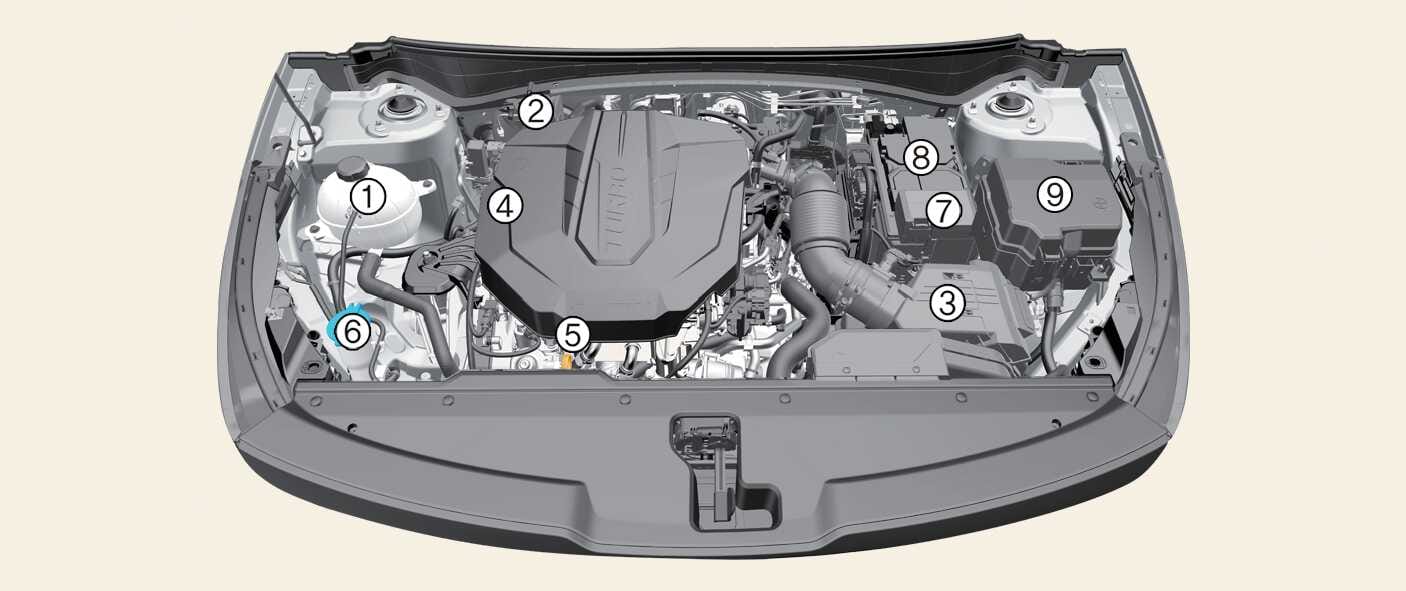

Figure 4. Smartstream D2.0
ONQ5061002R

The actual engine compartment in your Kia may differ from the illustration.

  1. Engine coolant reservoir Engine coolant

  2. Brake fluid reservoir Brake/clutch fluid

  3. Air cleaner Air cleaner filter

  4. Engine oil filler cap Engine oil

  5. Engine oil dipstick Engine oil

  6. Windscreen washer fluid reservoir Washer fluid

  7. Positive battery terminal (+) Jump-starting, Battery

  8. Negative battery terminal (-) Jump-starting, Battery

  9. Fuse box Fuses
