ISOFIX low anchorage and ISOFIX top tether anchorage (ISOFIX anchorage system) for children

ISOFIX low anchorages are metal bars built into the vehicle. There are two lower anchors for each ISOFIX seating position that will accommodate a Child Restraint System with lower attachments.

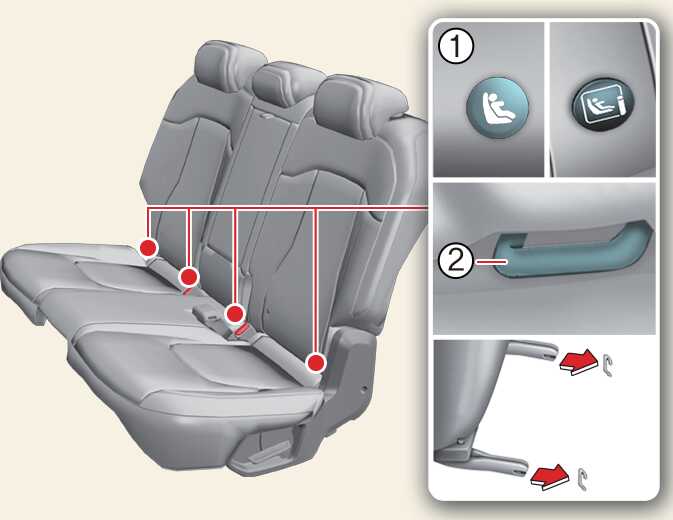

ONQ5025031L_4

  1. ISOFIX low anchor position indicator

  2. ISOFIX low anchor

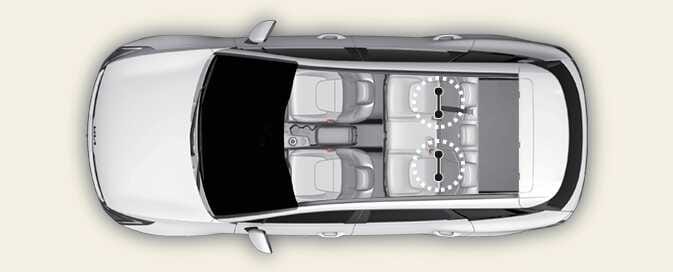

ISOFIX low anchorages have been provided in the left and right outboard rear seating positions.

ONQ5H024006
WARNING

Do not attempt to install a Child Restraint System using ISOFIX low anchorages in the rear centre seating position. There are no ISOFIX low anchorages provided for this seat. Using the outboard seat anchorages, for the CRS installation on the rear centre seating position, can damage the anchorages.
