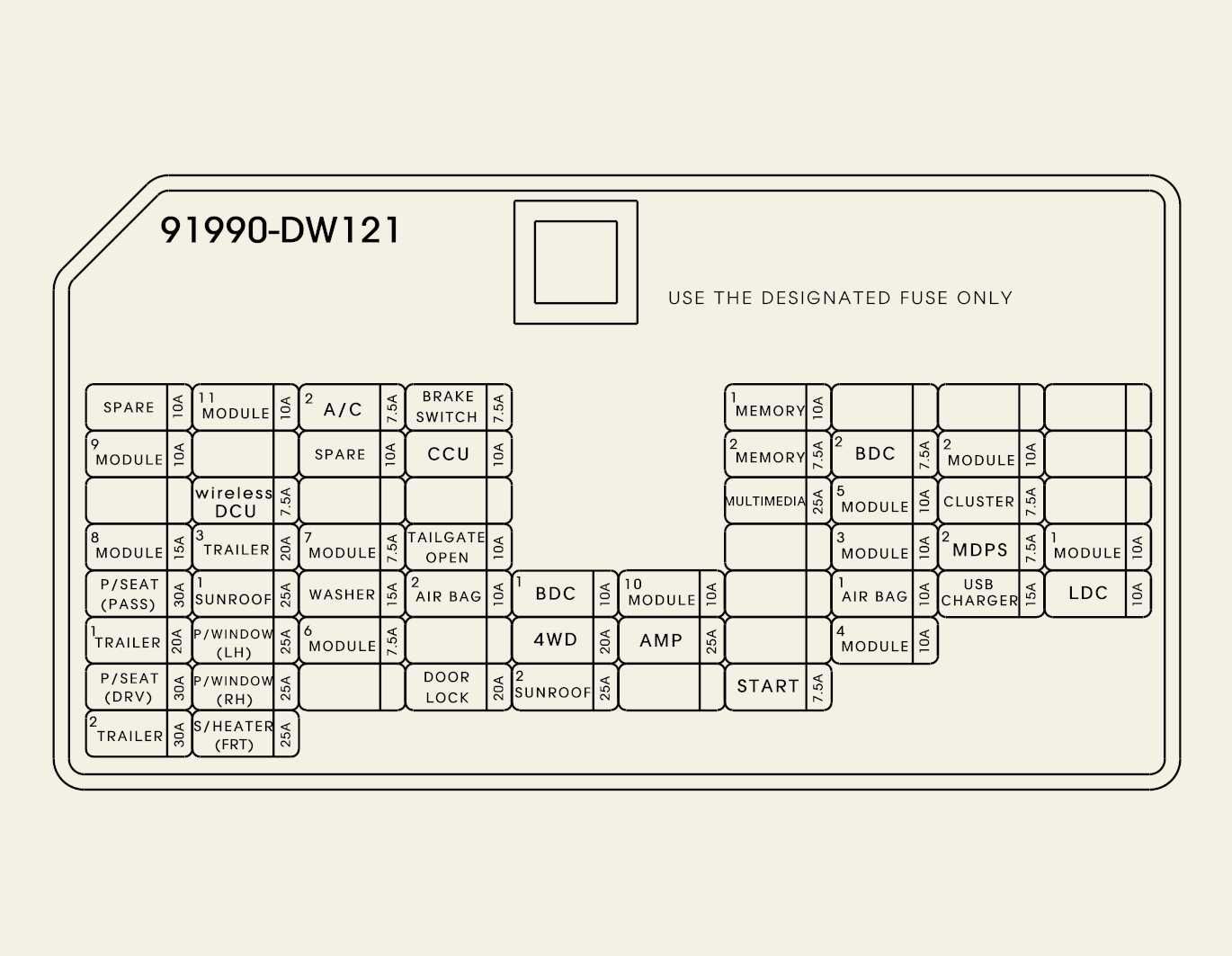

Driver’s side fuse panel
 ONQ5061022 |
PDC Block
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|
|
DOOR LOCK |
20A |
Center Door Lock/Unlock Relay, T/TURN UNLOCK Relay |
|
P/WINDOW RH |
25A |
P_WDW_SW_PASS, P_WDW_SW_RR |
|
P/WINDOW LH |
25A |
SAFETY_ECU_DRV, P_WDW_SW_RL |
|
S/HEATER (FRT) |
25A |
Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module |
|
P/SEAT (PASS) |
30A |
Passenger Power Seat Switch, Passenger Seat Relay Unit |
|
SUNROOF2 |
25A |
Sunroof Controller (Blind Motor) |
|
AIRBAG2 |
10A |
ACU |
|
SUNROOF1 |
25A |
Sunroof Controller (Glass Motor) |
|
P/SEAT DRV |
30A |
Driver Power Seat Switch, Driver IMS (Integrated memory system) Control Module |
|
MODULE9 |
10A |
HAZARD_SW, ICC UNIT |
|
AMP (Amplifier) |
25A |
AMP (Amplifier) |
|
BDC 2 |
7.5A |
BDC (Body Domain Controller) |
|
MEMORY1 |
10A |
CLUSTER, ISG_LDC(450W), CCNC_KEYBOARD, BDC, HUD, DATC/MTC UNIT, ADAS_PRK, CCU, C_RADAR_RR//RL |
|
TAILGATE OPEN |
10A |
Liftgate Relay |
|
MODULE7 |
7.5A |
P_LBM, W/S HEATED GLASS LH/RH RLY |
|
BRAKE SWITCH |
7.5A |
Stop Lamp Switch, BDC (Body Domain Controller) |
|
MULTIMEDIA |
25A |
CCNC UNIT, ISG LDC |
|
WASHER |
15A |
Multifunction Switch |
|
MODULE8 |
15A |
P_WDW_MAIN_SW_DRV, O_S_MIRR GLASS DRV/PASS |
|
AIRBAG1 |
10A |
ACU, ODS |
|
A/C2 |
7.5A |
E/R Junction Block (PTC Heater Relay #1, Blower Relay), Air Conditioner Controller (LCD), Air Conditioner Control Module |
|
MODULE2 |
10A |
CCU(Central Communication Unit), STOP_LP_SW |
|
MODULE6 |
7.5A |
BDC (Body Domain Controller) |
|
MODULE1 |
10A |
CCU(Central Communication Unit), BDC, AMP, ADAS_PRK, DCU, CCNC UNIT, ISG LDC, CCNC KEYBOARD |
|
BDC1 |
10A |
IGN_SW, BDC, BLE_MASTER/SLAVE, LEVER_ATM, UWB_FL/FR/RL/RR |
|
MODULE5 |
10A |
I_S_MIRR, OHCL, ICC UNIT, CONSOLE_TRAY, CCNC UNIT, DATC/MTC UNIT, ISG_LDC, SEAT_EXTN_DRV, AMP, CONSOLE_UPR_EXTN |
|
MODULE4 |
10A |
FRT_CAMERA, ADAS_DRV, ADAS_PRK, 4WD ECU, C_RADAR RR/RL, CDCU(Chassis Domain Control Unit), C_RADAR_FR/FL |
|
CLUSTER |
7.5A |
CLUSTER, HUD |
|
MODULE3 |
10A |
P_WDW_MAIN_SW_DRV |
|
MDPS1* |
7.5A |
Motor Driven Power Steering Unit |
|
START |
7.5A |
Ignition Switch, BDC (Body Domain Controller), INHIBIT_SW |
|
LDC |
10A |
ISG_LDC, CCNC KEYBOARD, MTC UNIT, HUD, CLUSTER, C_RADAR_RL//RR, ADAS_PRK, CONSOLE_TRAY(WIRELESS_CHARGER) |
|
MODULE11 |
10 A |
Active Air Flap Unit |
|
CCU |
10 A |
CCU |
|
wireless DCU |
7.5 A |
DCU |
|
TRAILER1 |
20A |
Trailer (CTM2 Unit) |
|
TRAILER2 |
30A |
Trailer (CTM2 Unit) |
|
TRAILER3 |
20A |
Trailer (Electronic Brake Controller) |
|
USB CHARGER |
15 A |
Front USB Charger Connector, Driver/Passenger Seat USB Port |
|
4WD |
20 A |
4WD ECU |
|
MODULE10 |
10 A |
OBDII, RAIN_SNSR |
|
MEMORY2 |
7.5 A |
CONSOLE_TRAY(WIRELESS_CHARGER) |
*1: MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).
