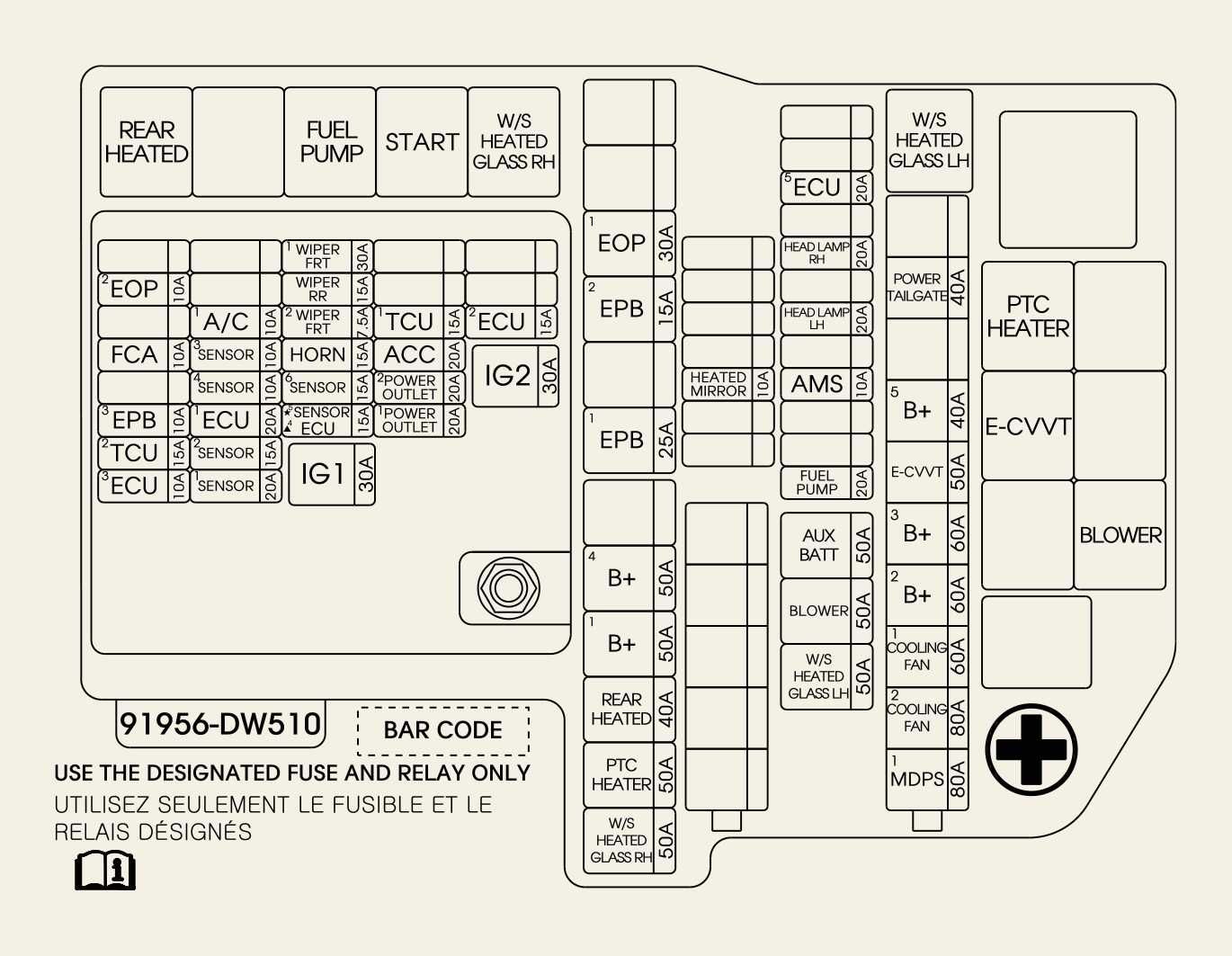

Engine compartment fuse panel
 ONQ5061059N |
Engine Room Junction Block
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|
|---|---|---|---|
|
MULTI FUSE-1 |
MDPS1* |
80A |
Motor Driven Power Steering Unit |
|
B+3 |
60A |
PDC Junction Block (Fuse - TRAILER2, P/SEAT (DRV), P/SEAT (PASS), S/HEATER FRT, SUNROOF1, MODULE11, P/WINDOW LH, P/WINDOW RH, MODULE8, TRAILER3, WIRELESS DCU, MODULE9, TRAILER1) |
|
|
COOLING FAN1 |
60A |
Cooling Fan Controller |
|
|
E-CVVT |
50A |
E-CVVT Relay (Theta Engine) |
|
|
B+5 |
40A |
PCB Block (Fuse - AMP, MODULE10, AIR BAG2) |
|
|
B+2 |
60A |
PDC Junction Block (IPS8/IPS9/IPS10/IPS11/IPS12) |
|
|
POWER TAILGATE |
40A |
Power Liftgate Open |
|
|
COOLING FAN2 |
80A |
Cooling Fan Controller(Gamma only) |
|
|
FUSE |
B+4 |
50A |
PDC Junction Block (Fuse - MULTIMEDIA, MEMORY1, MEMORY2, CCU, BDC1, BRAKE SWITCH, SUNROOF2, 4WD, DOOR LOCK, TAILGATE OPEN) |
|
AUX BATT |
50A |
20AH Lithium Type Battery |
|
|
BLOWER |
50A |
Blower Relay |
|
|
W/S HEATED GLASS RH |
50A |
Windshield Heated Relay RH |
|
|
PTC HEATER |
50A |
PTC Heater |
|
|
W/S HEATED GLASS LH |
50A |
Windshield Heated Relay LH |
|
|
REAR HEATED |
40A |
Rear Heated Relay |
|
|
EPB1 |
25A |
Electronic Parking Brake |
|
|
B+1 |
50A |
PDC Junction Block (IPS1/IPS2/IPS3/IPS4/IPS5/IPS6/IPS7) |
|
|
HEAD LAMP RH |
20A |
Front Head Lamp RH |
|
|
EOP1 |
30A |
Electronic Oil Pump |
|
|
HEAD LAMP LH |
20A |
Front Head Lamp LH |
|
|
FUEL PUMP |
20A |
Fuel Pump Relay |
|
|
EPB2 |
15A |
Electronic Parking Brake |
|
|
HEATED MIRROR |
10A |
O_S_MIRR HTD |
|
|
AMS |
10A |
BATT SNSR |
|
|
ECU5 |
20A |
ECU (Gamma only) |
|
*1: MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).
PCB Block
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|
|
IG2 |
30A |
IG2 Relay |
|
IG1 |
30A |
IG1 Relay, ACC Relay |
|
FR WIPER2 |
7.5A |
Front Wiper (Low) Relay, BDC (Body Domain Controller) |
|
SENSOR1 |
20A |
Ignition Coil #1~#4 |
|
ECU3 |
10A |
Power train Control Module |
|
SENSOR5 |
15A |
SENSOR5(THETA): INJECTOR #1~#4 ECU4(GAMMA): Power train Control Module |
|
SENSOR3 |
10A |
Oil Control Valve (Exhaust), Purge Control Solenoid Valve, Variable Oil Pump Solenoid, Variable Intake Solenoid Valve, CCV. Oil Level SNSR |
|
ECU1 |
20A |
Power train Control Module |
|
SENSOR2 |
15A |
Oxygen Sensor (UP /DOWN) |
|
FR WIPER1 |
30A |
Wiper Main Relay, Front Wiper (Low) Relay |
|
RR WIPER |
15A |
Wiper Main Relay, PDC Junction Block (Rear Wiper Relay) |
|
HORN |
15A |
Horn Relay |
|
A/C1 |
10A |
Air Conditioner Comp Relay |
|
FCA |
10A |
Front Radar |
|
SENSOR4 |
10A |
Cooling Fan Controller |
|
SENSOR6 |
15A |
Fuel Pump Relay |
|
ECU2 |
15A |
Power train Control Module |
|
TCU1 |
15A |
Power train Control Module |
|
EPB3 |
10A |
Electronic Parking Brake |
|
POWER OUTLET2 |
20A |
Luggage Power Outlet |
|
POWER OUTLET1 |
20A |
Front Power Outlet |
|
ACC |
20A |
PDC Junction Block ACC |
|
TCU |
15A |
TCU(GAMMA ONLY) |
|
EOP2 |
10A |
Electronic Oil Pump |
Relay
Refer to the following table for the relay type.
|
Relay Name |
TYPE |
|---|---|
|
Rear Heated Relay |
MICRO |
|
Start Relay |
MICRO |
|
Fuel Pump Relay |
MICRO |
|
Windshield Heated Relay LH |
MICRO |
|
PTC Heater Relay #1 |
MICRO |
|
Windshield Heated Relay RH |
MICRO |
|
E-CVVT Relay (Theta Engine) |
MICRO |
|
Blower Relay |
MICRO |
