Replacing glove box lamp (Bulb type)

Replacing glove box lamp (Bulb type)

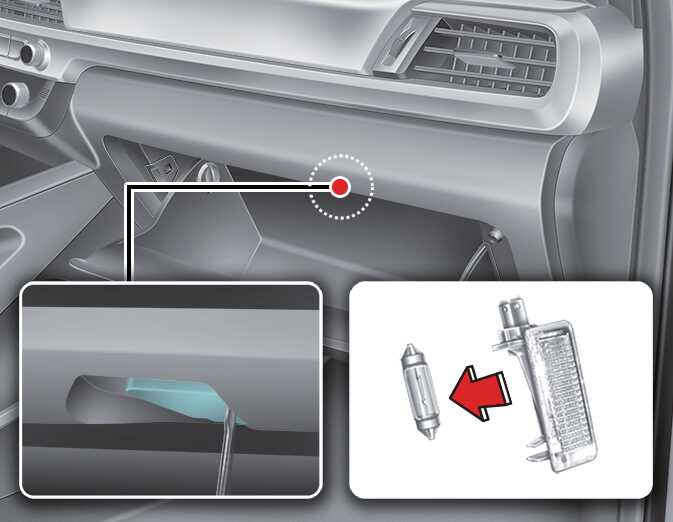

Using a flat-blade screwdriver, gently pry the lamp assembly from interior.
Remove the bulb by pulling it straight out.
Install a new bulb in the socket.
Install the lamp assembly to interior.

CAUTION

Be careful not to damage the lens, lens tab, and plastic housings or get them dirty.
