Selecting rear mode
The rear mode is selected by pressing the rear mode selection button on the rear control panel as follows:
-
: Rear air blows from the upper vents.
-

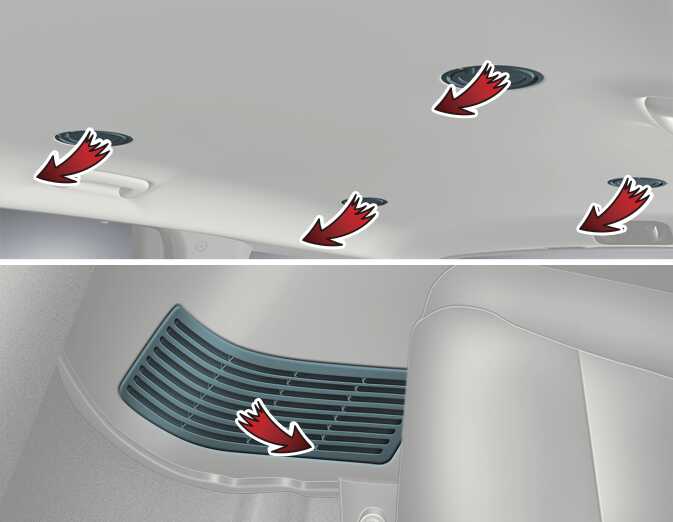

: Rear air blows from the upper vents on the rear ceiling and the lower vents.
-
: Rear air blows from the right side lower vents.

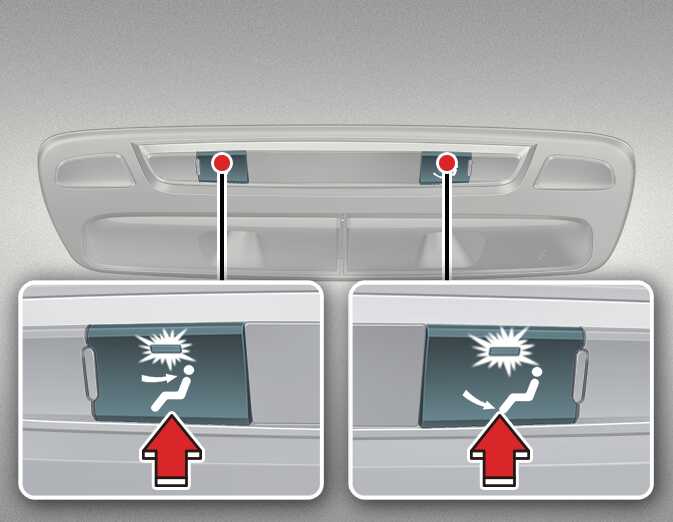

: Air discharged from [A] spreads over a wider area.
: Air discharged from [B] has a centered and direct flow.

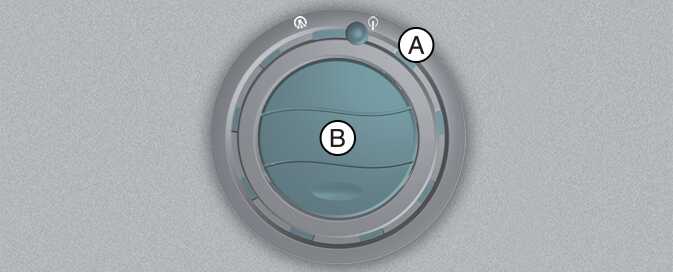

Opening/closing the vent and adjusting the direction
You can set the direction of air by adjusting the knob of air vents located above the 2nd-row and 3rd-row seats. Adjust the outer and central parts of the air vent to the desired positions.
|
Outer part of the vent (A) |
Central part of the vent (B) |
Description |
|
|---|---|---|---|
|
Open |
|
Close |
The air spreads widely around the passenger. However, the air volume may decrease. |
|
Open |
|
Open |
The air is spread widely towards and around the passenger. |
|
Close |
|
Open |
The air blows only towards the passenger. |
If all the vents are closed, it may cause some noise. Always open 2 vents or more.
