Air conditioning (A/C) refrigerant label

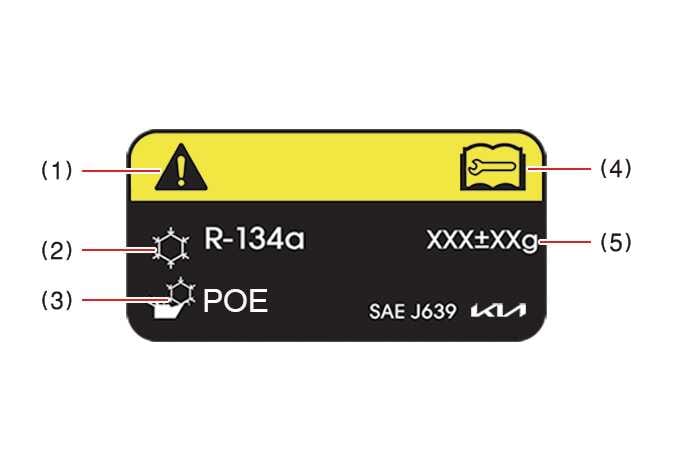

Figure 1. Type A
KIAPB116

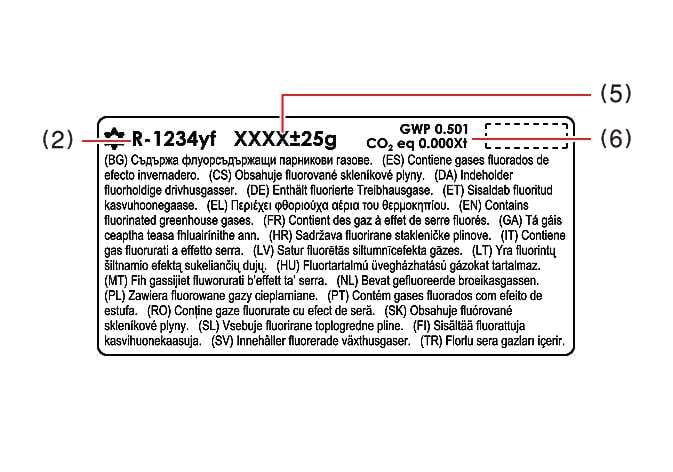

Figure 2. Type B
KIAPB117

The A/C refrigerant label in the vehicle may differ from the illustration.

Each symbol and specification on the A/C refrigerant label is represented below:

  1. Caution

  2. Classification of refrigerant

  3. Classification of compressor lubricant

  4. Service manual

  5. Amount of refrigerant

  6. CO 2 equivalent of refrigerant

Refer to Refrigerant label for more information on the location of the air conditioning refrigerant label.
