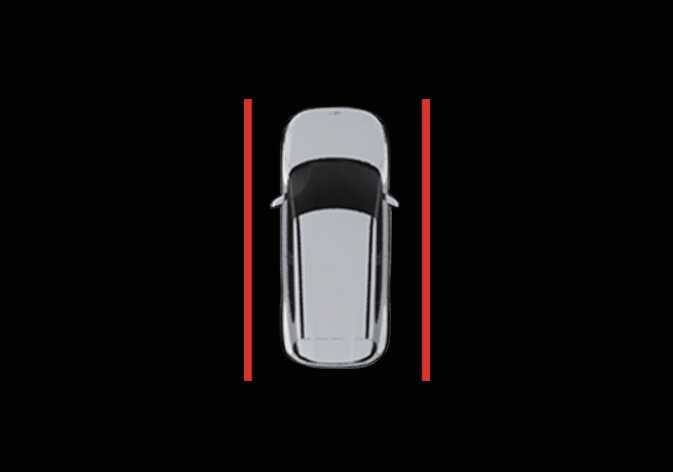

Side Parking Distance Warning: (if equipped)
Side Parking Distance Warning operates when any of the following conditions is satisfied:
-
The Front or Rear Parking Distance Warning is turned on
-
Side Parking Distance Warning only works when your speed is below 10 km/h (6 mph).
-
Side Parking Distance Warning only works when the Forward/Reverse Parking Distance Warning function is ON.
-
The warning sound may be turned off when the vehicle is stopped.
Warning indicator and warning sound
|
Distance from object |
Warning indicator |
Warning sound |
|
|---|---|---|---|
|
Instrument cluster |
Infotainment system screen |
||
|

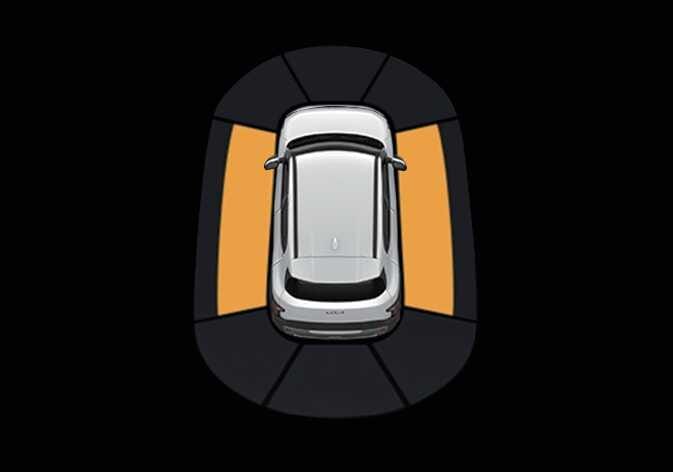

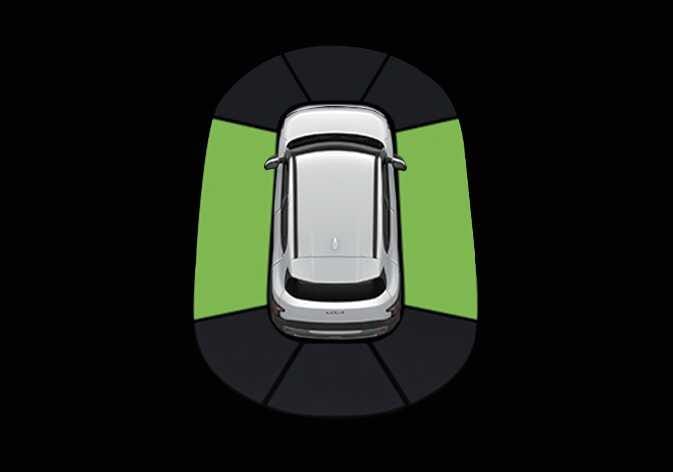

60–120 cm (24–48 in) |
|
|
- |
|
30–60 cm (12–24 in) |
|
|
- |
|

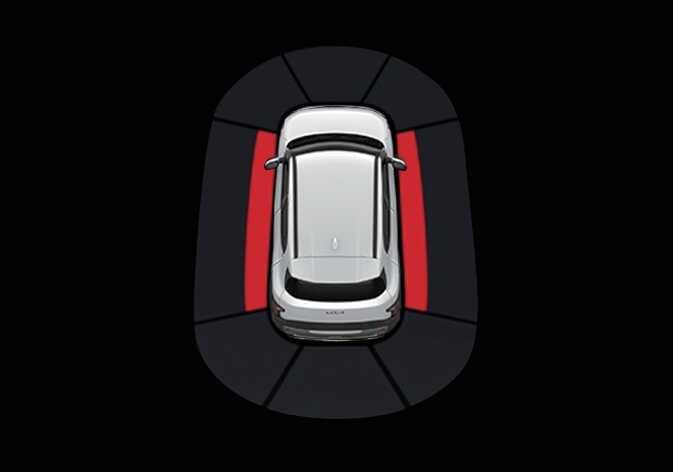

within 30 cm (12 in) |
|
|
Buzzer beeps continuously |
-
When the side ultrasonic sensor detects a person or object, the instrument cluster or infotainment system screen displays indicator lights for each distance.
-
A warning sounds when the sensor detects an object within 30 cm (12 in) of the side in the vehicle’s exit path.
-
If the sensor detects an object to the side outside the vehicle’s exit path, it only displays the indicator light.
-
In D (Drive), when the distance from the object is 30 cm (12 in) or more, the instrument cluster does not display the side-way warning.
-
The shape of the indicator in the illustration may differ from the indicator displayed by your vehicle.
