Fuse/relay panel description
In this section, you can find the fuse/relay label describing the fuse/relay name and capacity.
While the fuse panel descriptions in this manual are accurate at the time of printing, not all fuse panel descriptions may apply to your vehicle.

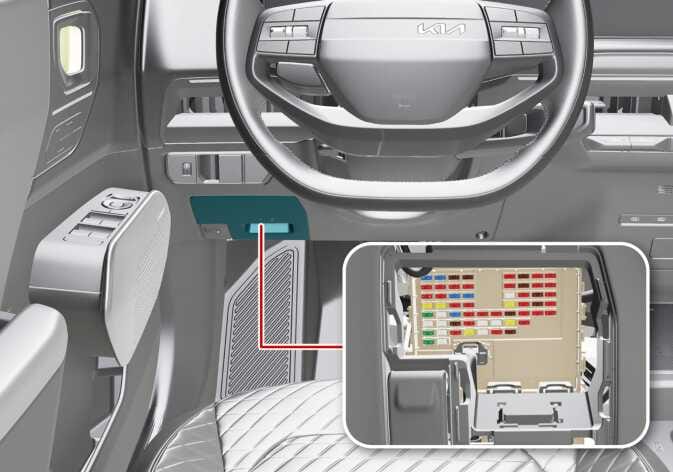

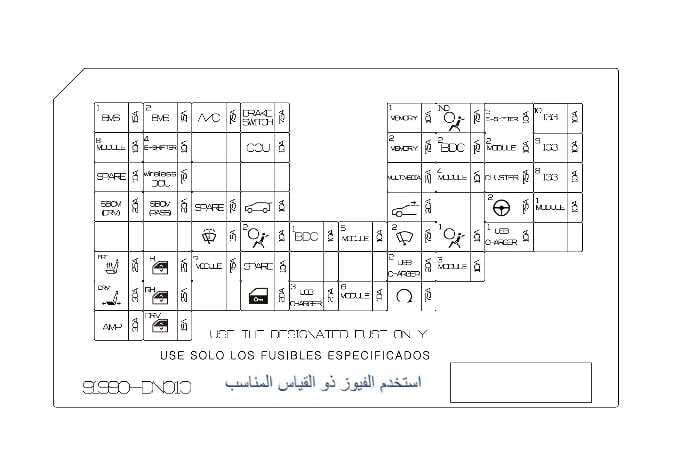

Driver side fuse panel
 N_QVe27_B12_024_1_E |
|
FUSE NUMBER |
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|---|
|
FUSE01 |
BMS1 |
15A |
BMS (Battery Management System) |
|
FUSE02 |
BMS2 |
15A |
BMS (Battery Management System) |
|
FUSE03 |
A/C |
7.5A |
ATCU (Air Temperature Control) ATCU Controller |
|
FUSE04 |
BRAKE SWITCH |
7.5A |
BDC (Body Domain Controller) Stop Lamp Switch |
|
FUSE05 |
MEMORY1 |
10A |
SAL (Smart Ambient Light) CLUSTER WPC (Wireless Power Charger) ATCU (Air Temperature Control) ATCU Controller MKBD (Multimedia Keyboard) BDC (Body Domain Controller) ADAS Parking ECU (Advanced Driver Assistance System Parking ECU) |
|
FUSE06 |
A/BAG IND |
7.5A |
PAB IND (Passenger Airbag Indicator) |
|
FUSE07 |
E-SHIFTER5 |
10A |
SBW Lever (Shift By Wire Lever) |
|
FUSE08 |
IG3 10 |
10A |
SEAT USB_CHARGER (DRV) SEAT USB_CHARGER (PASS) Door Trim Switch (DRV) Door Trim Switch (PASS) RR CONSOLE V2L |
|
FUSE09 |
MODULE8 |
10A |
CDM (Charge Door Module) ICMU (In Cabin Monitoring Unit) ICMU Inside Mirror OBD (On Board Diagnostic) Rain Sensor |
|
FUSE10 |
E-SHIFTER4 |
10A |
SBW Lever (Shift By Wire Lever) |
|
FUSE11 |
RESERVE |
10A |
Not Used |
|
FUSE12 |
CCU |
10A |
CCU (Communication Central Unit) |
|
FUSE13 |
MEMORY2 |
7.5A |
ATCU (Air Temperature Control) ATCU Controller MKBD (Multimedia Keyboard) ccNC (connected car Navigation Cockpit) BDC (Body Domain Controller) ADAS Parking ECU (Advanced Driver Assistance System Parking ECU) |
|
FUSE14 |
BDC2 |
7.5A |
BDC (Body Domain Controller) |
|
FUSE15 |
MODULE2 |
10A |
Power Window Switch DRV CCU (Communication Central Unit) Stop Lamp Switch |
|
FUSE16 |
IG3 9 |
10A |
CCU (Communication Central Unit) CDM (Charge Door Module) |
|
FUSE17 |
SPARE |
10A |
SPARE |
|
FUSE18 |
wireless DCU |
7.5A |
DCU (Data Connectivity Unit) |
|
FUSE19 |
RESERVE |
15A |
Not Used |
|
FUSE20 |
RESERVE |
15A |
Not Used |
|
FUSE21 |
MULTIMEDIA |
25A |
ccNC (connected car Navigation Cockpit) |
|
FUSE22 |
MODULE4 |
10A |
Inside Mirror OBD (On Board Diagnostic) WPC (Wireless Power Charger) ccNC (connected car Navigation Cockpit) SAL (Smart Ambient Light) CDU (Climate Display Unit) ICMU (In Cabin Monitoring Unit) Crash Pad Switch |
|
FUSE23 |
CLUSTER |
7.5A |
CLUSTER |
|
FUSE24 |
IG3 8 |
10A |
PTC HEATER ccNC (connected car Navigation Cockpit) ATCU (Air Temperature Control) Controller Active Incar USB charger |
|
FUSE25 |
SBCM DRV |
20A |
SBCM DRV (Side Body-zone Control Module Driver) |
|
FUSE26 |
SBCM PASS |
20A |
SBCM PASS (Side Body-zone Control Module Passenger) |
|
FUSE27 |
SPARE |
7.5A |
SPARE |
|
FUSE28 |
TAILGATE OPEN |
10A |
Tailgate Latch Actuator |
|
FUSE29 |
SUNROOF |
20A |
Sunroof Motor |
|
FUSE30 |
RESERVE |
10A |
Not Used |
|
FUSE31 |
MDPS2 |
7.5A |
MDPS (Motor Driven Power Steering) |
|
FUSE32 |
MODULE1 |
10A |
DCU (Data Connectivity Unit) BDC (Body Domain Controller) ccNC (connected car Navigation Cockpit) CCU (Communication Central Unit) |
|
FUSE33 |
RESERVE |
30A |
Not Used |
|
FUSE34 |
RESERVE |
25A |
Not Used |
|
FUSE35 |
WASHER |
15A |
Washer Motor |
|
FUSE36 |
AIR BAG2 |
10A |
ISCM (Intergrated Safety Control Module) |
|
FUSE37 |
BDC1 |
10A |
UWB (Ultra Wide Band) UNIT UWB MASTER UWB SLAVE BDC (Body Domain Controller) TOUCH HANDLE DRV TOUCH HANDLE PASS |
|
FUSE38 |
MODULE5 |
10A |
VESS (Virtual Engine Sound System) AAF (Active Air Flap) |
|
FUSE39 |
WIPER FRT2 |
7.5A |
Front Wiper |
|
FUSE40 |
AIR BAG1 |
10A |
ISCM (Intergrated Safety Control Module) |
|
FUSE41 |
USB CHARGER1 |
10A |
USB CHARGER (DRV SEAT) USB CHARGER (PASS SEAT) |
|
FUSE42 |
RESERVE |
10A |
Not Used |
|
FUSE43 |
S/HEATER FRT |
25A |
Front SEAT Heater/Vent |
|
FUSE44 |
P/WINDOW LH |
25A |
Power Window FRT/REAR LH |
|
FUSE45 |
MODULE7 |
7.5A |
BDC (Body Domain Controller) |
|
FUSE46 |
SPARE |
10A |
SPARE |
|
FUSE47 |
RESERVE |
25A |
Not Used |
|
FUSE48 |
RESERVE |
25A |
Not Used |
|
FUSE49 |
USB CHARGER2 |
20A |
USB charger |
|
FUSE50 |
MODULE3 |
10A |
ADAS Driving ECU (Advanced Driver Assistance System Driving ECU) Front Radar Front View Camera DCU (Data Connectivity Unit) ADAS Parking ECU (Advanced Driver Assistance System Parking ECU) Rear Corner Radar Front Corner Radar |
|
FUSE51 |
P/SEAT DRV |
30A |
Drv Power Seat |
|
FUSE52 |
P/WINDOW RH |
25A |
Power Window FRT/REAR RH |
|
FUSE53 |
RESERVE |
10A |
Not Used |
|
FUSE54 |
DOOR LOCK |
20A |
Door Lock/Unlock Actuator CDM (Charge Door Module) Actuator |
|
FUSE55 |
USB CHARGER3 |
25A |
USB CHARGER (DRV SEAT) USB CHARGER (PASS SEAT) |
|
FUSE56 |
MODULE6 |
10A |
Power Window Switch DRV Drv Power Seat |
|
FUSE57 |
START |
7.5A |
BDC (Body Domain Controller) VPC (Vehicle Platform Controller) |
|
FUSE58 |
AMP |
30A |
EXTernal Amplifier (HARMAN) |
|
FUSE59 |
P/WINDOW DRV |
15A |
Power window Motor DRV |

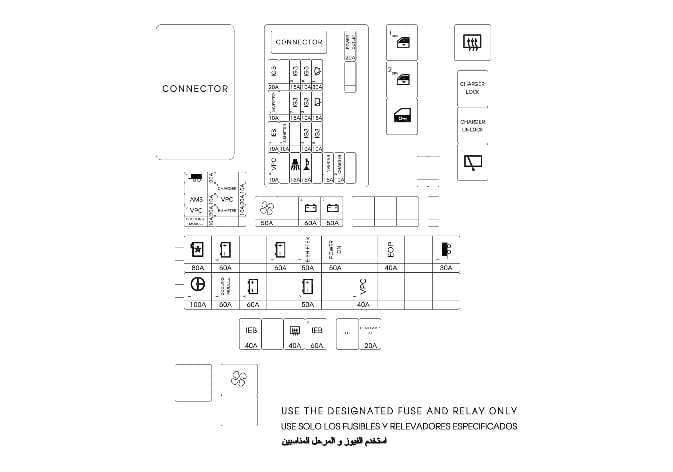

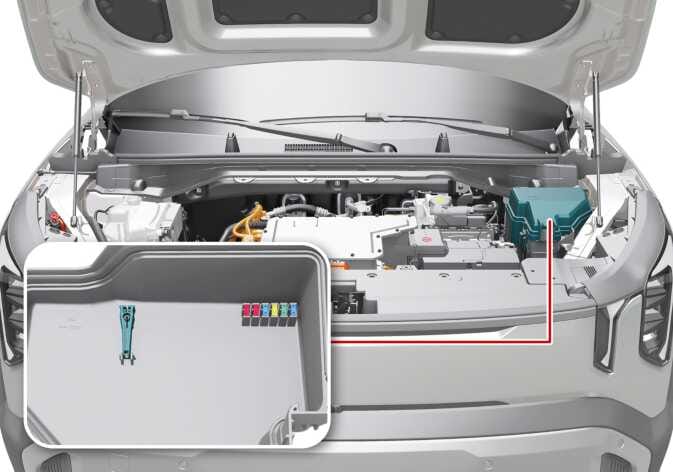

Motor compartment fuse panel
 N_QVe27_B12_025_1_E |
|
No |
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|---|
|
G14_1_1 |
IEB1 |
S/B LP 40A |
IEB (Integrated Electric Brake) |
|
G14_1_2 |
RESERVE |
S/B LP 60A |
Not Used |
|
G14_1_3 |
REAR HEATED |
S/B LP 40A |
REAR HEATED |
|
G14_1_4 |
IEB2 |
S/B LP 60A |
IEB (Integrated Electric Brake) |
|
G15_1_1 |
HEAD LAMP LH |
S/B M 20A |
HEAD LAMP LH |
|
G15_1_2 |
HEAD LAMP RH |
S/B M 20A |
HEAD LAMP RH |
|
G13_1_1 |
MDPS1 |
MULTI 100A |
MDPS (Motor Driven Power Steering) |
|
G13_1_2 |
COOLING MODULE1 |
MULTI 60A |
COOLING MODULE |
|
G13_1_3 |
B+3 |
MULTI 60A |
PDC (Power-net Domain Controller) B+ - FUSE LIST: BMS1, P/SEAT DRV, P_WDW DRV, S/HEATER FRT, BMS2, P_WDW LH, P_WDW RH, SBCM DRV, SBCM PASS, DCU, E-SHIFTER4, MODULE8 |
|
G13_1_4 |
RESERVE |
MULTI 60A |
Not Used |
|
G13_1_5 |
B+5 |
MULTI 50A |
PDC (Power-net Domain Controller) B+ - FUSE LIST: MODULE5, AIR BAG2, MODULE6, SUNROOF, USB CHARGER2 |
|
G13_1_6 |
RESERVE |
MULTI 40A |
Not Used |
|
G13_1_7 |
VPC1 |
MULTI 40A |
VPC (Vehicle Platform Controller) |
|
G13_1_8 |
RESERVE |
MULTI 40A |
Not Used |
|
G13_1_9 |
RESERVE |
MULTI 40A |
Not Used |
|
G13_1_10 |
RESERVE |
MULTI 30A |
Not Used |
|
G12_1_1 |
COOLING FAN |
MULTI 80A |
COOLING FAN |
|
G12_1_2 |
B+6 |
MULTI 60A |
PE_JB (PCB_BLOCK) B+ FUSE LIST: IG3_1, IG3_2, IG3_3, IG3_4, IG3_5, IG3_6 |
|
G12_1_3 |
RESERVE |
MULTI 60A |
Not Used |
|
G12_1_4 |
B+1 |
MULTI 60A |
PDC (Power-net Domain Controller) B+ - IPS (Head Lamp, Frt Turn Signal, High Mounted Stop Lamp, Brake Lamp, Rear Fog Lamp, Interior Tail Lamp, Interior Lamp, Steering Wheel Warmer) |
|
G12_1_5 |
E-SHIFTER1 |
MULTI 50A |
SBW Lever (Shift By Wire Lever) |
|
G12_1_6 |
POWER ON |
MULTI 50A |
PDC (Power-net Domain Controller) ACC <IG1 > PDC (Power-net Domain Controller) IG1 FUSE LIST: AIR BAG1, A/BAG IND, E-SHIFTER5, CLUSTER, BDC2, MDPS2, MODULE2, MODULE3, MODULE4 <IG2 > FUSE LIST: A/C, WASHER, MODULE7 IPS: Haptic Steering Wheel <ACC > FUSE LIST: USB CHARGER1, MODULE1 |
|
G12_1_7 |
RESERVE |
MULTI 40A |
Not Used |
|
G12_1_8 |
EOP |
MULTI 40A |
EOP (Electric Oil Pump) |
|
G12_1_9 |
RESERVE |
MULTI 40A |
Not Used |
|
G12_1_10 |
TRAILER1 |
MULTI 30A |
TRAILER |
|
G8_1_1 |
TRAILER2 |
MICRO 20A |
TRAILER |
|
G8_1_2 |
RESERVE |
MICRO 10A |
Not Used |
|
G8_2_1 |
RESERVE |
MICRO 10A |
Not Used |
|
G8_2_2 |
CHARGER1 |
MICRO 10A |
CHARGER LOCK/UNLOCK |
|
G8_3_1 |
AMS |
MICRO 10A |
BATTERY SENSOR |
|
G8_3_2 |
VPC2 |
MICRO 20A |
VPC (Vehicle Platform Controller) |
|
G8_4_1 |
VPC3 |
MICRO 20A |
VPC (Vehicle Platform Controller) |
|
G8_4_2 |
E-SHIFTER2 |
MICRO 10A |
SBW Lever (Shift By Wire Lever) |
|
G8_5_1 |
COOLING MODULE2 |
MICRO 10A |
COOLING MODULE |
|
G8_5_2 |
RESERVE |
MICRO 10A |
Not Used |
|
G9_1_1 |
BLOWER |
S/B LP 50A |
BLOWER |
|
G9_1_2 |
RESERVE |
S/B LP 60A |
Not Used |
|
G9_1_3 |
B+4 |
S/B LP 60A |
PDC (Power-net Domain Controller) B+ - FUSE LIST: MULTIMEDIA1, MEMORY1, MEMORY2, BDC1, BRAKE SW, CCU, USB_CHARGER3, DR LOCK, TAILGATE OPEN - IPS (LO_ShortTermLoad: SEAT HEATED, SRC, CDU, ADAS_DRV, FRT_C_RADAR) |
|
G9_1_4 |
B+2 |
S/B LP 50A |
PDC (Power-net Domain Controller) B+ - IPS (Head Lamp, Frt Turn Signal Lamp, Rear Turn Signal Lamp, Exterior Tail Lamp, Brake Lamp, Back-up Lamp) |
|
G10_1_1 |
RESERVE |
S/B M 20A |
Not Used |
|
G10_1_2 |
RESERVE |
S/B M 20A |
Not Used |
|
G10_1_3 |
RESERVE |
S/B M 20A |
Not Used |
|
G7_1_1 |
RESERVE |
MICRO 10A |
Not Used |
|
G7_1_2 |
RESERVE |
MICRO 10A |
Not Used |
|
G11_1_1 |
RESERVE |
MICRO 10A |
Not Used |
|
FUSE NUMBER |
RESERVE |
Fuse Rating |
Circuit Protected |
|---|---|---|---|
|
FUSE 1 |
POWER OUTLET |
MICRO 20A |
Front Power Outlet |
|
FUSE 2 |
RESERVE |
MICRO 20A |
Not Used |
|
FUSE 3 |
WIPER FRT1 |
MICRO 30A |
Front Wiper |
|
FUSE 4 |
IG3 6 |
MICRO 10A |
VPC (Vehicle Platform Controller) |
|
FUSE 5 |
IG3 2 |
MICRO 15A |
EOP (Electric Oil Pump) |
|
FUSE 6 |
RESERVE |
MICRO 20A |
Not Used |
|
FUSE 7 |
IG3 1 |
MICRO 20A |
PTC Heater ccNC (connected car Navigation Cockpit) ATCU (Air Temperature Control) CONT ACTIVE INCAR USB CHARGER ATCU (Air Temperature Control) |
|
FUSE 8 |
WIPER RR |
MICRO 15A |
Rear Wiper |
|
FUSE 9 |
IG3 3 |
MICRO 10A |
E-Shifter |
|
FUSE 10 |
IG3 7 |
MICRO 15A |
VCMS (Vehicle Charge Management System) ICCU (Integrated Charging Control Unit) |
|
FUSE 11 |
RESERVE |
MICRO 15A |
Not Used |
|
FUSE 12 |
INVERTER2 |
MICRO 10A |
INVERTER |
|
FUSE 13 |
IG3 5 |
MICRO 10A |
BMS (Battery Management System) |
|
FUSE 14 |
IG3 4 |
MICRO 10A |
E_COMP (Electric Compressor) Coolant Module Cooling fan Refrigerant System Module |
|
FUSE 15 |
RESERVE |
MICRO 7.5A |
Not Used |
|
FUSE 16 |
E-SHIFTER3 |
MICRO 10A |
SBW Lever (Shift By Wire Lever) |
|
FUSE 17 |
IEB3 |
MICRO 10A |
IEB (Integrated Electric Brake) |
|
FUSE 18 |
RESERVE |
MICRO 10A |
Not Used |
|
FUSE 19 |
CHARGER2 |
MICRO 10A |
VCMS (Vehicle Charge Management System) ICCU (Integrated Charging Control Unit) |
|
FUSE 20 |
INVERTER1 |
MICRO 15A |
INVERTER |
|
FUSE 21 |
RESERVE |
MICRO 10A |
Not Used |
|
FUSE 22 |
HORN |
MICRO 15A |
HORN |
|
FUSE 23 |
B/ALARM HORN |
MICRO 15A |
B/ALARM HORN |
|
FUSE 24 |
RESERVE |
MICRO 10A |
Not Used |
|
FUSE 25 |
VPC4 |
MICRO 10A |
VPC (Vehicle Platform Controller) |
|
NO |
RESERVE |
TYPE |
Load |
|---|---|---|---|
|
G16_1_1 |
RESERVE |
3725 MINI 4P |
Not Used |
|
G17_1_1 |
BLOWER |
H/C MICRO 4P |
Blower Motor |
|
G17_2_1 |
RESERVE |
H/C MICRO 5P |
Not Used |
|
G4_1_1 |
P/WINDOW DRV1 |
H/C MICRO 5P |
P/WINDOW DRV Non Safety Motor (UP) |
|
G4_2_1 |
P/WINDOW DRV2 |
H/C MICRO 5P |
P/WINDOW DRV Non Safety Motor (Down) |
|
G4_3_1 |
DEAD LOCK |
H/C MICRO 5P |
Deadlock ACTR |
|
G5_1_1 |
REAR HEATED |
3725 MINI 4P |
REAR HEATED |
|
G6_1_1 |
CHARGER LOCK |
H/C MICRO 5P |
Charge Door LOCK |
|
G6_2_1 |
CHARGER UNLOCK |
H/C MICRO 5P |
Charge Door UNLOCK |
|
G6_3_1 |
WIPER RR |
H/C MICRO 5P |
Rear Wiper |
