Replacing motor room fuse

Replacing blade/cartridge type fuses

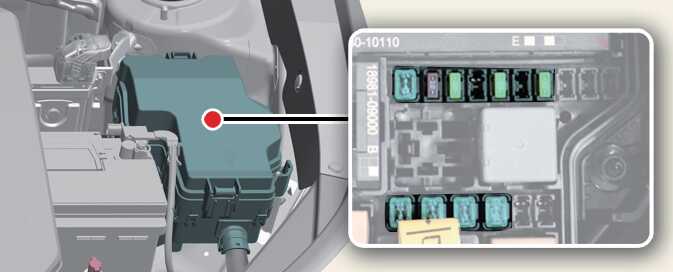

OSG2EV071008
Operation

  1. Turn the vehicle and all other switches off.

  2. Remove the fuse panel cover by pressing the tab and pulling the cover up.

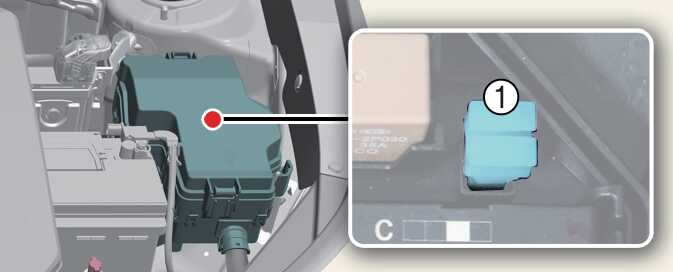

    When the blade type fuse is disconnected, remove it by using the clip (1) designed for changing fuses located in the motor room fuse. Upon removal, securely insert reserve fuse of equal quantity.

    OSG2EV0710060

  3. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the motor compartment fuse panel.

  4. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult a professional workshop. Consult an authorized Kia dealer.
