Replacing relay

OSG2EV071023

  1. Turn the vehicle and all other switches off.

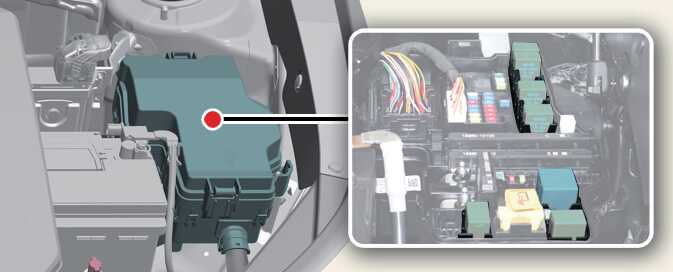

  2. Remove the fuse panel cover by pressing the tab and pulling the cover up.

  3. Replace the relay with a new one of the same rating.

  4. Reinstall in the reverse order of removal.

  5. If it fits loosely, consult a professional workshop. Consult an authorized Kia dealer.

CAUTION

  • After checking the fuse panel in the motor compartment, securely install the fuse panel cover through the audible clicking sound. If not, electrical failures may occur from water contact.

  • Visually inspect the battery cap for secure closing. If the battery cap is not securely latched, the electrical system may be damaged to due influx of moisture into the system.

NOTE

  • The electronic system may not function correctly even when the motor room and internal fuse box's individual fuses are not disconnected. In such case the cause of the problem may be disconnection of the main fuse (BFT type), which is located inside the positive battery terminal (+) cap. Since the main fuse is designed more intricately than other parts, visit a professional workshop. Visit an authorized Kia dealer.

  • If the multi fuse is blown, consult a professional workshop. Consult an authorized Kia dealer.
