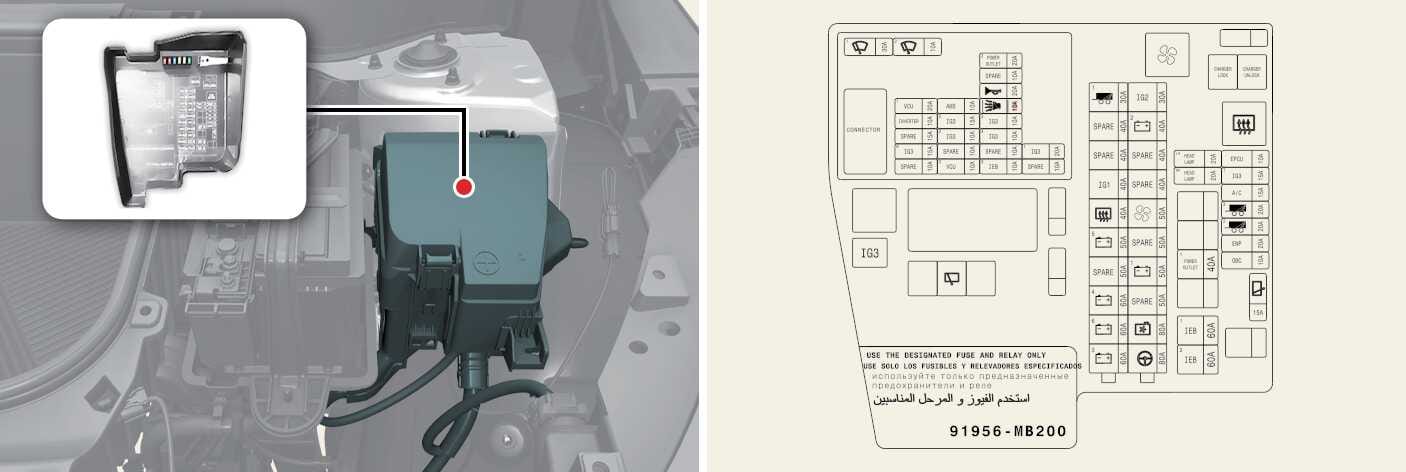

Motor compartment fuse panel
Circuit (P/R Junction Block)
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|
|---|---|---|---|
|
MULTI FUSE-1 |
MDPS |
80A |
MDPS Unit (Motor Driven Power Steering Unit) |
|
C/FAN |
80A |
Cooling Fan Motor |
|
|
SPARE |
50A |
Not Used |
|
|
PDC B+1 |
50A |
PDC Junction Block (IPS2,IPS3,IPS4,IPS5,IPS6,IPS7) |
|
|
SPARE |
50A |
Not Used |
|
|
BLOWER |
50A |
Blower Relay |
|
|
SPARE |
40A |
Not Used |
|
|
SPARE |
40A |
Not Used |
|
|
PDC B+2 |
40A |
PDC Junction Block (IPS9,IPS11,IPS12) |
|
|
IG2 |
30A |
PCB Block (IG2 Relay) |
|
|
MULTIFUSE-2 |
PDC B+3 |
60A |
PDC Junction Block (Fuse: CHARGE, POWER TAILGATE, P/SEAT DRIV, P/SEAT PASS, S/HEATER FRT, BATTERY MANAGEMENT2, P/WINDOW RH, P/WINDOW LH, SBCM DRIV, SBCM PASS, WIRELESS DCU, BDC1, E-SHIFTER1, MODULE8) |
|
B+6 EMS1 |
60A |
PCB Block (IG3 Main Relay, Fuse: AMS, HORN, B/ALARM, INVERTER, VCU1, WIPER1, WIPER2) |
|
|
PDC B+4 |
60A |
PDC Junction Block (Long Term Latch Relay, IPS13, Fuse: MULTIMEDIA, MEMORY1, MEMORY2, CHILD LOCK, BDC1, BRAKE SW, MODULE9,CCU, S/HEATER RR LH, S/HEATER RR RH, DR LOCK, TAILGATE OPEN) |
|
|
SPARE |
50A |
Not Used |
|
|
B+5 |
50A |
PDC Junction Block (Fuse: AMP, ADAS DRV, A/BAG2, MODULE10, SUNROOF1, SUNROOF2) |
|
|
RR HTD |
40A |
Rear heater |
|
|
IG1 |
40A |
PCB Block (IG1 Relay) |
|
|
SPARE |
40A |
Not Used |
|
|
SPARE |
40A |
Not Used |
|
|
TRAILER1 |
30A |
TRAILER |
|
|
Fuse |
IEB2 |
60A |
IEB UNIT (Integrated Electronic Brake Module) |
|
IEB1 |
60A |
IEB UNIT (Integrated Electronic Brake Module) |
|
|
P/OUTLET1 |
40A |
Front Power Outlet (Console) |
|
|
H/LAMP_LH |
20A |
Head Lamp Module LH |
|
|
TRAILER2 |
20A |
TRAILER |
|
|
EPCU |
10A |
Rear inverter |
|
|
A_CON |
15A |
Air Conditioning |
|
|
IG3_7 |
15A |
CHARGER LOCK/UNLOCK RLY |
|
|
TRAILER3 |
20A |
TRAILER |
|
|
EWP |
20A |
Electronic Water Pump |
|
|
OBC |
10A |
On Board Charger |
|
|
H/LAMP_RH |
20A |
Head Lamp Module RH |
|
|
RR_WIPER |
15A |
Rear Wiper |
|
PCB Block
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|
|---|---|---|---|
|
FUSE |
PDC_IG3_1 |
20A |
PDC Junction Block (IG3_1, IG3_2, IG3_3) |
|
IG3 2 |
10A |
Front Inverter, VCU (Vehicle Control Unit) |
|
|
IG3 3 |
10A |
On Board Charger |
|
|
IG3 4 |
10A |
Electric Compressor |
|
|
IG3 5 |
15A |
Electronic Battery Water Pump |
|
|
IG3 6 |
15A |
Electronic Motor Water Pump |
|
|
HORN |
20A |
HORN |
|
|
INVERTER |
10A |
Front Inverter |
|
|
VCU1 |
20A |
VCU (Vehicle Control Unit) |
|
|
WIPER1 |
30A |
PCB Block (Wiper Main Relay) |
|
|
WIPER2 |
10A |
Front Wiper |
|
|
SPARE |
10A |
Not Used |
|
|
AMS |
10A |
12V Battery Sensor |
|
|
P/OUTLET2 |
20A |
Front Power Outlet (Console) |
|
|
VCU2 |
10A |
VCU (Vehicle Control Unit) |
|
|
IEB3 |
10A |
IEB UNIT (Integrated Electronic Brake Module) |
|
Relay
|
Relay Name |
TYPE |
|---|---|
|
BLOWER |
MINI |
|
Rear HTD |
MINI |
|
Rear WIPER |
MICRO |
|
IG3 |
MICRO |
|
CHARGER LOCK RLY |
MICRO |
|
CHARGER UNLOCK RLY |
MICRO |
