LCD display modes

The LCD display provides 5 modes. You can switch modes by pressing the Mode button.

Mode

Driving Assist

Trip Computer

Turn By Turn (TBT)*

User Settings

Information

Master Warning

Up/Down

Forward Collision-Avoidance Assist

Lane Keeping Assist

Blind-Spot Collision-Avoidance Assist*

Smart Cruise Control*

Lane Following Assist

Drive Information

Route Guidance

Driver Assistance*

Driving force distribution (AWD) *

The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.

Driver Attention Warning

Since Refueling

Destination Info

Cluster

TPMS

Intelligent Speed Limit Assist*

Accumulated Info

Lights*

AUTO STOP*

Digital Speedometer *

Door*

Convenience*

Units

Language

Reset

The information provided may differ depending on which functions are applicable to your vehicle.

: if equipped

NOTE

Keep the engine running when configuring the display settings to prevent the battery from discharging.

Trip computer mode

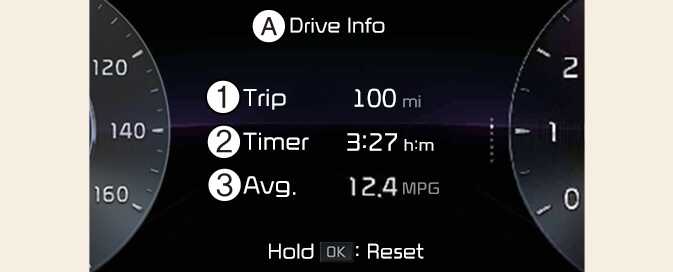

ONQ5A043113

A: Drive info

  1. Accumulated trip distance

  2. Total driving time

  3. Average fuel efficiency

The trip computer mode displays information related to vehicle driving parameters including fuel economy, tripmeter information and timer.

For more details, refer to Trip information (trip computer).

Turn By Turn (TBT) mode

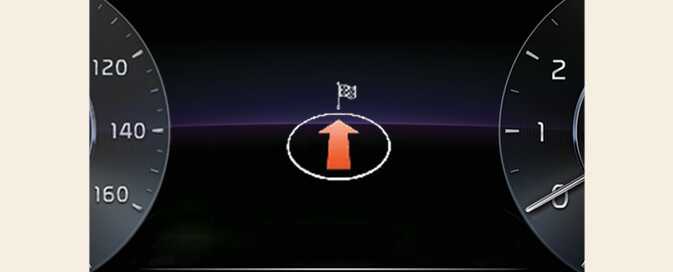

ONQ5031455N

This mode displays the state of the navigation.

Driving Assist mode

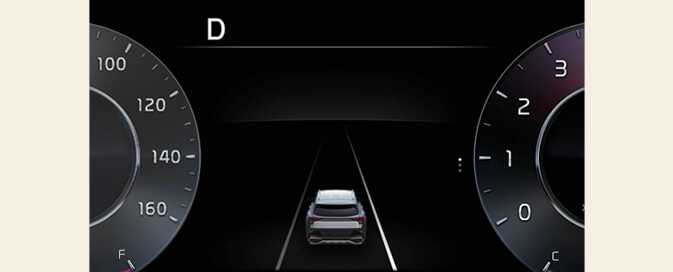

ONQ5031487N

This mode displays the state of:

  • Lane Safety

  • Smart Cruise Control

  • Driver Attention Warning

Information mode

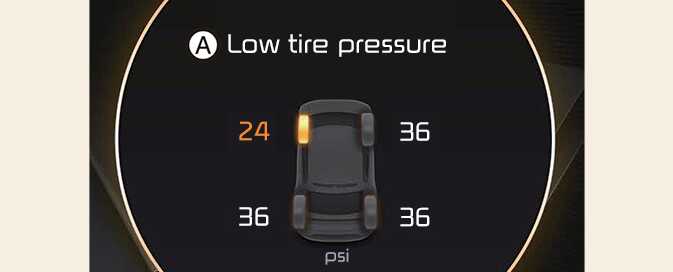

OCV041126L

A: Low tire pressure

This mode displays the state of:

  • Speedometer

  • Engine temperature

  • Tire pressure

  • AWD traction: (if equipped)

Tire pressure status

This mode displays information related to Tire Pressure.

For more details, refer to Tire Pressure Monitoring System (TPMS).

Master warning mode

ONQ5031140N

This warning light informs the driver the following situations.

  • LED headlamp malfunction

  • Lamp malfunction

  • High Beam Assist malfunction: (if equipped)

At this time, a Master Warning icon ( ) will appear beside the User Settings icon ( ), on the LCD display. If the warning situation is solved, the master warning light will be turned off and the Master Warning icon will disappear.

User settings mode

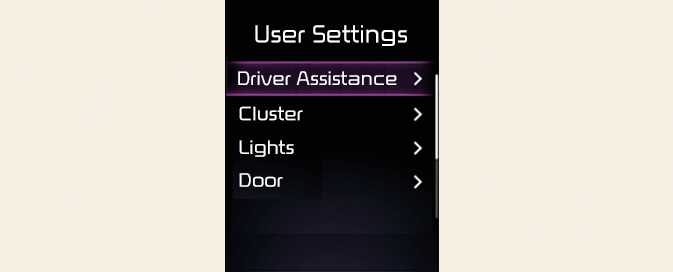

ONQ5031372L

In this mode, you can change the settings of the instrument cluster, doors, lamps, etc.

  1. Driver Assistance

  2. Cluster

  3. Lights

  4. Sound

  5. Door

  6. Convenience

  7. Service Interval

  8. Units

  9. Reset

The information provided may differ depending on which functions are applicable to your vehicle.

1. Driver Assistance

Items

Explanation

Speed Limit*

  • Speed Limit Offset

To adjust the Speed Limit Offset

  • Speed Limit Assist/Speed Assist Warning/Off

To select the function of Intelligent Speed Limit Assist

For more details, refer to Intelligent Speed Limit Assist (ISLA).

Warning Timing

  • Standard/Late

To select the Warning Timing

Warning Methods

  • Warning Volume (High/Medium/Low/Off)

To adjust the Warning Volume

  • Haptic Warning

To activate or deactivate Haptic Warning

  • Lane Safety Audible Warning Off

To activate or deactivate Lane Safety Audible Warning

For more details, refer to Lane Keeping Assist (LKA).

Driver Attention Warning

  • Leading Vehicle Departure Alert

  • Inattentive Driving Warning

To activate or deactivate Driver Attention Warning

For more details, refer to Driver Attention Warning (DAW).

Forward Safety

To adjust Forward Collision-Avoidance Assist.

  • Active Assist/Warning Only/Off

To select the functions

For more details, refer to Forward Collision-Avoidance Assist (FCA) (Front Camera Only), Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

Lane Safety

To adjust Lane Keeping Assist

  • Assist/Warning Only/Off

To select the functions

For more details, refer to Lane Keeping Assist (LKA).

Blind-Spot Safety

  • Blind-Spot View

  • Safe Exit Warning

To activate or deactivate Safe Exit Warning.

For more details, refer to Safe Exit Warning (SEW).

  • Active Assist/Warning Only/Off

For more details, refer to Blind-Spot Collision-Avoidance Assist (BCA).

Parking Safety

  • Parking Distance Warning Auto On

  • Rear Cross-Traffic Safety

To activate or deactivate Rear Cross-Traffic Collision-Avoidance Assist.

  • Rear Active Assist / Rear Warning Only /Off

For more details, refer to Rear Cross-Traffic Collision-Avoidance Assist (RCCA).

For more details, refer to Reverse Parking Collision-Avoidance Assist (PCA).

The information provided may differ depending on which systems are applicable to your vehicle.

2. Cluster

Items

Explanation

Theme Selection

  • Link to Drive Mode

  • Theme A/Theme B/Theme C/Dynamic

Wiper/Lights Display

Activate

Traffic Signs

Activate

Icy Road Warning

Activate

Cluster Voice Guidance Volume

  • 0~3 Level

Welcome Sound

Activate
3. Lights

Items

Explanation

Illumination

  • 1~20 Level

To adjust the instrument cluster illumination.

One Touch Turn Signal

  • Off: The one touch turn signal function will be deactivated.

  • 3, 5, 7 flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly.

For more details, refer to Lighting.

Headlamp Delay

If this item is checked, the headlamp delay function will be activated.

High Beam Assist

If this item is checked, High Beam Assist will be activated.

The information provided may differ depending on which functions are applicable to your vehicle.

4. Door

Items

Explanation

Automatically Lock

  • Enable on shift (for Automatic transmission): All doors will be automatically locked if the vehicle is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position.

    (With the Engine ON, it is activated.)

  • Enable on speed (for Automatic transmission): All doors will be automatically locked when the vehicle speed exceeds 9.3 mph (15 km/h)

  • Off: The auto door unlock operation will be canceled.

If the setting is changed while the vehicle is in motion, the changed setting may not immediately operate.

Automatically Unlock

  • On shift to P (for Automatic transmission): All doors will be automatically unlocked if the gear is shifted from R (Reverse), N (Neutral), or D (Drive position to P (Park) position. (With the Engine ON, it is activated.)

  • Vehicle Off: All doors will be automatically unlocked when the ignition key is removed from the ignition switch or the ENGINE START/STOP button is set to the OFF position.

  • Off: The auto door unlock operation will be canceled.

2 Press Unlock

If this item is checked, the two press unlock will be activated. Press the door unlock button once to unlock the driver's door, and press the button once more within 4 seconds to unlock the rest of the doors.

Power Liftgate

If this item is checked, Power Liftgate will be activated.

Power Liftgate Opening Speed

  • Normal/Fast

To adjust the power liftgate speed.

Power Liftgate Opening Height

  • Level 1/Level 2/Level 3/Full Open/User Height Setting

To select the height.

For more details, refer to Power liftgate.

Smart Liftgate

To activate or deactivate the Smart Liftgate.

For more details, refer to Smart Liftgate with Auto Open.

The information provided may differ depending on which systems are applicable to your vehicle.

5. Sound

Items

Explanation

Welcome Sound

If this item is checked, the welcome sound function will be activated.
6. Convenience

Items

Explanation

Seat Easy Access

  • Off/Normal/Extended

To select the seat movement

Rear Occupant Alert

If this item is checked, the Rear Occupant Alert (ROA) display will be activated.

Welcome Light

  • On Door Unlock/On Driver Approach

To select the welcome mirror/light function.

Welcome Mirror/Light

If this item is checked, Welcome Mirror/Light will be activated.

Wireless Charging System

Activate

Auto Rear Wiper (in R)

If this item is checked, the Auto Rear Wiper will be activated when the front wiper is On and the gear is selected in R (Reverse).

The information provided may differ depending on which functions are applicable to your vehicle.

7. Units

Items

Explanation

Speedometer Unit

  • mph, km/h

To select the Speedometer unit.

Fuel Economy Unit

  • US gallon, UK gallon

To select the Fuel economy unit.

For more details, refer to Trip information (trip computer).

Temperature Unit

  • °F/°C

To select the Temperature unit.

Tire Pressure Unit

  • psi, kPa, bar

To select the Tire Pressure Unit

The information provided may differ depending on which functions are applicable to your vehicle.

8. Language

Items

Explanation

Language

To select the language.
9. Reset

Items

Explanation

Reset

You can reset the menus in the User Settings mode. All menus in the User Settings mode are reset to factory settings, except language and service interval.
