Replacing engine compartment fuse
-
Turn the ignition switch and all other switches off.
-
Remove the fuse panel cover by pressing the tab and pulling the cover up.
-
Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.
-
Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, we recommend that you consult a professional workshop. Kia recommends to visit an authorised Kia dealer/service partner.
After checking the fuse panel in the engine compartment, securely install the fuse panel cover through the audible clicking sound.
If not, electrical failures may occur from water contact.
Main fuse (Multi fuse)
If the multi fuse is blown, it must be removed as follows:
-
Turn the ignition switch and all other switches off.
-
Disconnect the negative battery cable.
-
Remove the nuts shown in the picture above.
-
Replace the fuse with a new one of the same rating.
-
Reverse these steps to reinstall the multi fuse.
If the multi fuse is blown, consult a professional workshop. Kia recommends to consult an authorised Kia dealer/service partner.

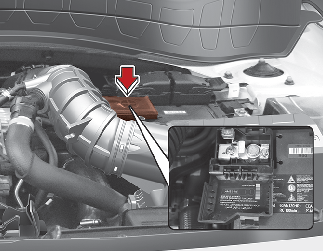

Battery fuse
If the battery fuse is blown, it must be removed as follows:
-
Disconnect the negative battery cable.
-
Remove the nuts shown in the picture above.
-
Replace the fuse with a new one of the same rating.
-
Reinstall in the reverse order of removal.
If the battery fuse is blown, consult a professional workshop. Kia recommends to consult an authorised Kia dealer/service partner.

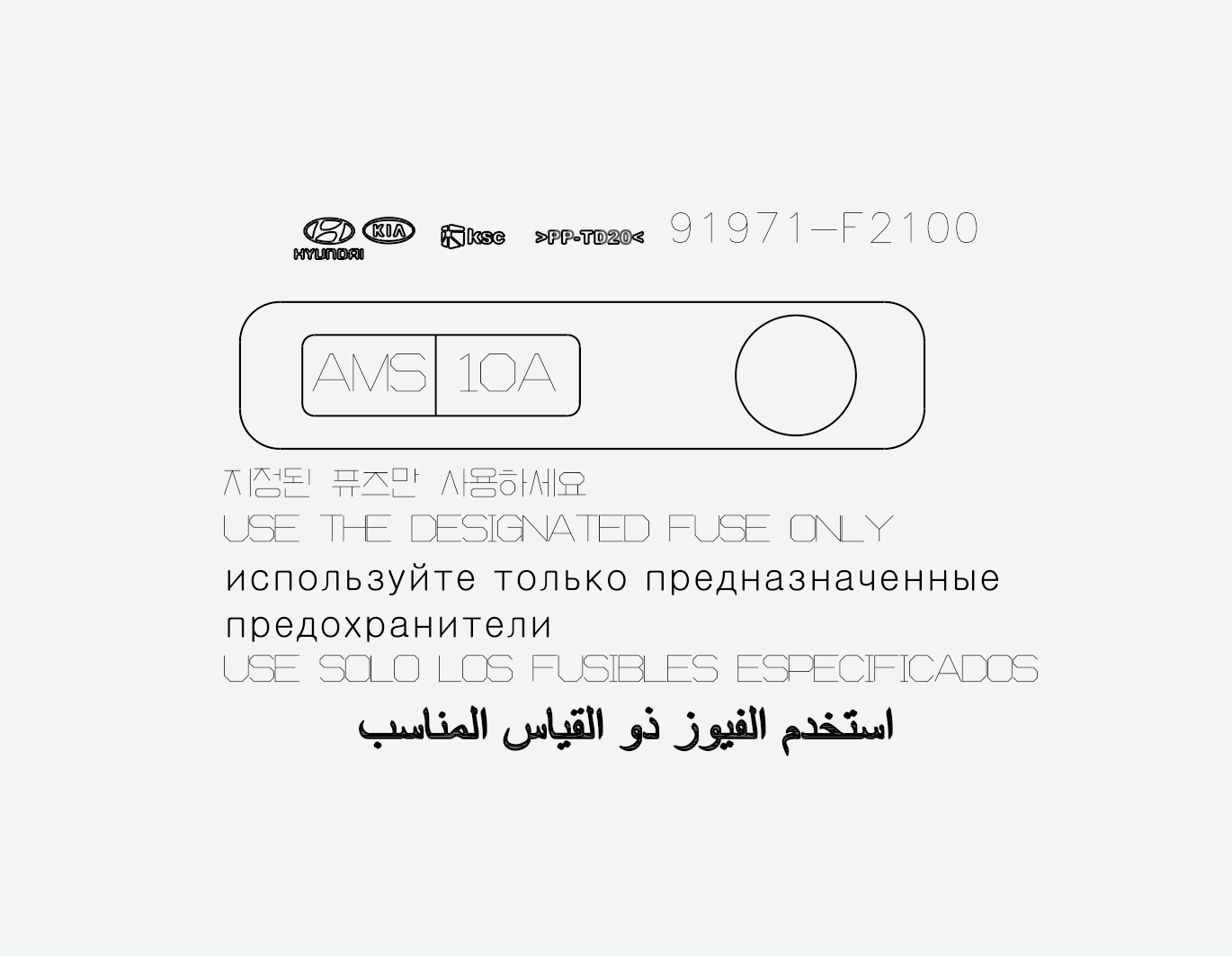

Visually inspect the battery cap for secure closing. If the battery cap is not securely latched, the electrical system may be damaged to due influx of moisture into the system.
Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

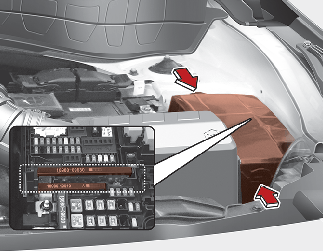

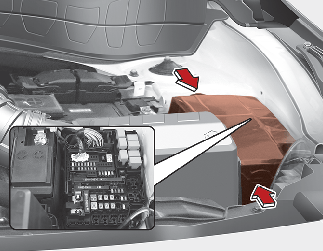

Driver's side fuse panel
Refer to the following table for a description of the fuse.

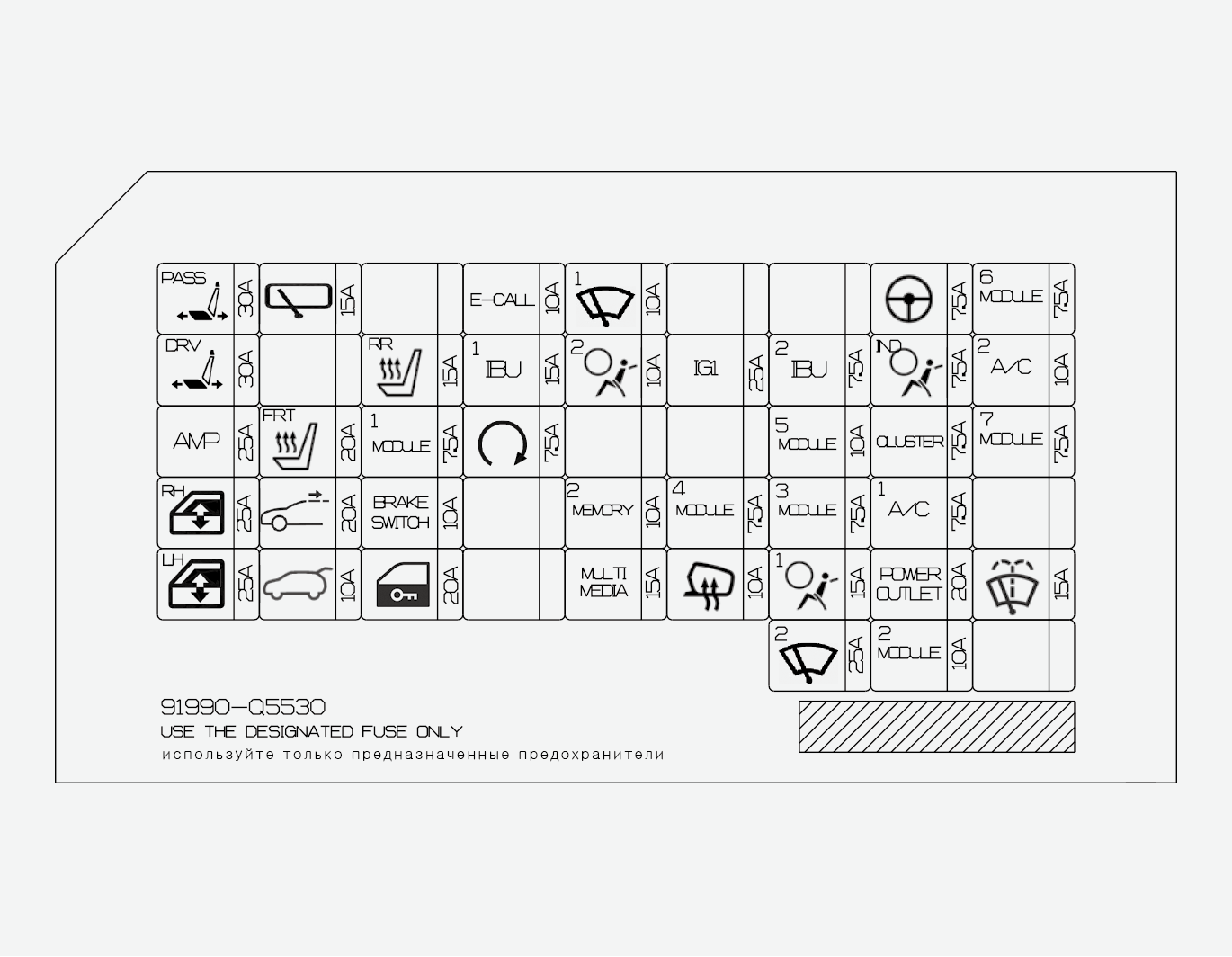

Instrument panel (Driver’s side fuse panel)
|
Fuse Name |
Symbol |
Fuse rating |
Circuit Protected |
|---|---|---|---|
|
P/SEAT (PASS) |
 |
30 A |
Passenger Seat Manual Switch |
|
P/SEAT (DRV) |
 |
30 A |
IMS (Driver’s memory seat) Control Module, Driver Seat Manual Switch |
|
AMP |
 |
25 A |
AMP (Amplifier) |
|
P/WDW RH |
 |
25 A |
Power Window Right Handle Side Relay, Driver Safety Power Window Module |
|
P/WDW LH |
 |
25 A |
Power Window Left Handle Side Relay, Driver Safety Power Window Module |
|
WIPER RR |
 |
15 A |
Rear Wiper Motor, ICM (Integrated Circuit Module) Relay Box (Rear Wiper Relay) |
|
S/HEATER FRT |
 |
20 A |
Front Air Ventilation Seat Module Front Seat Warmer Module |
|
SUNROOF |
 |
20 A |
Sunroof Unit |
|
TAIL GATE OPEN |
 |
10 A |
Tail Gate Relay |
|
S/HEATER RR |
 |
15 A |
Rear Seat Warmer Module |
|
MODULE 1 |
 |
7.5 A |
Hazard Switch, Data Link Connector, Passenger Power Window Switch, Power Window Main Switch, Key Solenoid, Power Tailgate, Telematics, IMS (Driver’s memory seat) Control Module |
|
BRAKE SWITCH |
 |
10 A |
Stop Lamp Switch, IBU (Integrated Body Control Unit) |
|
DOOR LOCK |
 |
20 A |
Door Lock Relay, Door Unlock Relay |
|
E-CALL |
 |
10 A |
E-Call Unit |
|
IBU1 |
 |
15 A |
IBU (Integrated Body Control Unit) |
|
START |
 |
7.5 A |
[Manual Transmission & Without Smart Key] Ignition Lock & Clutch Switch, IBU (Integrated Body Control Unit), Transmission Range Switch, Engine compartment fuse panel Relay (Start Relay) [With Burglar Alarm & Without Smart Key] ICM (Integrated Circuit Module) Relay Box (Burglar Alarm Relay) [Automatic Transmission] Transmission Range Switch [IVT] Position Switch |
|
WIPER FRT1 |
 |
10 A |
IBU (Integrated Body Control Unit), ECM (Engine Control Module) / PCM (Power train Control Module) |
|
AIR BAG 2 |
 |
10 A |
SRS (Supplemental Restraint System) Control Module |
|
MEMORY 2 |
 |
10 A |
ICM (Integrated Circuit Module) Relay Box (Outside Mirror Folding/Unfolding Relay), Instrument Cluster, Air Conditioner Control Module, Head-Up Display, Crash Pad Switch, Mood Lamp |
|
MULTIMEDIA |
 |
15 A |
Audio, Infotainment System Head Unit |
|
IG1 |
 |
25 A |
PCB Block (Fuse Name - ABS3, EPB3, TCU3, ECU5) |
|
MODULE 4 |
 |
7.5 A |
Front Radar, Clutch Sensor, IBU (Integrated Body Control Unit), Crash Pad Switch, AWD ECM (Engine Control Module), Electronic Parking Brake Switch, Front View Camera |
|
HEATED MIRROR |
 |
10 A |
ECM (Engine Control Module), PCM (Power train Control Module), Air Conditioner Control Module, Driver/Passenger Power Outside Mirror |
|
IBU2 |
 |
7.5 A |
IBU (Integrated Body Control Unit) |
|
MODULE 5 |
 |
10 A |
Electro Chromic Mirror, Wireless Charger, Automatic Transmission Shift Lever Indicator, Console Switch Left Handle Side Relay, Audio, Infotainment System Head Unit, Air Conditioner Control Module, Crash Pad Switch, AMP (Amplifier), Front Air Ventilation Seat Control Module, E-Call Unit, Head Lamp Left Handle Side/Right Handle Side, Rear Seat Warmer Module, Front Seat Warmer Module, Overhead Console Lamp, Data Link Connector, IMS (Driver’s memory seat) Control Module |
|
MODULE 3 |
 |
7.5 A |
Stop Lamp Switch, Automatic Transmission Shift Lever |
|
AIR BAG1 |
 |
15 A |
SRS (Supplemental Restraint System) Control Module |
|
FRT WIPER2 |
 |
25 A |
PCB Block (Front Wiper (Low) Relay), Front Wiper Motor |
|
MDPS |
 |
7.5 A |
MDPS (Motor Driven Power Steering) Unit |
|
A/BAG IND |
 |
7.5 A |
Overhead Console Lamp, Instrument Cluster |
|
CLUSTER |
 |
7.5 A |
Instrument Cluster, Head-Up Display |
|
A/C1 |
 |
7.5 A |
Engine Room Junction Block (Blower Relay), Air Conditioner Control Module |
|
POWER OUTLET |
 |
20 A |
Front Power Outlet #2 (USB), Joint Connector (JM04) |
|
MODULE 2 |
 |
10 A |
USB Charger, IBU (Integrated Body Control Unit), Audio, Infotainment System Head Unit, Sound Mood Lamp, Front Power Outlet #2, AMP (Amplifier), Power Outside Mirror Switch, E-Call Unit, Driver/Passenger Door Mood Lamp, ICM (Integrated Circuit Module) Relay Box (Power Outlet Relay), EPB Switch |
|
MODULE 6 |
 |
7.5 A |
IBU (Integrated Body Control Unit) |
|
A/C2 |
 |
10 A |
[Auto Air Conditioner] Blower Motor, Engine Room Junction Block (Blower Relay) [Manual Air Conditioner] Blower Resistor, Air Conditioner Control Module |
|
MODULE 7 |
 |
7.5 A |
Front Deicer Box (Front Deicer Left Handle Side/Right Handle Side Relay) |
|
WASHER |
 |
15 A |
Multifunction Switch |

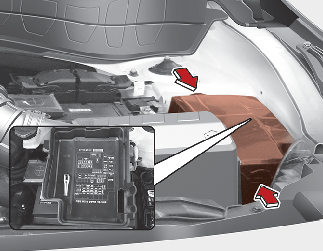

Engine compartment fuse panel
Refer to the following table for a description of the fuse.

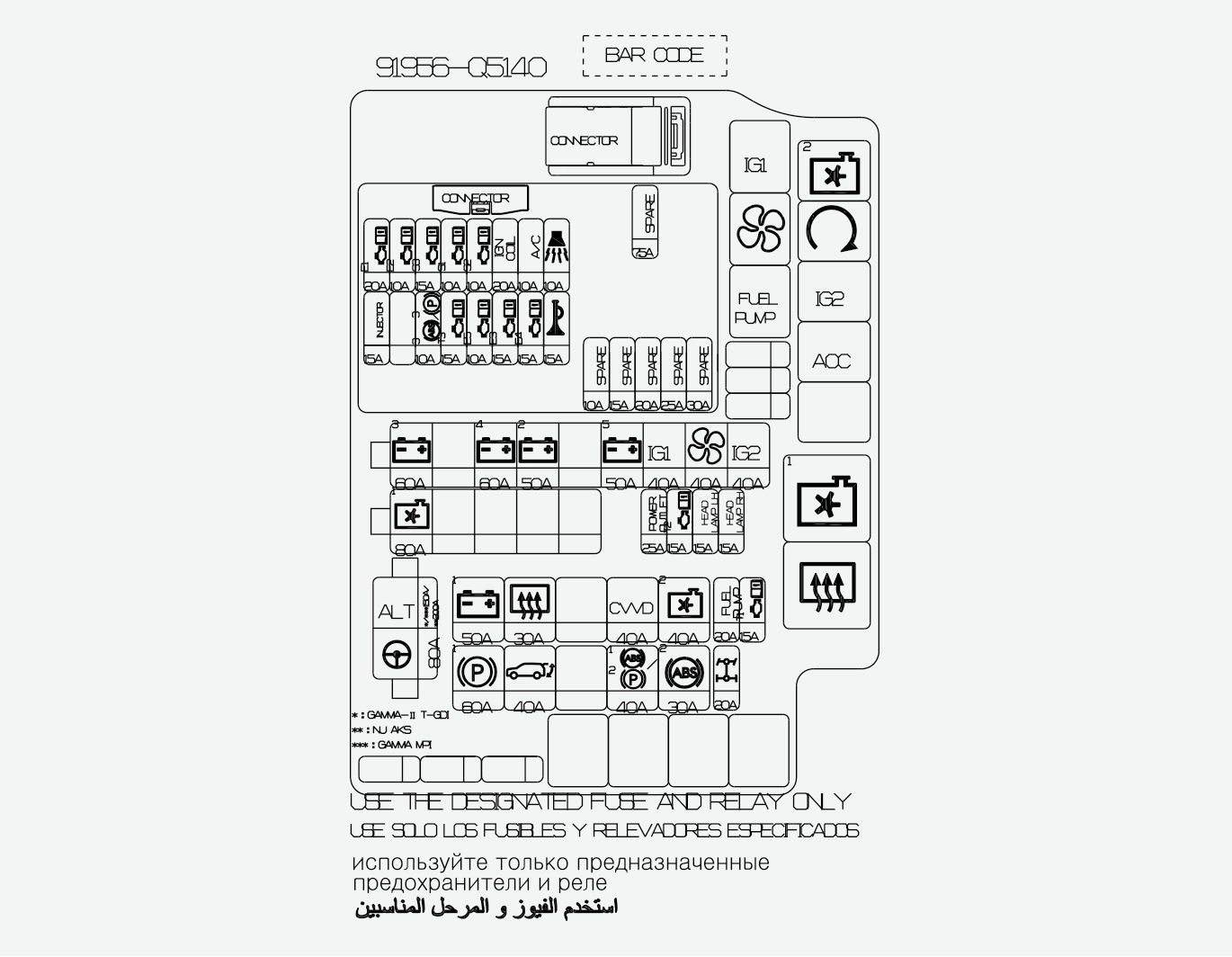

Engine compartment fuse panel (Battery terminal cover)
Engine room compartment fuse panel
|
Fuse Name |
Symbol |
Fuse rating |
Circuit Protected |
|---|---|---|---|
|
ALT |
 |
150 A |
Alternator, Engine Room Junction Block (Fuse Name - EPB1, Power tailgate, ABS1/EPB2, ABS2, AWD) |
|
200 A |
|||
|
MDPS*1 |
|
80 A |
MDPS (Motor Driven Power Steering) Unit |
|
B+3 |
 |
60 A |
Instrument Panel Junction Block (IPS1, IPS2, IPS3, IPS7, IPS10, IPS13, IPS16, IPS20) |
|
B+4 |
 |
60 A |
Instrument Panel Junction Block (Fuse Name - P/SEAT (PASS), P/SEAT (DRV), AMP, P/WDW RH, P/WDW LH, S/HEATER FRT, SUNROOF, TAIL GATE OPEN) |
|
B+2 |
 |
50 A |
Instrument Panel Junction Block (IPS4, IPS5, IPS6, IPS8, IPS9, IPS11, IPS12, IPS14) |
|
B+5 |
 |
50 A |
PCB Block (Main Relay, Fuse Name - A/C, B/ALARM HORN, ECU3, ECU4, HORN) |
|
IG1 |
 |
40 A |
[With Smart Key] Engine Room Junction Block (IG1 Relay, ACC Relay) [Without Smart Key] Ignition Switch |
|
BLOWER |
 |
40 A |
Engine Room Junction Block (Blower Relay) |
|
IG2 |
 |
40 A |
[With Smart Key] Engine Room Junction Block (Start Relay, IG2 Relay) [Without Smart Key] Engine Room Junction Block (Start Relay), Ignition Switch |
|
POWER OUTLET |
 |
25 A |
ICM (Integrated Circuit Module) Relay Box (Power Outlet Relay) |
|
TCU2 |
 |
15 A |
[Smartstream G 1.6 T-GDi] TCM (Transmission Control Module) |
|
Head Lamp LH |
HEADLAMP LH |
15A |
Head Lamp Left Handle Side |
|
Head Lamp RH |
HEADLAMP RH |
15A |
Head Lamp Right Handle Side |
|
B+1 |
 |
50 A |
Instrument Panel Junction Block (Long Term Load Auto Cut Relay,Fuse Name - S/HEATER RR, MODULE 1, BRAKE SWITCH, DOOR LOCK, IBU1, AIR BAG 2) |
|
REAR HEATED |
 |
30 A |
Engine Room Junction Block (Rear Defogger Relay) |
|
CVVD |
 |
40 A |
[Smartstream G 1.6 T-GDi] CVVD (Continous Variable Valve Duration) Actuator |
|
COOLING FAN2 |
 |
40 A |
[(Petrol) 1.6 MPI/2.0 MPI] Engine Room Junction Block (Cooling Fan 2 Relay, Cooling Fan 1 Relay) |
|
FUEL PUMP |
 |
20 A |
Engine Room Junction Block (Fuel Pump Relay) |
|
TCU1 |
 |
15 A |
[(Petrol) 1.6 MPI] PCM (Power train Control Module) [Smartstream G 1.6 T-GDi] TCM (Transmission Control Module) [(Petrol) 2.0 MPI] PCM (Power train Control Module) |
|
EPB1 |
 |
60 A |
[ESC] Electronic Stability Control Module |
|
Power tailgate |
 |
40 A |
Power Tailgate Module |
|
ABS1 |
 |
40 A |
[ABS] Anti-lock Brake System Control Module [ESC] Electronic Stability Control Module |
|
EPB2 |
 |
||
|
ABS2 |
 |
30 A |
[ABS] Anti-lock Brake System Control Module [ESC] Electronic Stability Control Module |
|
AWD |
 |
20 A |
AWD ECM (Engine Control Module) |
PCB Block
|
Fuse Name |
Symbol |
Fuse rating |
Circuit Protected |
|---|---|---|---|
|
ECU1 |
 |
20 A |
[(Petrol) 1.6 MPI] PCM (Power train Control Module) / ECM (Engine Control Module) [Smartstream G 1.6 T-GDi] ECM (Engine Control Module) [(Petrol) 2.0 MPI] PCM (Power train Control Module) |
|
ECU2 |
 |
10 A |
[(Petrol) 1.6 MPI] PCM (Power train Control Module) / ECM (Engine Control Module) [Smartstream G 1.6 T-GDi] ECM (Engine Control Module) |
|
SENSOR3 |
 |
15 A |
Oxygen Sensor (Up/Down) |
|
SENSOR1 |
 |
10 A |
[All] Oil Control Valve #1, Oil Control Valve #2, Air Conditioner Relay, Purge Control Solenoid Valve, Variable Oil Pump Solenoid [(Petrol) 1.6 MPI] Engine Room Junction Block (Cooling Fan 2 Relay, Cooling Fan 1 Relay) [Smartstream G 1.6 T-GDi] Cooling Fan Motor, RCV (Recirculation Valve Control) Control Solenoid Valve [(Petrol) 2.0 MPI] Oil Control Valve #3, Engine Room Junction Block (Cooling Fan 2 Relay, Cooling Fan 1 Relay) |
|
SENSOR2 |
 |
10 A |
Engine Room Junction Block (Fuel Pump Relay) |
|
IGN COIL |
 |
20 A |
Ignition Coil #1~#4 [(petrol) 1.6 MPI] Condenser |
|
A/C |
 |
10 A |
Air Conditioner Relay |
|
B/ALARM HORN |
 |
10 A |
Burglar Alarm Horn Relay |
|
INJECTOR |
 |
15 A |
[(Petrol) 1.6 MPI/2.0 MPI] Injector #1~#4 |
|
ABS3 |
 |
10 A |
ABS (Anti-lock Brake System) |
|
EPB3 |
 |
[ESC] Electronic Stability Control Module |
|
|
TCU3 |
 |
15 A |
[(Petrol) 1.6 MPI] Transmission Range Switch [Smartstream G 1.6 T-GDi] TCM (Transmission Control Module) |
|
ECU5 |
 |
10 A |
[(Petrol) 1.6 MPI] PCM (Power train Control Module) /ECM (Engine Control Module) [Smartstream G 1.6 T-GDi] ECM (Engine Control Module), CVVD (Continous Variable Valve Duration) Actuator [(Petrol) 2.0 MPI] PCM (Power train Control Module) |
|
ECU3 |
 |
15 A |
[(Petrol) 1.6 MPI] PCM (Power train Control Module)/ ECM (Engine Control Module) [Smartstream G 1.6 T-GDi] ECM (Engine Control Module) [(Petrol) 2.0 MPI] PCM (Power train Control Module) |
|
ECU4 |
 |
15 A |
[Smartstream G 1.6 T-GDi] ECM (Engine Control Module) |
|
HORN |
 |
15 A |
Horn Relay |
Refer to the following table for the relay type.
*1: MDPS(Motor Driven Power Steering) is the same as EPS(Electric Power Steering).
Relay
|
Relay Name |
Symbol |
Type |
|---|---|---|
|
IG1 Relay |
 |
MICRO |
|
Blower Relay |
 |
MICRO |
|
Fuel Pump Relay |
 |
MICRO |
|
Cooling Fan 2 Relay |
|
MICRO |
|
Start Relay |
 |
MICRO |
|
IG2 Relay |
 |
MICRO |
|
ACC Relay |
 |
MICRO |
|
Cooling Fan 1 Relay |
 |
MICRO MINI |
|
Rear Defogger Relay |
 |
MICRO MINI |
