Headlamp and front fog lamp aiming (for Europe)
Headlamp aiming
-
Inflate the tyres to the specified pressure and remove any loads from the vehicle except the driver, spare tyre, and tools.
-
The vehicle should be placed on a flat floor.
-
Draw vertical lines (Vertical lines passing through respective head lamp centres) and a horizontal line (Horizontal line passing through centre of head lamps) on the screen.
-
With the head lamp and battery in normal condition, aim the head lamps so the brightest portion falls on the horizontal and vertical lines.
-

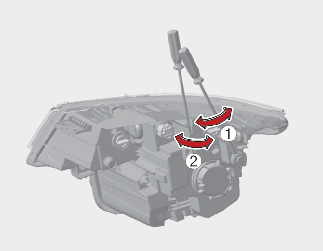

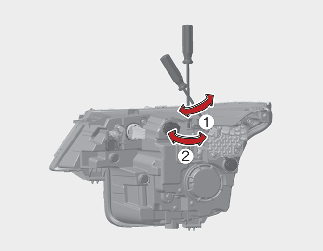

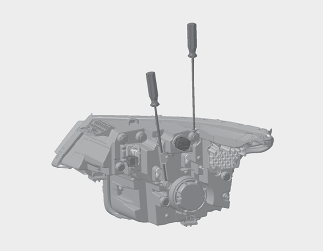

To aim the low and high beams left or right, turn the driver (1) clockwise or counterclockwise. To aim the low and high beams up or down, turn the driver (2) clockwise or counterclockwise.
Front fog lamp aiming
-
The front fog lamp can be aimed as the same manner of the head lamps aiming.
-
With the front fog lamps and battery normal condition, aim the front fog lamps.
-

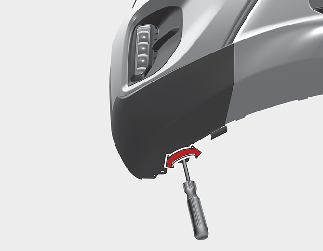

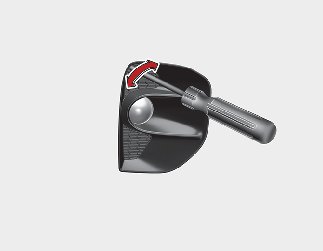

To aim the front fog lamp up or down, turn the driver clockwise or counterclockwise.

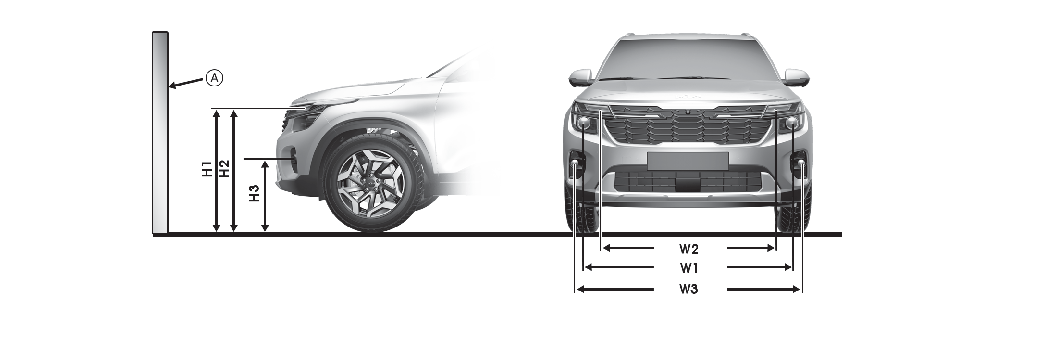

Aiming point
* A: Screen
|
Vehicle condition |
Headlamp - Type A, B |
Headlamp - Type C |
||||||
|---|---|---|---|---|---|---|---|---|
|
Ground height |
Ground between lamps |
Ground height |
Ground between lamps |
|||||
|
Low beam |
High beam |
Low beam |
High beam |
Low beam |
High beam |
Low beam |
High beam |
|
|
H1 |
H2 |
W1 |
W2 |
H1 |
H2 |
W1 |
W2 |
|
|
Without driver [mm (in)] |
751 (29.6) |
751 (29.6) |
1,438 (56.6) |
1,438 (56.6) |
854 (33.6) |
844 (33.2) |
1,373 (54.0) |
1,169 (46.0) |
|
With driver [mm (in)] |
746 (29.4) |
746 (29.4) |
1,438 (56.6) |
1,438 (56.6) |
849 (33.4) |
839 (33.0) |
1,373 (54.0) |
1,169 (46.0) |
|
Vehicle condition |
Fog lamp - Type A (bulb type) |
Headlamp - Type B (LED type) |
||
|---|---|---|---|---|
|
Ground height |
Distance between lamps |
Ground height |
Distance between lamps |
|
|
H3 |
W3 |
H3 |
W3 |
|
|
Without driver [mm (in)] |
475 (18.7) |
1,457 (57.3) |
498 (19.6) |
1,554 (61.1) |
|
With driver [mm (in)] |
470 (18.5) |
1,457 (57.3) |
493 (19.4) |
1,554 (61.1) |
Head lamp low beam (LHD Vehicle)
A: Vehicle axis
B: Vertical line of the left head lamp bulb centre
C: Vertical line of the right head lamp bulb centre
D: Horizontal line of head lamp bulb centre
E: Ground
F: Cut-Off line
-
Turn the low beam on with 1 driver (75 kg) aboard.
-
The cut-off line should be projected in the cut-off line shown in the picture.
-
First, adjust cut-off line to be matched with the horizontal line and then adjust with the vertical line.
-
If head lamp levelling device is equipped, adjust the head lamp levelling device switch with 0 positions.
Head lamp low beam (RHD Vehicle)
A: Vehicle axis
B: Vertical line of the left head lamp bulb centre
C: Vertical line of the right head lamp bulb centre
D: Horizontal line of head lamp bulb centre
E: Ground
F: Cut-Off line
-
Turn the low beam on with 1 driver (75 kg) aboard.
-
The cut-off line should be projected in the cut-off line shown in the picture.
-
First, adjust cut-off line to be matched with the horizontal line and then adjust with the vertical line.
-
If head lamp levelling device is equipped, adjust the head lamp levelling device switch with 0 positions.
Front fog lamp
A: Vehicle axis
B: Vertical line of the left fog lamp bulb centre
C: Vertical line of the right fog lamp bulb centre
D: Horizontal line of fog lamp bulb centre
E: Ground
F: Cut-Off line
G: Upper limit
-
Turn the front fog lamp on without the driver aboard.
-
The cut-off line should be projected in the allowable range (shaded region).
