Engine compartment

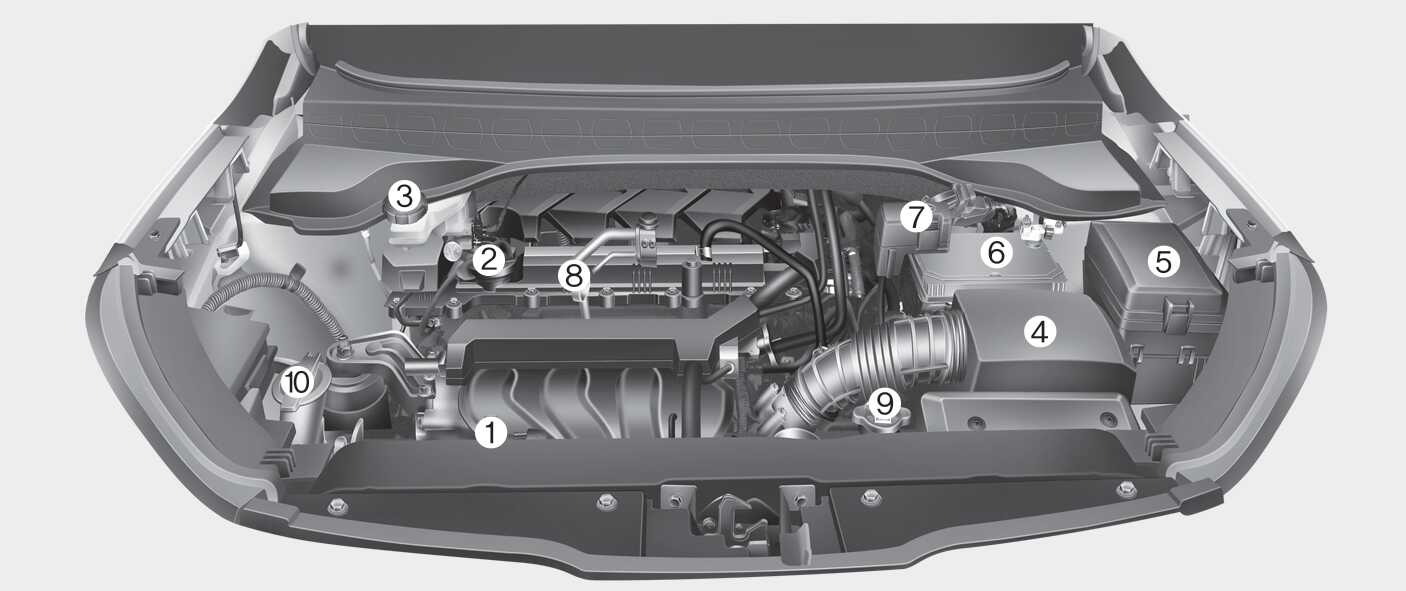

Figure 1. Smartstream G1.5
OQYi071078R

The actual engine room in the vehicle may differ from the illustration.

  1. Engine coolant reservoir Engine coolant

  2. Engine oil filler cap Engine oil and filter

  3. Brake/clutch fluid reservoir Brake/clutch fluid

  4. Air cleaner Air cleaner filter

  5. Engine room fuse block Replacing engine compartment fuse

  6. Negative battery terminal Jump starting, Battery

  7. Positive battery terminal Jump starting, Battery

  8. Engine oil dipstick Checking the engine oil level

  9. Engine coolant reservoir cap If the engine overheats, Engine coolant

  10. Windscreen washer fluid reservoir Washer fluid

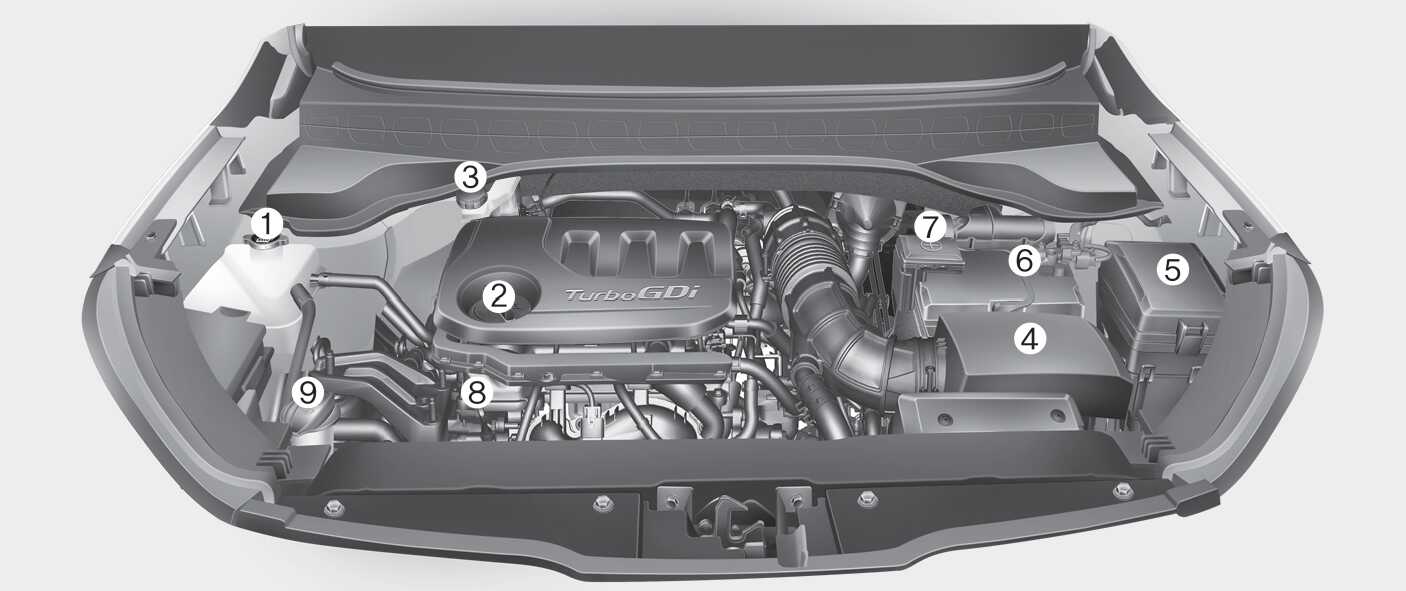

Figure 2. (Petrol) 1.0 T-GDI
OQYi071030R

The actual engine room in the vehicle may differ from the illustration.

  1. Engine coolant reservoir Engine coolant

  2. Engine oil filler cap Engine oil and filter

  3. Brake/clutch fluid reservoir Brake/clutch fluid

  4. Air cleaner Air cleaner filter

  5. Engine room fuse block Replacing engine compartment fuse

  6. Negative battery terminal Jump starting, Battery

  7. Positive battery terminal Jump starting, Battery

  8. Engine oil dipstick Checking the engine oil level

  9. Windscreen washer fluid reservoir Washer fluid
