Automatic climate control system: (if equipped)

The automatic climate control system uses cooling and heating to help maintain a pleasant environment inside the vehicle.

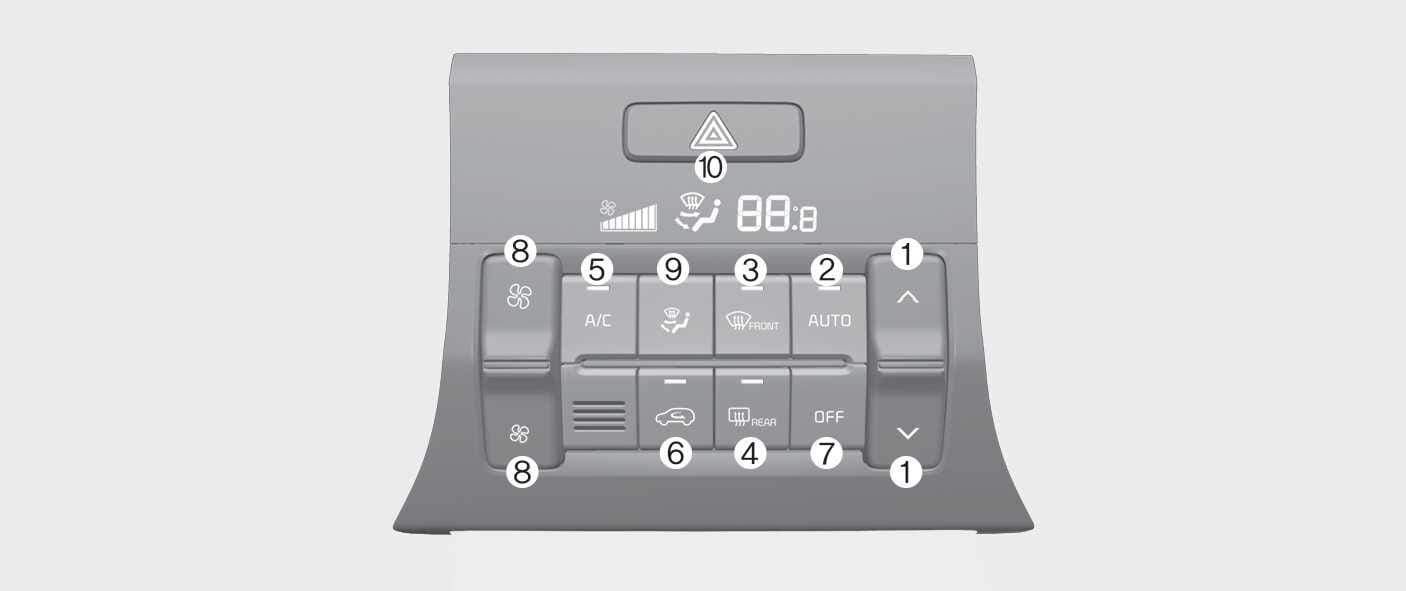

Figure 1. Type A (if equipped)
OQYi040309

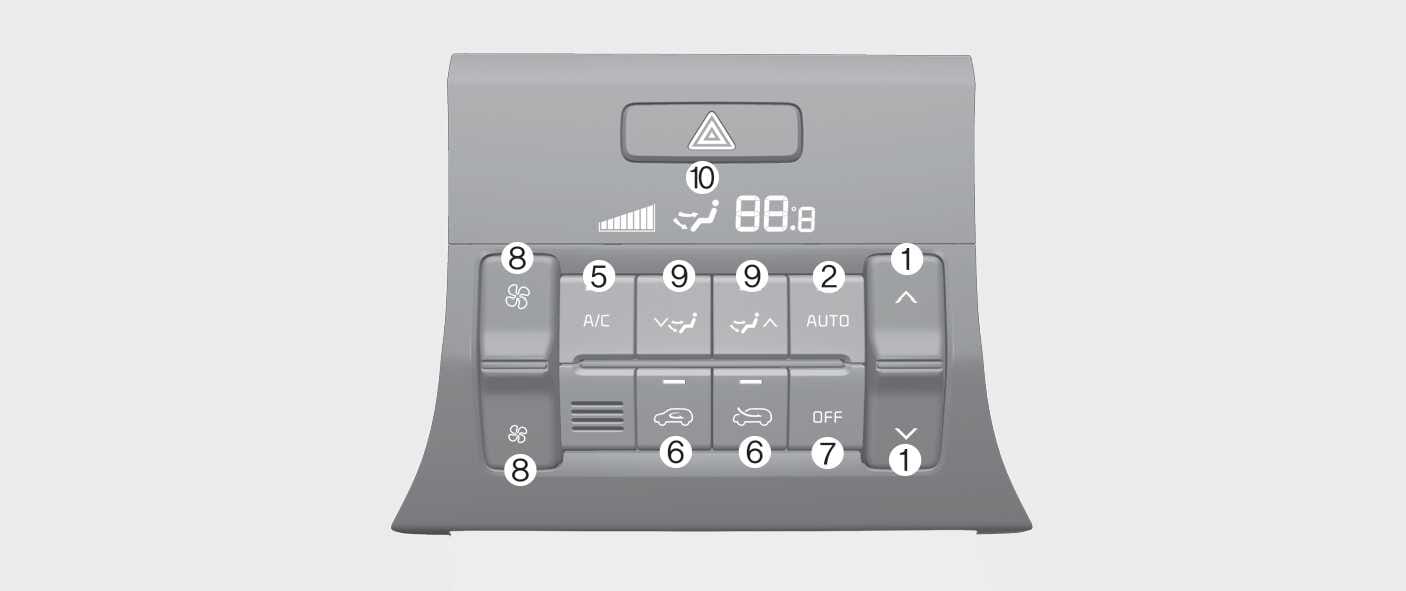

Figure 2. Type B (if equipped)
OQYi040309R

  1. Temperature control button

  2. AUTO (automatic control) button

  3. Front windscreen defroster button

  4. Rear window defroster button

  5. Air conditioning (A/C) button

  6. Air intake control button

  7. OFF button

  8. Fan speed control button

  9. Mode selection button

  10. Climate control display

NOTE

Operating the blower when the ignition switch is in the ON position could cause the battery to discharge. Operate the blower when the engine is running.
