Instrument cluster

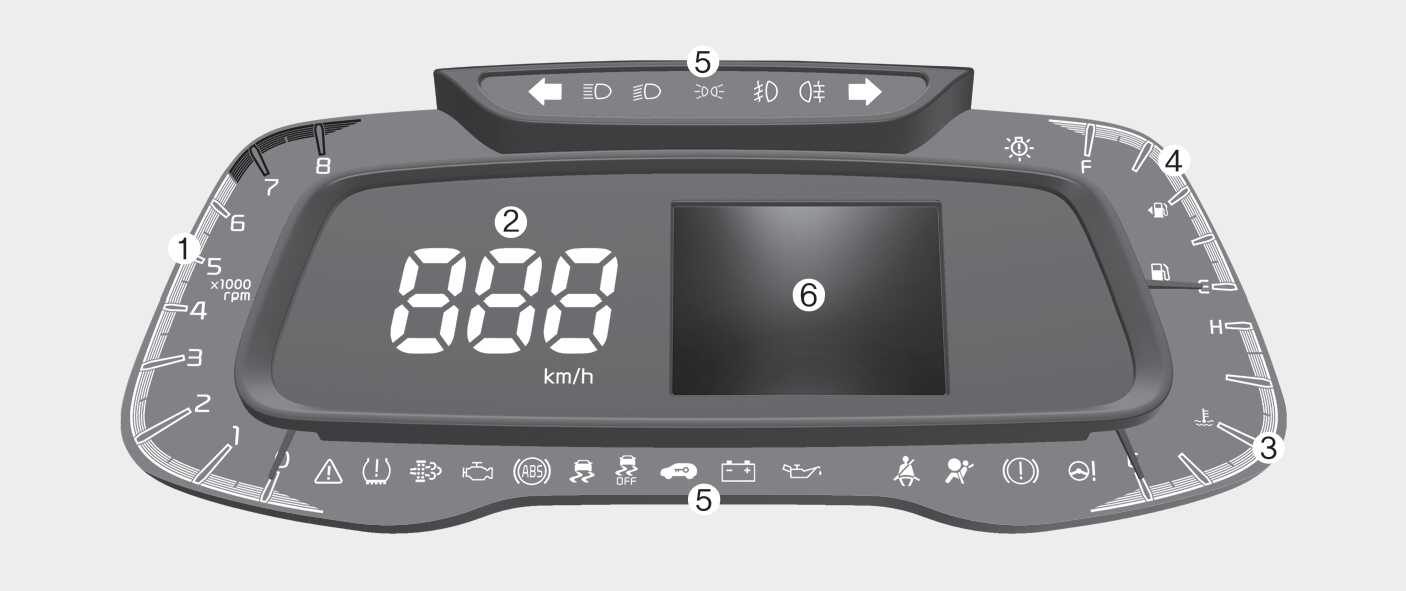

Figure 1. Type A
OQYi040100R

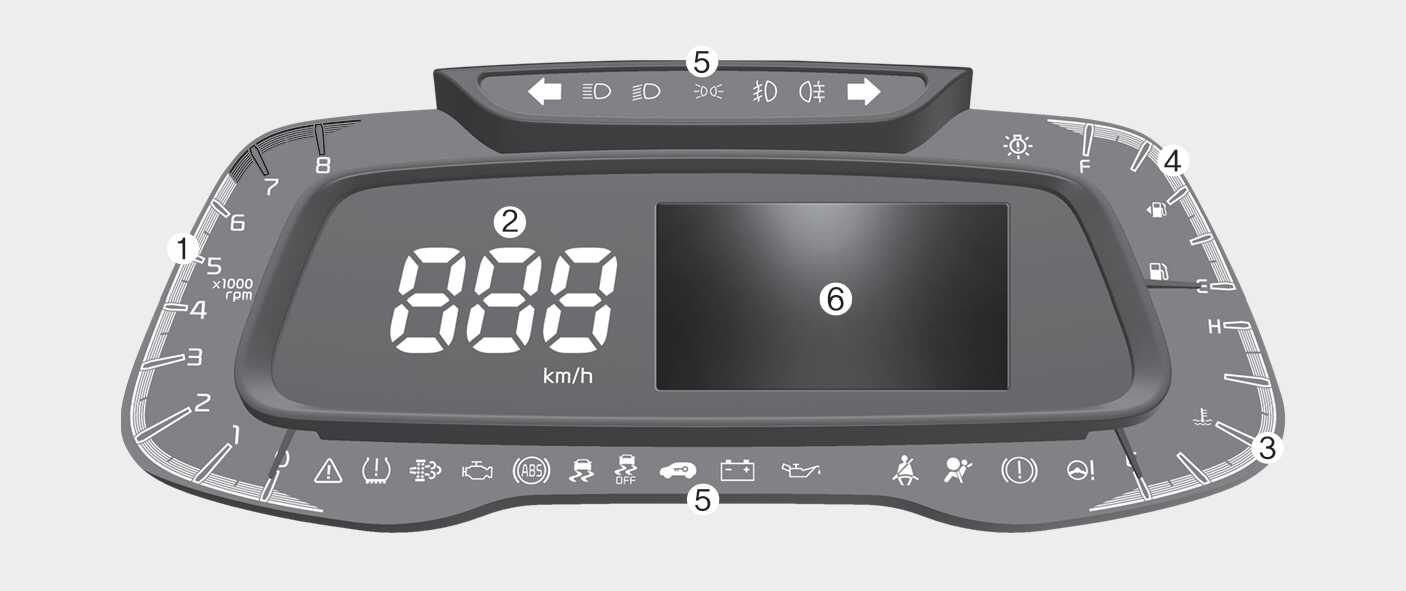

Figure 2. Type B (if equipped)
OQYi040101R

The actual cluster in the vehicle may differ from the illustration.

  1. Tachometer

  2. Speedometer

  3. Engine coolant temperature gauge

  4. Fuel gauge

  5. Warning and indicator lights

  6. LCD display
