Rear Cross-Traffic Collision-Avoidance Assist operation

Rear Cross-Traffic Collision-Avoidance Assist will warn and control your vehicle depending on collision risk level:

  • Collision warning

  • Emergency braking

  • Stopping vehicle and ending brake control

Collision warning

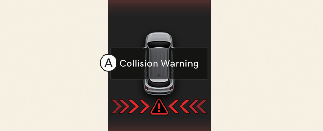

A: Collision Warning

Collision warning will alert you with a warning light on the outside rear-view mirror, a warning message, an audible warning, and steering wheel vibratione.

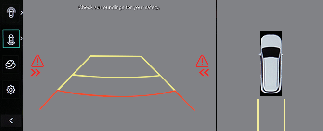

Collision warning will also appear on the infotainment system screen.

Collision warning will operate when all the following conditions are satisfied:

  • The gear is shifted to R (Reverse) while your driving speed is below 5 mph (8 km/h)

  • The approaching vehicle is within approximately 82 ft. (25 m) from the left and right side of your vehicle

  • The speed of the vehicle approaching from the left and right is above 3 mph (5 km/h)

NOTICE

  • If the operating conditions are satisfied, there will be a warning whenever the vehicle approaches from the left or right side even though your vehicle speed is 0 mph (0 km/h).

  • The images and colors on the instrument cluster may differ depending on the instrument cluster type or theme selected from the instrument cluster.

Emergency braking

A: Emergency Braking

Collision warning will alert the driver with a warning light on the outside rear-view mirror, a warning message, an audible warning, and steering wheel vibratione.

Collision warning will also appear on the infotainment system screen.

Emergency braking will be assisted to help prevent collision with approaching vehicles from the left and right.

Emergency braking will operate when all the following conditions are satisfied:

  • The gear is shifted to R (Reverse) while your driving speed is below 5 mph (8 km/h)

  • The approaching vehicle is within approximately 5 ft. (1.5 m) from the left and right side of your vehicle

  • The speed of the vehicle approaching from the left and right is above 3 mph (5 km/h)

WARNING

Brake control ends when the conditions of the approaching vehicle from the rear left or right side are as below:

  • The approaching vehicle is out of the detecting range

  • The approaching vehicle passes behind your vehicle

  • The approaching vehicle does not drive toward your vehicle

  • The approaching vehicle speed slows down

  • You depress the brake pedal with sufficient power

Stopping vehicle and ending brake control

A: Drive carefully

When your vehicle stops due to emergency braking, a warning message will appear on the instrument cluster.

You should depress the brake pedal immediately and check your surroundings.

  • Brake control will end after your vehicle is stopped by emergency braking for approximately 2 seconds.

  • During emergency braking, braking control by Rear Cross-Traffic Collision-Avoidance Assist will automatically cancel when the driver excessively depresses the brake pedal.

WARNING

  • For your safety, change the Settings after parking the vehicle at a safe location.

  • If any other function's warning message is displayed or audible warning is generated, Rear Cross-Traffic Collision-Avoidance Assist's warning message may not be displayed and audible warning may not be heard.

  • You may not hear the warning sound of Rear Cross-Traffic Collision-Avoidance Assist in noisy surroundings.

  • Rear Cross-Traffic Collision-Avoidance Assist may not operate if you apply the brake pedal to avoid collision.

  • During Rear Cross-Traffic Collision-Avoidance Assist operation, your vehicle may stop suddenly injuring passengers and shifting loose objects. Always have seat belts on and keep loose objects secured.

  • Even if there is a problem with Rear Cross-Traffic Collision-Avoidance Assist, your vehicle's basic braking performance will operate properly.

WARNING

  • When Rear Cross-Traffic Collision-Avoidance Assist is operating, its braking control will automatically cancel when you excessively depress the accelerator pedal.

  • Rear Cross-Traffic Collision-Avoidance Assist does not operate in all situations and cannot avoid all collisions.

  • Rear Cross-Traffic Collision-Avoidance Assist may warn you late or may not warn you depending on the road and driving conditions.

  • It is your responsibility to control your vehicle. Do not solely depend on Rear Cross-Traffic Collision-Avoidance Assist. Maintain a safe braking distance, and if necessary, depress the brake pedal to reduce speed or to stop your vehicle.

  • Never deliberately operate Rear Cross-Traffic Collision-Avoidance Assist on people, animals, objects, etc. It may cause serious injury or death.

WARNING

The brake control may not operate properly depending on the status of ESC (Electronic Stability Control).

There will only be a warning when:

  • The ESC (Electronic Stability Control) warning light is on

  • ESC (Electronic Stability Control) is engaged with a different function

NOTICE

  • If braking is assisted by Rear Cross-Traffic Collision-Avoidance Assist, you must immediately depress the brake pedal and check the surroundings.

  • After shifting the gear to R (Reverse), braking control will operate once for left and right vehicle approach.
