Rear View Monitor operation

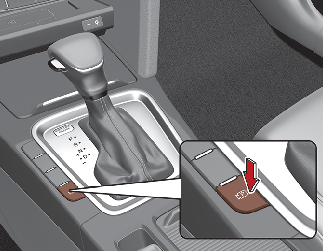

Operation button (except CUV)

Parking/View button

Shortly press the Parking/View button to turn on Rear View Monitor.

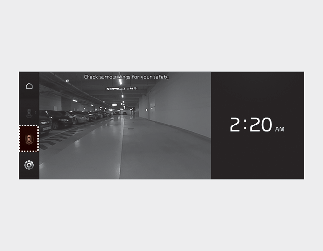

Rear view

For CUV

  • Operating conditions

    Shift the gear to R (Reverse), the image will appear on the screen.

  • Off conditions

    • The rear view cannot be turned off when the gear is in R (Reverse).

    • Shift the gear from R (Reverse) to P (Park), the rear view will turn off.

Except CUV

  • Operating conditions

    • Shift the gear to R (Reverse), the image will appear on the screen.

    • Shortly press the Parking/View button while the gear is in P (Park), the image will be appear on the screen.

  • Off conditions

    • The rear view cannot be turned off when the gear is in R (Reverse).

    • Shortly press the Parking/View button again while the gear is in P (Park) with the rear view will turn off.

    • Shift the gear from R (Reverse) to P (Park), the rear view will turn off.

Extended Rear View Monitor

The rear view will maintain showing on the screen to help you when parking.

For CUV

  • Operating conditions

    Shift the gear from R (Reverse) to N (Neutral) or D (Drive), the rear view will appear on the screen.

  • Off conditions

    • When vehicle speed is above 10 km/h (6 mph), the rear view will turn off.

    • Shift the gear to P (Park), the rear view will turn off.

Except CUV

  • Operating conditions

    Shift the gear from R (Reverse) to N (Neutral) or D (Drive), the rear view will appear on the screen.

  • Off conditions

    • When vehicle speed is above 10 km/h (6 mph), the rear view will turn off.

    • Shift the gear to P (Park), the rear view will turn off.

    • Press the Parking/View button, the rear view will turn off.

Rear View while driving

For CUV

  • Operating conditions

    The ENGINE START/STOP button is ON.

  • Off conditions

    • One of the infotainment system button is pressed.

    • If the gear is shifted to p (park), the function is turned off.

  • When operating

    If the gear is shifted to R (Reverse), while Driving Rear View is displayed on the screen, the screen will change to rear view.

Except CUV

  • Operating conditions

    • The ENGINE START/STOP button is ON.

    • The Parking/View button is pressed when gearshift status is D (Drive), N (Neutral).

  • Off conditions

    • Parking/View button is pressed again.

    • One of the infotainment system button is pressed.

    • If the gear is shifted to p (park), the function is turned off.

  • When operating

    If the gear is shifted to R (Reverse), while Driving Rear View is displayed on the screen, the screen will change to rear view.

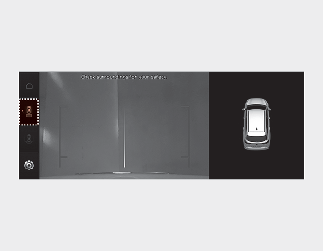

Rear top view

When you touch the () icon, the top view is displayed on the screen and shows the distance from the vehicle in the back of your vehicle while parking.
