Tire Pressure Monitoring System (TPMS) (Type B) (if equipped)
-

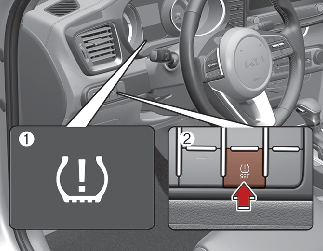

Low Tire Pressure Telltale/TPMS Malfunction Indicator
-
TPMS SET button
-

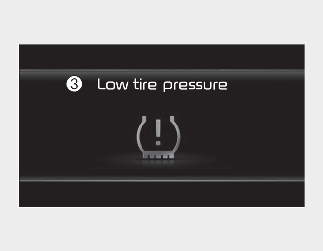

Low Tire Pressure Telltale
(Shown on the LCD display)
The TPMS on this vehicle monitors and compares the rolling radius and rotational characteristics of each wheel and tire while you are driving. And it checks whether any tire is significantly under-inflated.
You should reset the system by pushing the TPMS SET button according to the procedure and store the current tire pressure.
After that, if one or more tires are significantly under-inflated, the low tire pressure indicator illuminates and a message is shown on the cluster.
Also, if there is a malfunction with the TPMS, the TPMS malfunction indicator will illuminate.
