LCD display modes

You can switch modes by pressing the Mode button.

	Mode
	Driving Assist	Trip Computer	Turn By Turn (TBT)*	User Settings ^*1	Information	Master warning
Up/Down	Lane Keeping Assist/Smart Cruise Control/Lane Following Assist*	Drive Info	Route Guidance	Driver Assistance	Driving force distribution (AWD)*	The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.
		Since Refueling	Destination Info	Head-up display*	Tire Pressure*
		Accumulated Info		Cluster
		Digital Speedometer^*2		Lights
				Door
				Convenience
				Units
				Language
				Reset

The information provided may differ depending on which functions are applicable to your vehicle.

*: if equipped

* 1: for Type A cluster

* 2: for Type B cluster

NOTICE

Keep the engine running when configuring the display settings to prevent the battery from discharging.

Driving Assist mode

This mode displays the state of:

Lane Keeping Assist (if equipped)

Smart Cruise Control (if equipped)

Lane Following Assist (if equipped)

* For more details, refer to each system information in More Details, More Details, More Details.

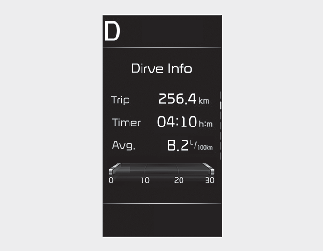

Trip computer mode

The trip computer mode displays information related to vehicle driving parameters including fuel economy, tripmeter information and total driving time.

* For more details, refer to More Details.

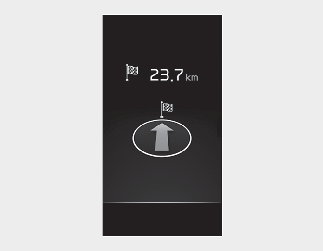

Turn By Turn (TBT) mode (if equipped)

This mode displays the state of the navigation.

Information mode

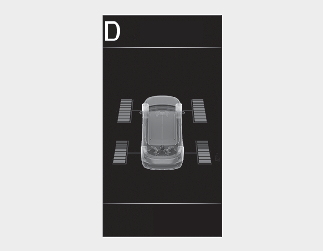

Driving force distribution (AWD) (if equipped)

This mode displays information relatedto Driving force distribution.

* For more details, refer to More Details.

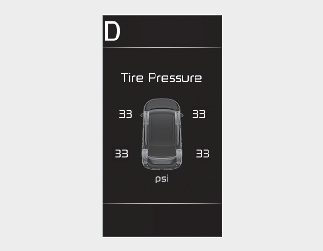

Tire Pressure (if equipped)

This mode displays information related to Tire Pressure.

* For more details, refer to More Details.

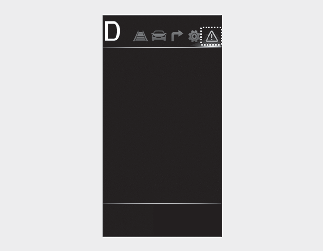

Master warning mode

This warning light informs the driver the following situations.

Forward Collision-Avoidance Assist malfunction*
Forward Collision-Avoidance Assist radar blocked*
Blind-Spot Collision-Avoidance Assist malfunction*
Blind-Spot Collision-Avoidance Assist radar blocked*
High Beam Assist malfunction*
Smart Cruise Control malfunction*
Smart Cruise Control radar blocked*
LED headlamp malfunction*
Lamp malfunction, etc.

At this time, a Master Warning icon () will appear on the LCD display.

If the warning situation is solved, the master warning light will be turned off and the Master Warning icon will disappear.

* : if equipped

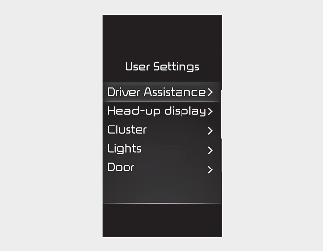

User Settings mode (if equipped)

In this mode, you can change the settings of the instrument cluster, doors, lamps, etc.

Driver Assistance
Head-up display
Cluster
Lights
Door
Convenience
Units
Language
Reset

The information provided may differ depending on which functions are applicable to your vehicle.

1. Driver Assistance (if equipped)

Items	Explanation
Speed limit	Speed limit assist SLW (Speed Limit Warning) Off To select the function. * For more details, refer to More Details.
Warning Volume	High/Medium/Low To select the Warning Volume.
Driver Attention Warning	Leading Vehicle Departure Alert To select the function. * For more details, refer to More Details.
Driving Safety	Forward Safety Forward Safety Warning Timing - Late/Normal To select the function. * For more details, refer to More Details or More Details. Lane Safety To select the function. * For more details, refer to More Details. Blind-Spot Safety To select the function. * For more details, refer to More Details. Safe Exit To select the function. * For more details, refer to More Details.
Parking Safety	Parking Distance Warning Auto On To select the function. * For more details, refer to More Details. Rear Cross-Traffic Safety To select the function. * For more details, refer to More Details.

* The information provided may differ depending on which systems are applicable to your vehicle.

2. Head-Up Display (if equipped)

Items	Explanation
Enable Head-up display	If this item is checked, Head-Up Display will be activated.
Display Height	Adjust the height (1~20) of the HUD image on the HUD screen.
Rotation	Adjust the degree (-5~+5) of the HUD rotation.
Brightness	Adjust the intensity (1~20) of the HUD brightness.
Content Selection	If below items are checked, the items will be activated. Turn by Turn/Traffic Signs/Driving Convenience Info/Blind-Spot Safety Info/Radio, Media Info

* The information provided may differ depending on which systems are applicable to your vehicle.

3. Cluster (if equipped)

Items	Explanation
Cluster Theme	Link to Drive Mode/Theme A/Theme B/Theme C To select the theme of the instrument cluster.
Wiper/Lights Display	To activate or deactivate the wiper/lights display.
Icy Road Warning	To activate or deactivate the icy road warning.
Welcome Sound	To activate or deactivate the welcome sound.

* The information provided may differ depending on which systems are applicable to your vehicle.

4. Lights (if equipped)

Items	Explanation
Illumination	Level 1~20 To select the brightness for the instrument panel illumination.
One Touch Turn Signal	Off: The one touch turn signal function will be deactivated. 3, 5, 7 flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly. * For more details, refer to More Details.
Headlight Delay	If this item is checked, the head lamp delay function will be activated.
High Beam Assist	If this item is checked, High Beam Assist will be activated. * For more details, refer to More Details.

* The information provided may differ depending on which functions are applicable to your vehicle.

5. Door (if equipped)

Items	Explanation
Auto Lock	Enable on Shift : All doors will be automatically locked if the vehicle is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position (with engine ON, it is activated). Enable on speed: All doors will be automatically locked when the vehicle speed exceeds 15 km/h (9.3 mph) Off: The auto door unlock operation will be canceled.
Auto Unlock	On shift to P : All doors will be automatically unlocked if the gear is shifted to the P (Park) position (with engine ON, it is activated). On key out/Vehicle Off (if equipped): All doors will be automatically unlocked when the ENGINE START/STOP button is set to the OFF position or the ignition key is removed from the ignition switch. Off: The auto door unlock operation will be canceled.
Horn Feedback	To activate or deactivate the horn feedback when door is locked with the folding key.
Power Tailgate	To activate or deactivate the Power Tailgate. * For more details, refer to More Details.
Power Tailgate Opening Speed	Fast/Normal To adjust the power tailgate opening speed. * For more details, refer to More Details.
Power Tailgate Opening Height	Full Open/Level 3, 2, 1/User Height Setting To adjust the power tailgate opening height. * For more details, refer to More Details.
Smart Tailgate	To activate or deactivate the smart tailgate. * For more details, refer to More Details.
Remote Window Control	To activate or deactivate the remote window control. * For more details, refer to More Details.

* The information provided may differ depending on which systems are applicable to your vehicle.

6. Convenience (if equipped)

Items	Explanation
Rear Occupant Alert	If this item is checked, the Rear Occupant Alert (ROA) display will be activated. * For more details, refer to More Details.
Service Interval	Enable Service Interval/Adjust Interval/Reset
Welcome Mirror	On door unlock / On driver approach To select the welcome mirror function.

Items

Explanation

Rear Occupant Alert

If this item is checked, the Rear Occupant Alert (ROA) display will be activated.

* For more details, refer to More Details.

Service Interval

Enable Service Interval/Adjust Interval/Reset

Welcome Mirror

On door unlock / On driver approach

To select the welcome mirror function.

* The information provided may differ depending on which functions are applicable to your vehicle.

7. Units (if equipped)

Items	Explanation
Speed Unit	km/h or MPH To select the Speedometer unit.
Temperature Unit	°C/°F To select the Temperature unit.
Fuel Economy Unit	L/100km, km/L To select the Fuel economy unit. * For more details, refer to More Details.
Tire Pressure Unit	psi, kPa, bar To select the Tire Pressure Unit

* The information provided may differ depending on which functions are applicable to your vehicle.

8. Language

Items	Explanation
Language	To select language.

9. Reset

Items	Explanation
Reset	You can reset the menus in the User Settings mode. All menus in the User Settings mode are reset to factory settings, except language and service interval.
