Rear View Monitor operation

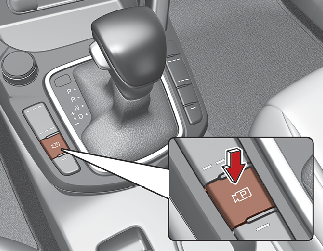

Parking/View button
Press the Parking/View button to turn on Rear View Monitor.
Press the button again to turn off the function.

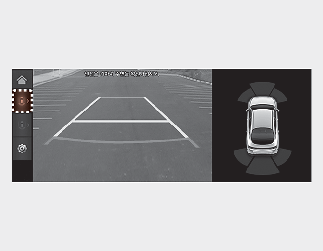

Rear view
-
Shift the gear to R (Reverse), the image will appear on the screen.
-
Press the Parking/View button while the gear is in P (Park), the image will appear on the screen.
-
Pressing the View icon with the Rear top view on the screen.
-
The rear view cannot be turned off when the gear is in R (Reverse).
-
Press the Parking/View button again while the gear is in P (Park) with the rear view on the screen, the rear view will turn off.
-
Shift the gear from R (Reverse) to P (Park), the rear view will turn off.

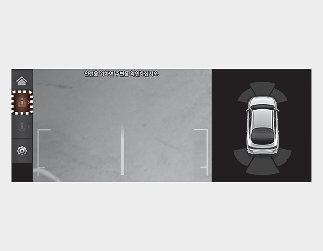

Rear top view
When you touch the (
) icon, the top view is displayed on the screen and shows the distance from the vehicle in the back of your vehicle while
parking.
Extended Rear View Monitor
The rear view will maintain showing on the screen to help you when parking.
-
Shift the gear from R (Reverse) to N (Neutral) or D (Drive), the rear view will appear on the screen.
-
The vehicle speed is below approximately 10 km/h (6 mph).
-
When vehicle speed is above 10 km/h (6 mph), the rear view will turn off.
-
Press the Parking/View button, the rear view will turn off.
-
Shift the gear to P (Park), the rear view will turn off.

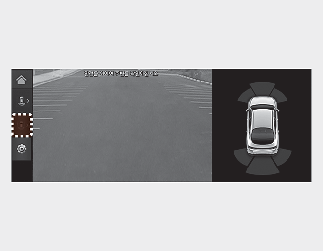

Rear View while driving
The driver is able to check the rear view on the screen while driving, it is to assist with safe driving.
Press the Parking/View button while the gear is in D (Drive) or N (Neutral), the driving rear view will appear on the screen.
-
Press the Parking/View button again, the driving rear view will turn off.
-
Press one of the infotainment system button, the driving rear view will turn off.
-
Shift the gear to P (Park), the driving rear view will turn off.
If the gear is shifted to R (Reverse), while Driving rear view is displayed on the screen, the screen will change to rear view with parking guidance.
