ISG system indicator

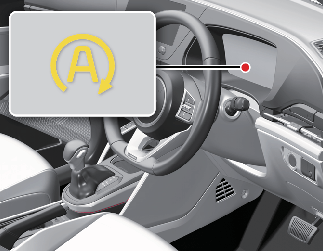

ISG system is indicated by AUTO STOP indicator () on the instrument cluster.

The AUTO STOP display shows the warning message. (if equipped)

LCD warning message

Manual Transmission

A: AUTO Stop is Off. Press clutch pedal and start engine manually

The system may require the engine to manually restart for some reason. At this time, restart the vehicle manually by depressing the clutch with the gear in neutral.

Intelligent Variable Transmission/Automatic Transmission/DualClutch Transmission/IntelligentManual Transmission

A: Press brake pedal for Auto Start

When the shift lever is shifted from N (Neutral) to R (Reverse), D (Drive) or Manual shift mode without the brake pedal depressed, a message will appear on the LCD display. To activate auto start, depress the brake pedal.

ISG malfunction

The system may not operate when:

  • The ISG related sensors or system error occurs.

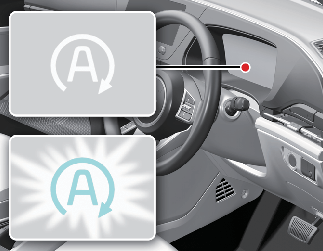

The yellow AUTO STOP indicator () on the instrument cluster will stay on.

WARNING

When the engine is in Idle Stop mode, it's possible to restart the engine without the driver taking any action. Before leaving the car or doing anything in the engine room compartment, stop the engine by turning the ignition switch or ENGINE START/STOP button to the LOCK/OFF position or removing the ignition key.

NOTICE

  • If the ISG system continuously does not work correctly, have your vehicle inspected by a professional workshop as soon as possible. Kia recommends to contact an authorised Kia dealer/service partner.

  • When the ISG OFF button light comes on, it may stop illuminating after driving your vehicle at approximately 80 km/h for a maximum of two hours and setting the fan speed control below the 2nd position. If the ISG OFF button light blink continuously in spite of the procedure, have your vehicle inspected by a professional workshop as soon as possible. Kia recommends to contact an authorised Kia dealer/service partner.

  • If the AGM battery is reconnected or replaced, ISG system will not operate immediately. If you want to use the ISG system, the battery sensor needs to be calibrated for approximately 4 hours with the ignition off. Before calibration, turn the engine on and off 2 or 3 times.
