Rear View Monitor operation

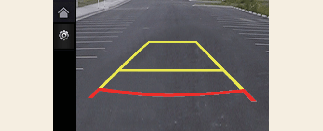

Rear view function

Operating conditions

Rear View Monitor will turn on when the following conditions are satisfied:

Shifting the gear to R (Reverse).

Off conditions

Rear View Monitor will turn off when the following conditions are satisfied:

Changing the gear from R (Reverse) to P (Park). (Manual transmission engage the parking brake.)
Changing the gear from R (Reverse) to P (Park) (For AT/DCT/IVT)
Engaging the parking brake (For MT)

NOTICE

The rear view cannot be turned off when the gear is in R (Reverse).

Extended rear view monitor

Extended rear view monitor maintains the rear view of the vehicle when shifting the gear from R (Reverse) to N (Neutral) or D (Drive) to help you park safely.

Operating conditions

Rear View Monitor will maintain when the following conditions are satisfied:

Shifting the gear from R (Reverse) to N (Neutral) or D (Drive).
The vehicle speed is below approximately 10 km/h (6 mph).

Off conditions

Extended rear view function will turn off when one the following conditions are satisfied:

The vehicle speed is above approximately 10 km/h (6 mph).
Shifting the gear to P (Park).
