Rear View Monitor settings
Warning methods
-
Warning volume
-
High
-
Medium
-
Low
-
Off
A: Driver assistance
-
Warning methods
-
Warning volume
-
Parking safety priority
Warning methods can be set when the vehicle is in ON position.
-
Parking safety priority: Select Settings → Vehicle → Driver assistance → Warning methods → Parking safety priority on the infotainment system. For safe parking, the audio volume will temporarily decrease while Rear View Monitor is operating.
-
Ensure that Warning methods you have set may apply to the Warning methods of other driver assistance systems.
-
Warning methods will maintain its last setting even if the vehicle is restarted.
-
The setting menu may not be available for your vehicle depending on the vehicle features and specifications.

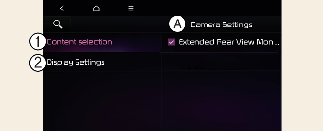

Camera settings
A: Camera Settings
-
Content selection
-
Display settings
You can change Rear View Monitor 'Display Contents' by touching the setup icon (
) on the screen whilst Rear View Monitor is operating, or touch Settings → Vehicle → Driver assistance → Parking safety → Camera Settings on the infotainment system whilst the vehicle is on.
-
Content selection: To change the settings of Rear view parking guide and Extended rear camera use.
-
Display Settings: To change the screen's brightness and contrast.
The settings menu may not be depending on the specifications of the vehicle specifications.
Rear View Parking Guide
Rear View Parking Guide Lines
If Rear View Parking Guide Lines is selected, the rear view parking guide lines will be displayed at the left side of the infotainment system screen.
The horizontal guideline shows the distance of 0.5 m (1.6 ft.), 1 m (3.3 ft.) and 2.3 m (7.6 ft.) from the vehicle.
Top View Parking Guide Lines
If Rear View Parking Guide Lines is selected, the top view parking guide lines will be displayed at the left side of the infotainment system screen.
The horizontal scale of rear top view paring guide indicates the tailgate opening distance, 1.5 m from the vehicle.
Extended rear camera use
With the vehicle on, touch Settings → Vehicle → Driver assistance → Parking safety → Camera settings → Display contents → Extend rear camera use on the infotainment system to turn on Extended Rear View function and deselect to turn off the function.
