Engine compartment overview

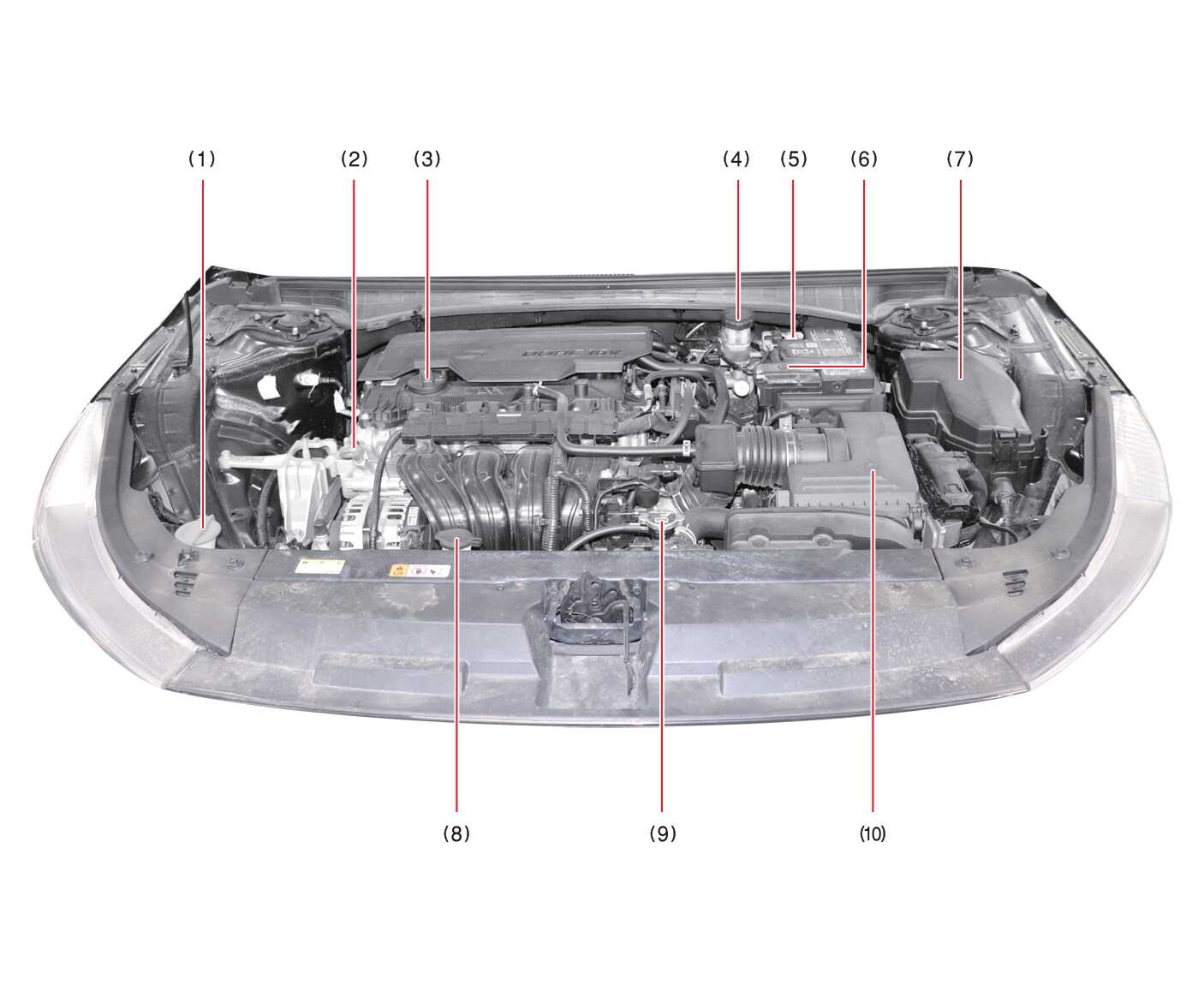

Figure 1. Smartstream G2.0 (Gasoline)
OCL4M075006N

  1. Windshield washer fluid reservoir - Washer fluid

  2. Engine oil dipstick - Engine oil

  3. Engine oil filler cap - Engine oil

  4. Brake fluid reservoir - Brake fluid

  5. Negative battery terminal - Jump starting, Battery

  6. Positive battery terminal - Jump starting, Battery

  7. Fuse box - Engine compartment fuse panel

  8. Radiator cap - Engine coolant

  9. Engine coolant reservoir - Engine coolant

  10. Air cleaner - Air cleaner

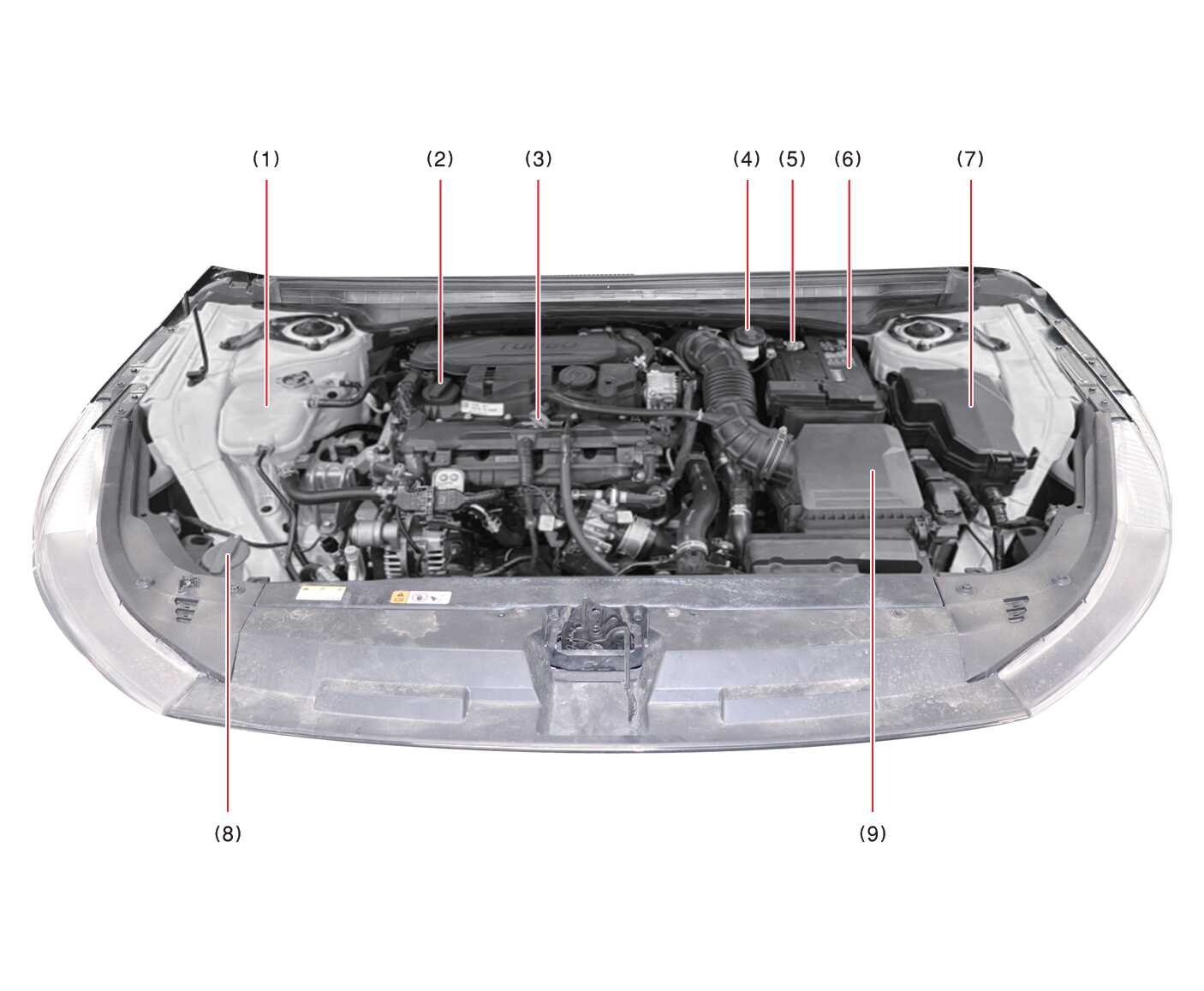

Figure 2. Smartstream G1.6 T-GDi (Gasoline)
OCL4M075007N

The actual engine compartment in your Kia may differ from the illustration.

  1. Engine coolant reservoir - Engine coolant

  2. Engine oil filler cap - Engine oil

  3. Engine oil dipstick - Engine oil

  4. Brake fluid reservoir - Brake fluid

  5. Negative battery terminal - Jump starting, Battery

  6. Positive battery terminal - Jump starting, Battery

  7. Fuse box - Engine compartment fuse panel

  8. Windshield washer fluid reservoir - Washer fluid

  9. Air cleaner - Air cleaner
