Exterior overview

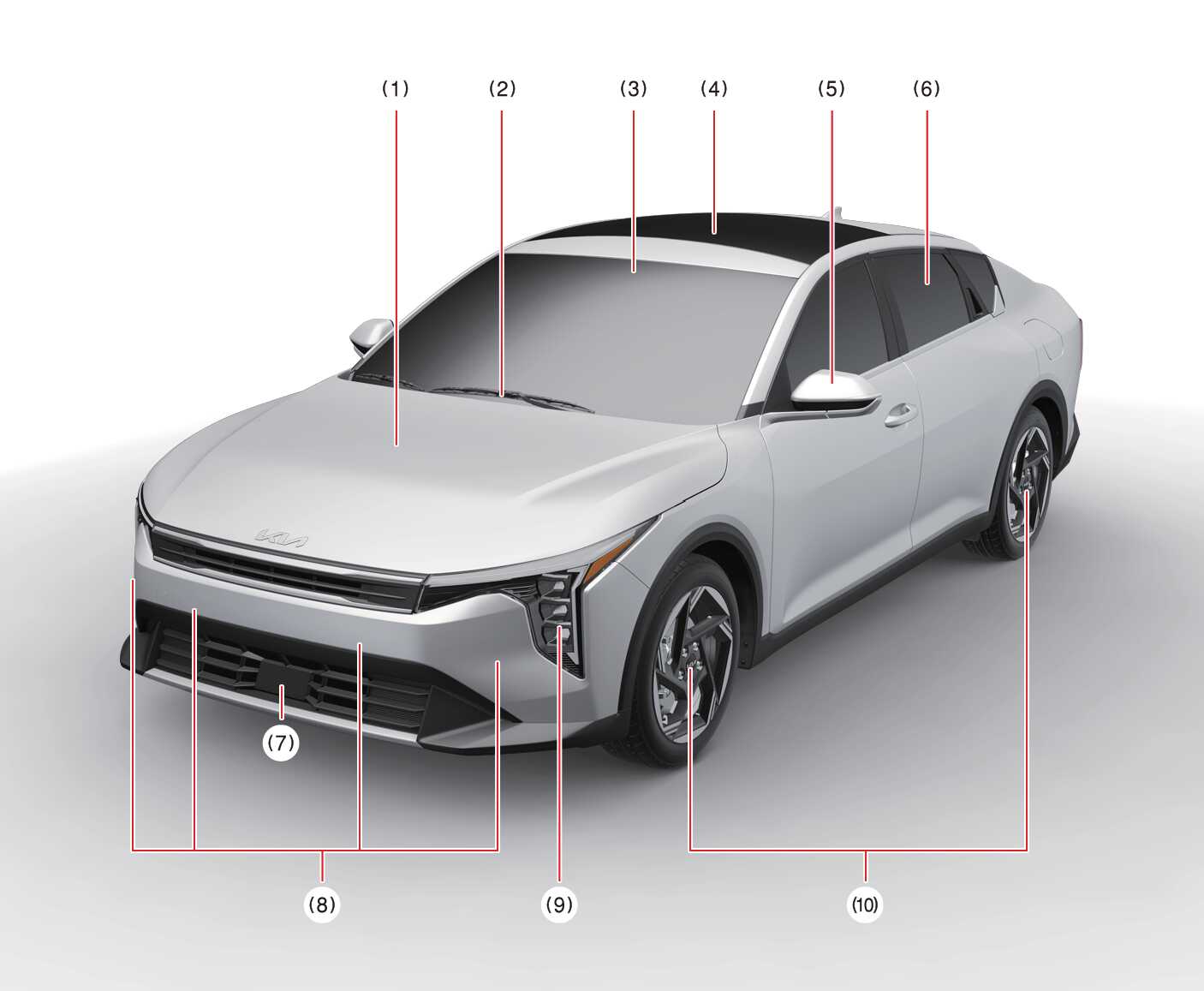

Figure 1. Front view (4 Door)
OCL4M015001N

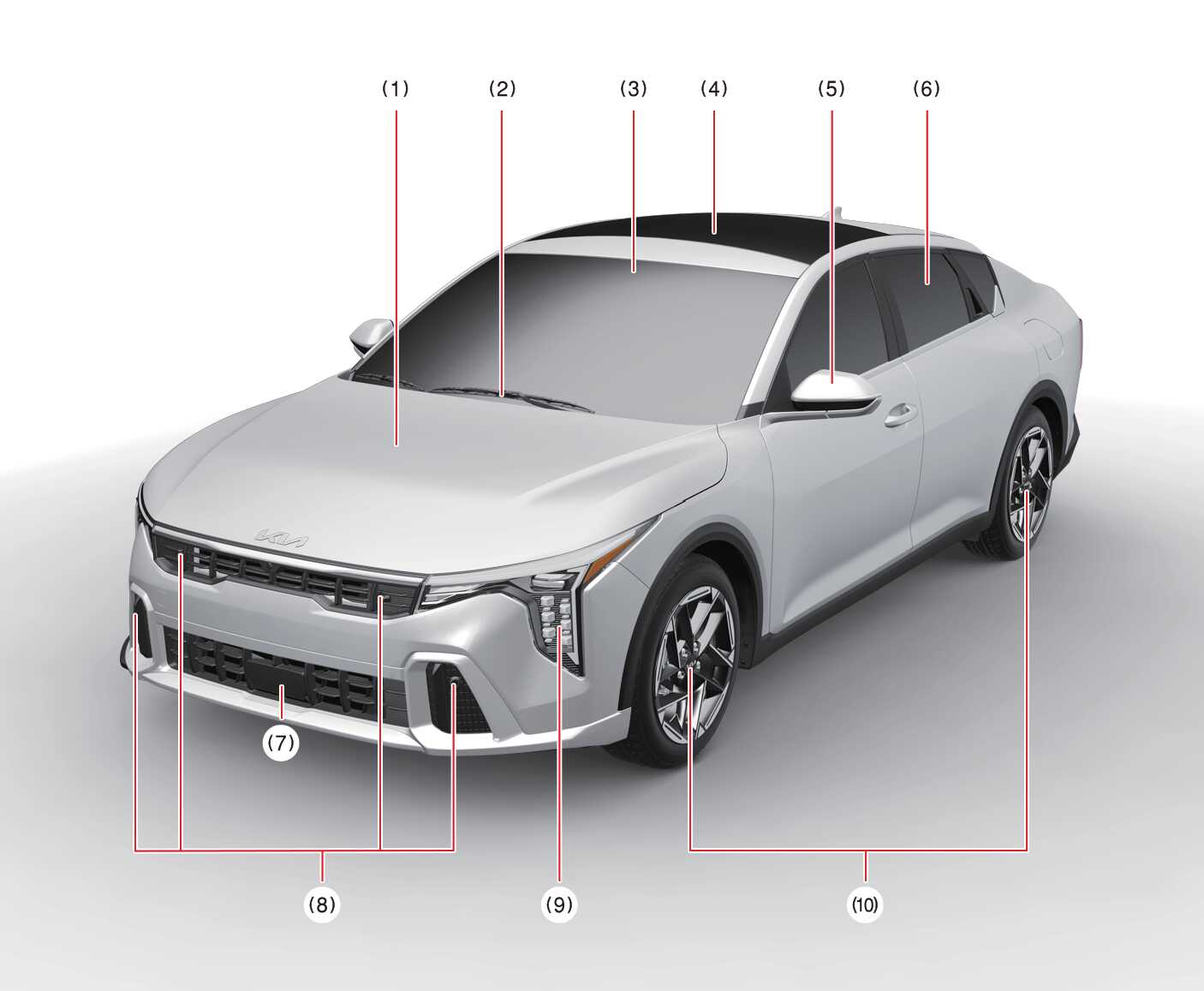

Figure 2. Front view (4 Door) (GT-Line)
OCL4MGTL015001N

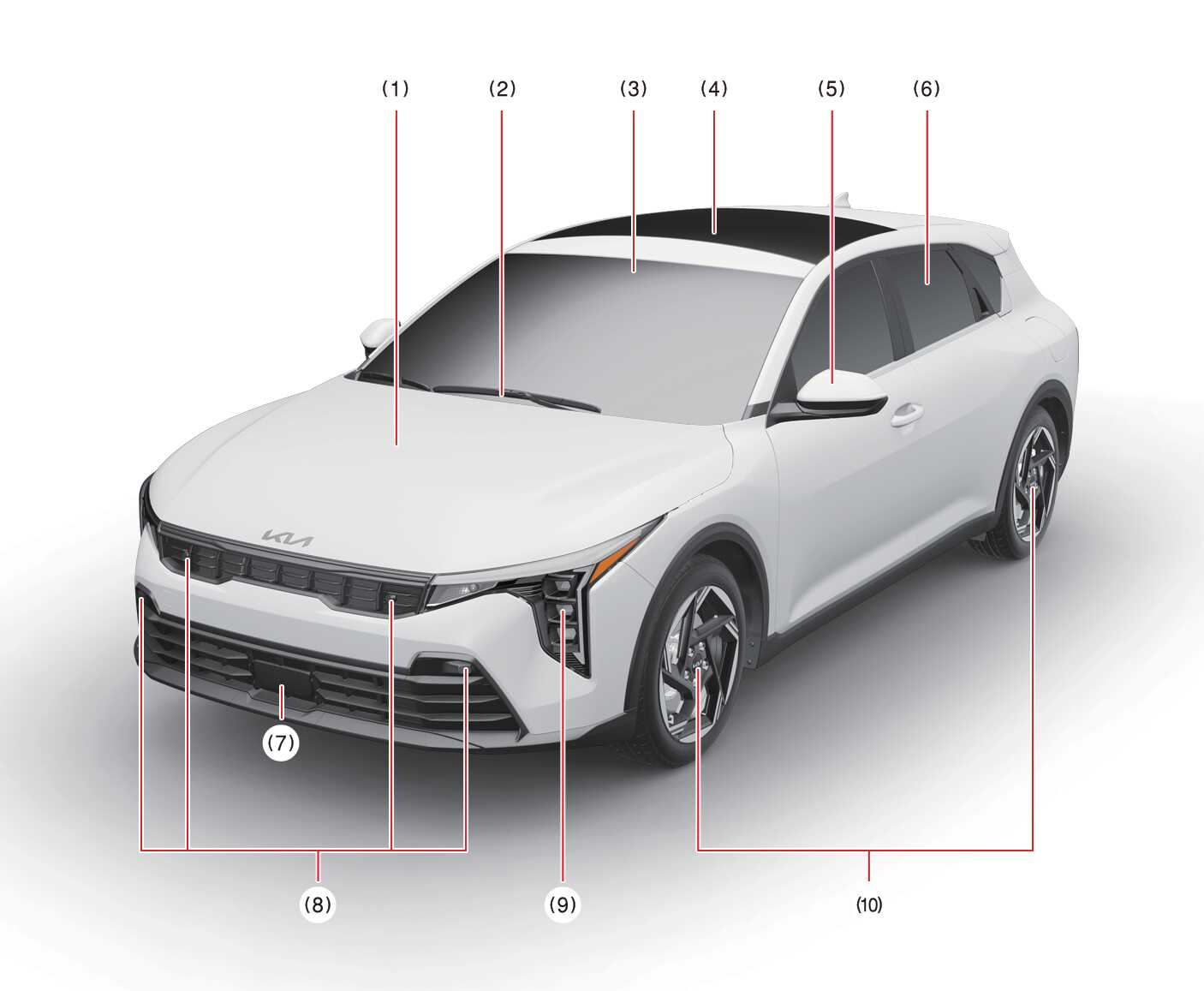

Figure 3. Front view (5 Door)
OCL4M015002N

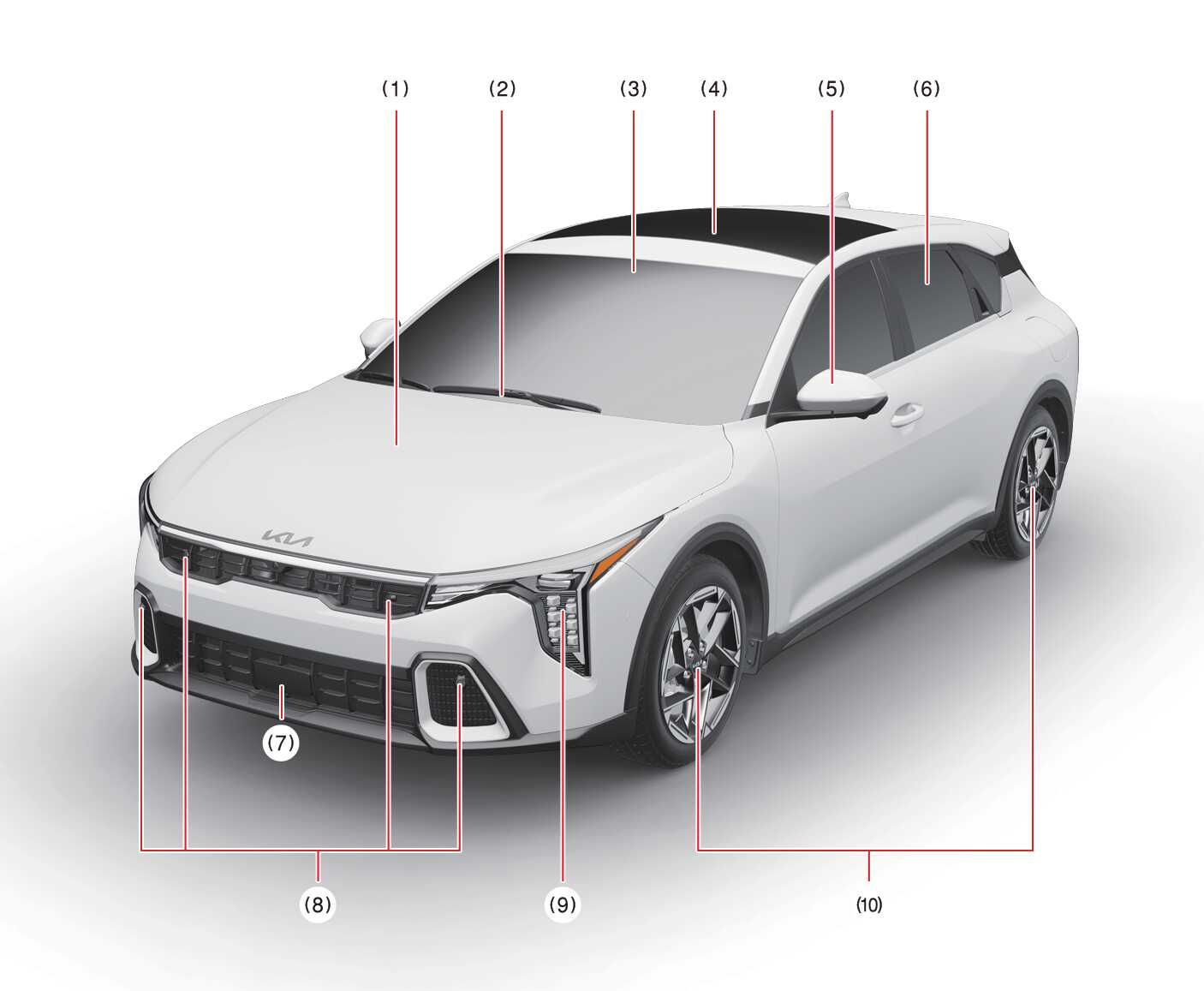

Figure 4. Front view (5 Door) (GT-Line)
OCL4MGTL015002N

The actual shape of your Kia may differ from the illustration.

  1. Hood - Hood

  2. Front windshield wiper blades - Wipers and washers, Wiper blades

  3. Front view camera - Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

  4. Wide sunroof- Wide sunroof

  5. Outside rearview mirror - Outside rearview mirror

  6. Windows- Windows

  7. Front radar - Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

  8. Front ultrasonic sensors - Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

  9. Headlamp - Lighting, Light bulb position (Front)

  10. Wheel and tire - Tires and wheels, Tires and wheels

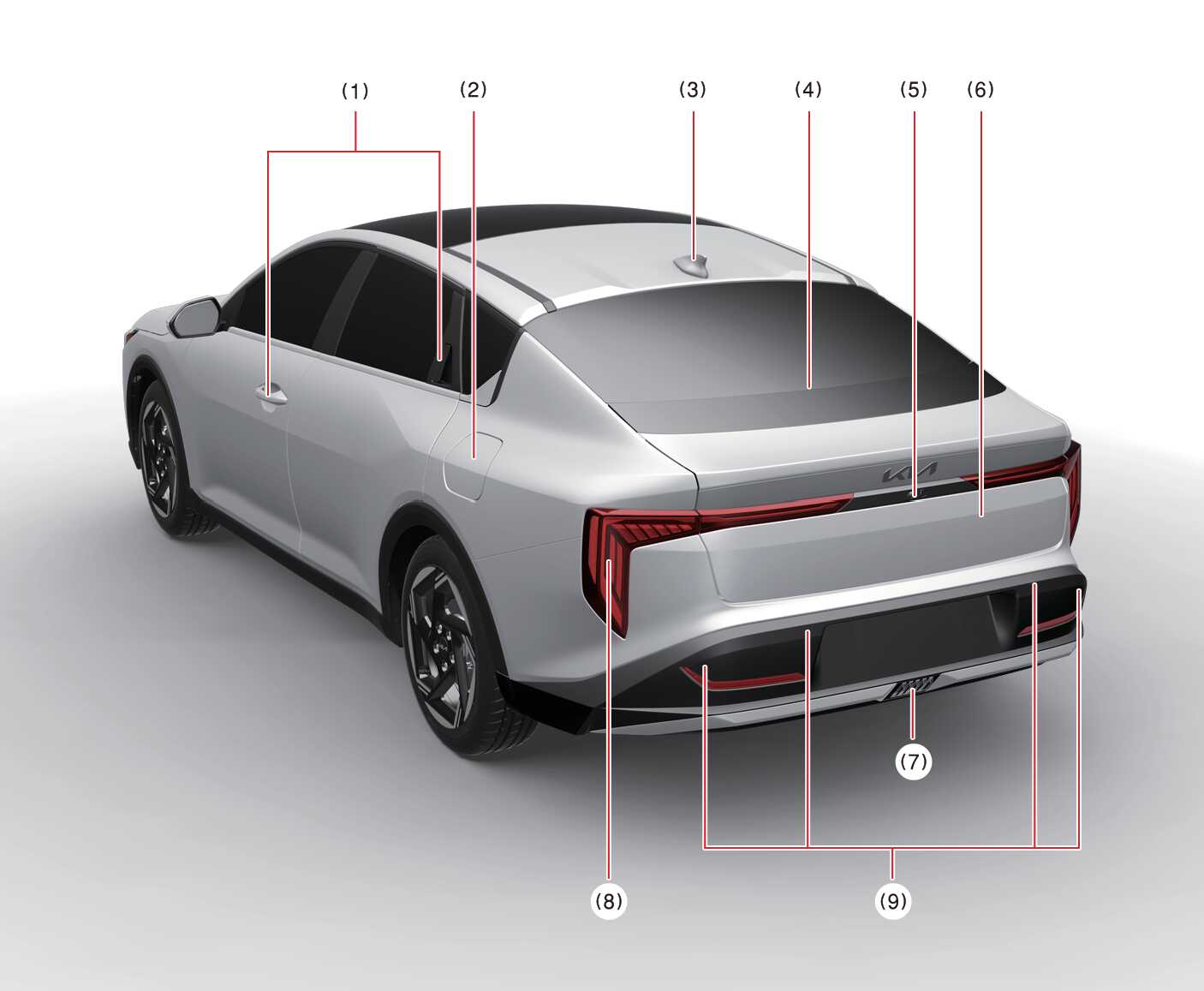

Figure 5. Rear view (4 Door)
OCL4M015003N

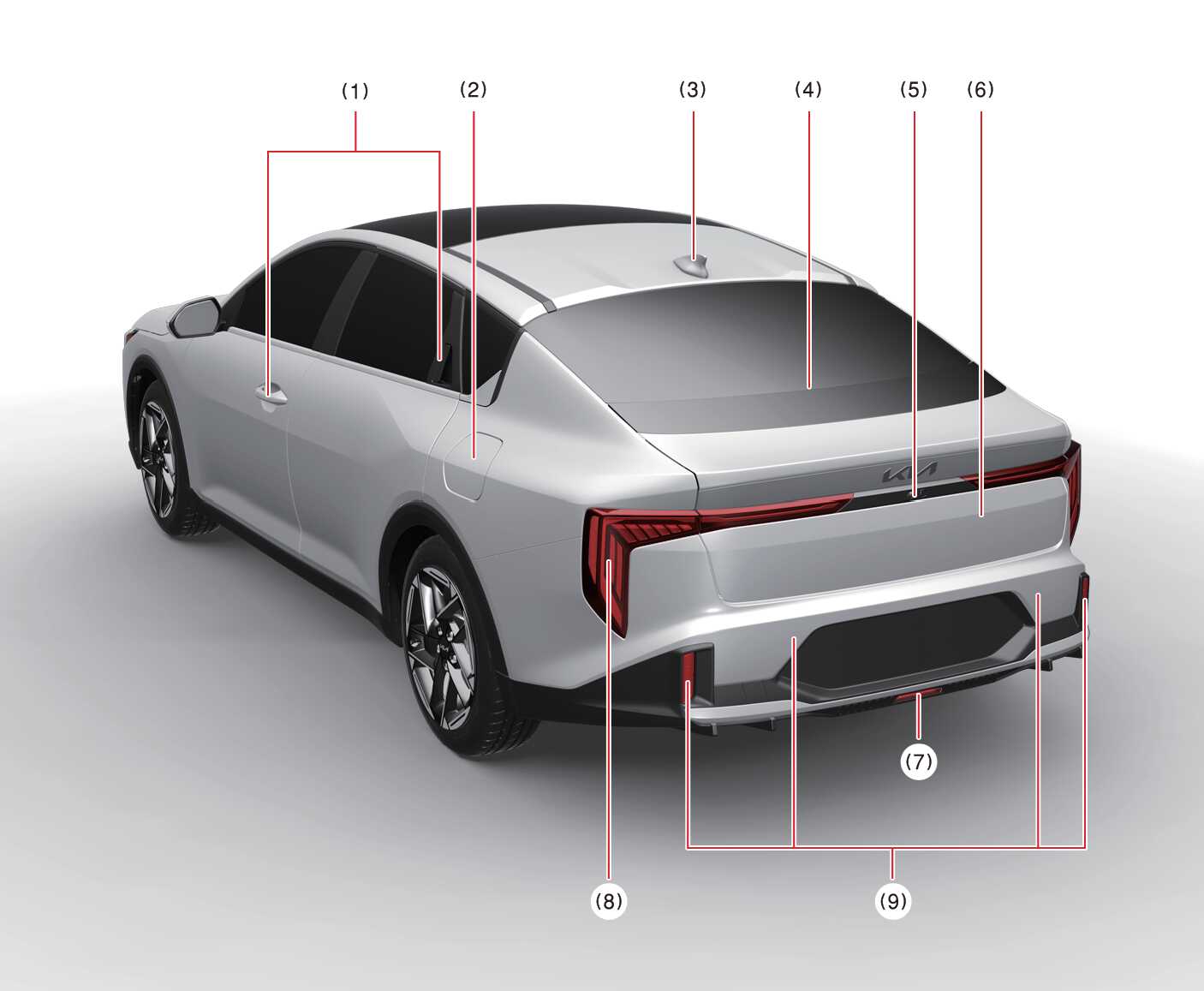

Figure 6. Rear view (4 Door) (GT-Line)
OCL4MGTL015003N

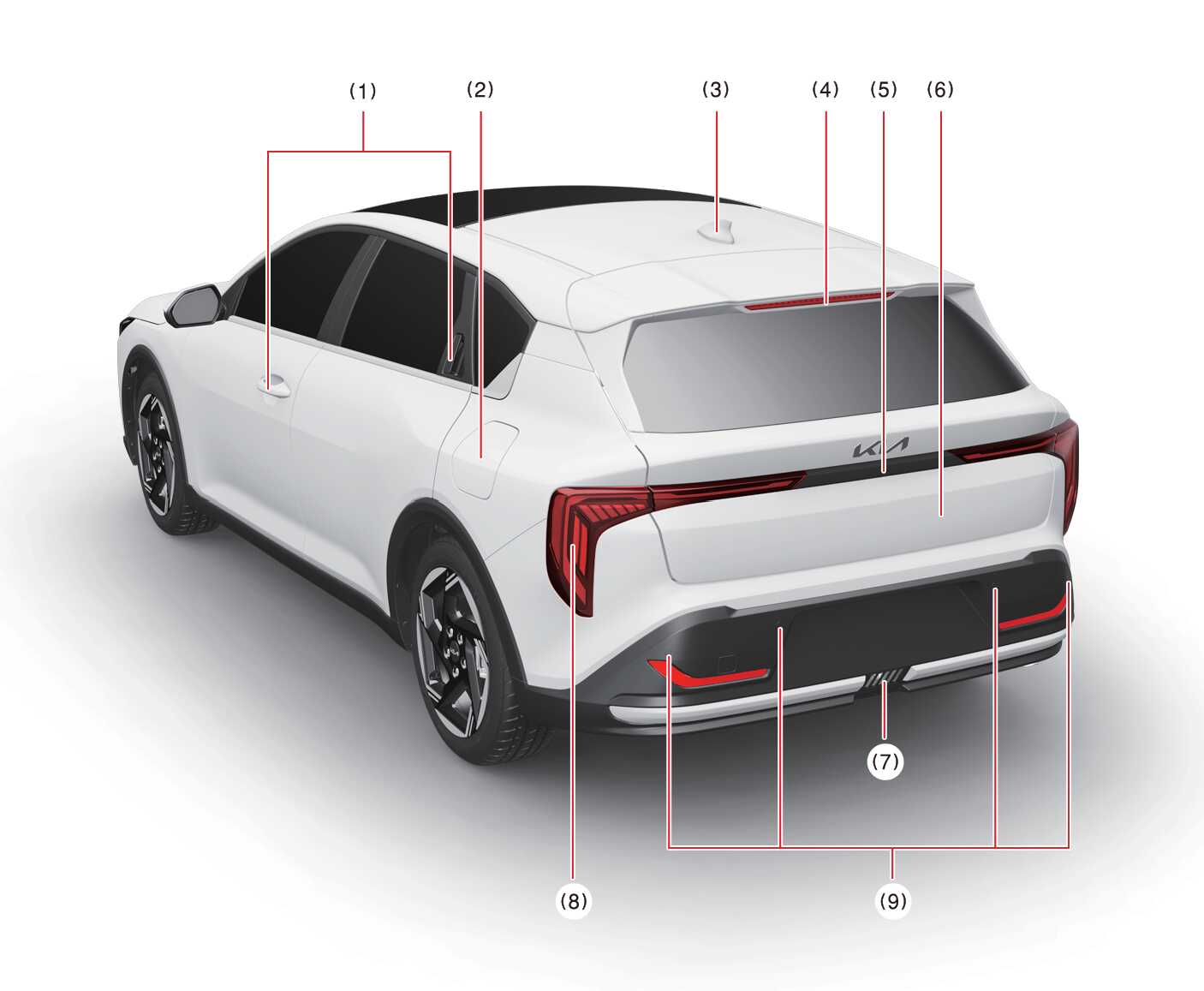

Figure 7. Rear view (5 Door)
OCL4M015004N
Figure 8. Rear view (5 Door) (GT-Line)
OCL4MGTL015004N

The actual shape of your Kia may differ from the illustration.

  1. Doors - Door locks

  2. Fuel filler door - Fuel filler door

  3. Antenna - Shark-fin antenna

  4. High mounted stop lamp - Light bulb position (Rear)

  5. Wide-rear view camera - Rear View Monitor (RVM)

  6. Trunk/Liftgate - Liftgate (for 5door), Smart trunk with auto open

  7. Back up lamp- Light bulb position (Rear)

  8. Rear combination lamp - Replacing turn signal lamp and stop lamp (Rear combination lamp) (Type A) (Bulb type)

  9. Rear ultrasonic sensors - Parking Distance Warning (PDW), Reverse Parking Collision-Avoidance Assist (PCA)
