Light bulb position (Rear)

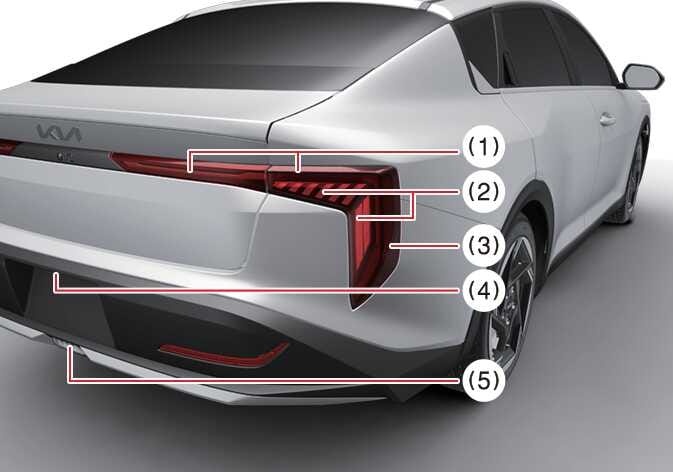

Figure 1. Rear combination lamp (4 Door) (Type A)
OCL4M075008N

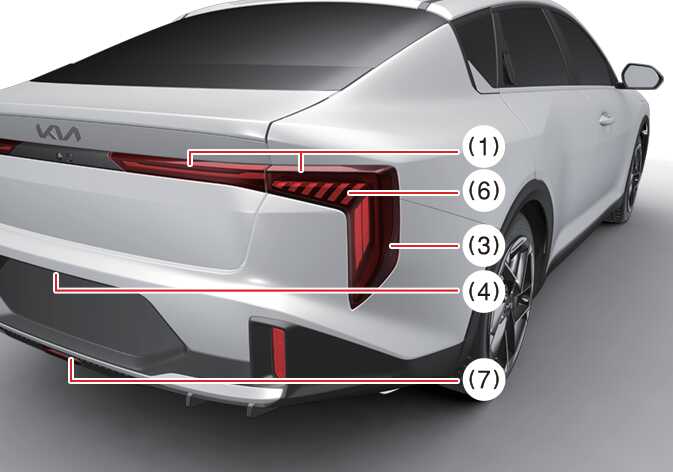

Figure 2. Rear combination lamp (4 Door) (Type B)
OCL4MGTL075001N

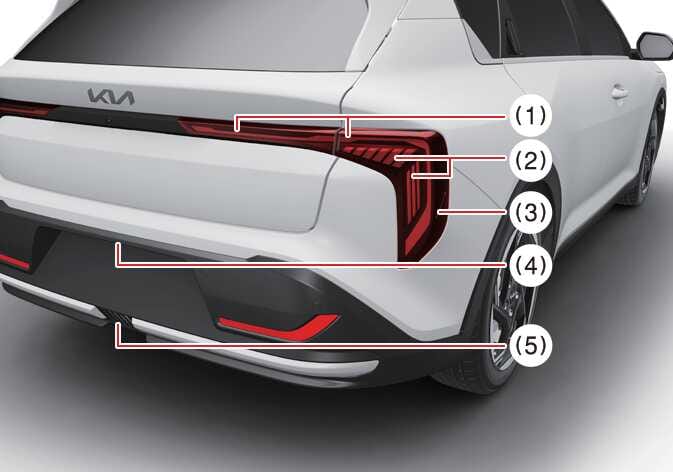

Figure 3. Rear combination lamp (5 Door) (Type A)
OCL4M075044N

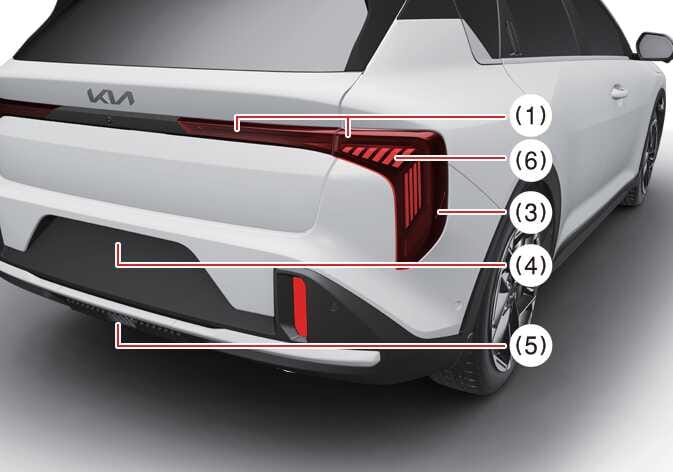

Figure 4. Rear combination lamp (5 Door) (Type B)
OCL4MGTL075003N

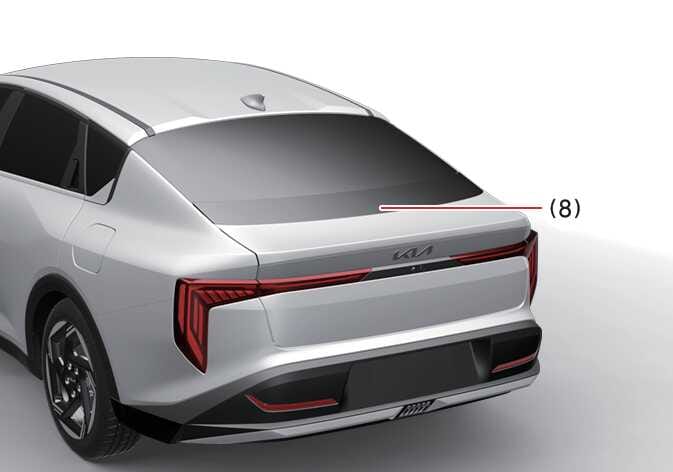

Figure 5. High mounted stop lamp (4 Door)
OCL4M075010N

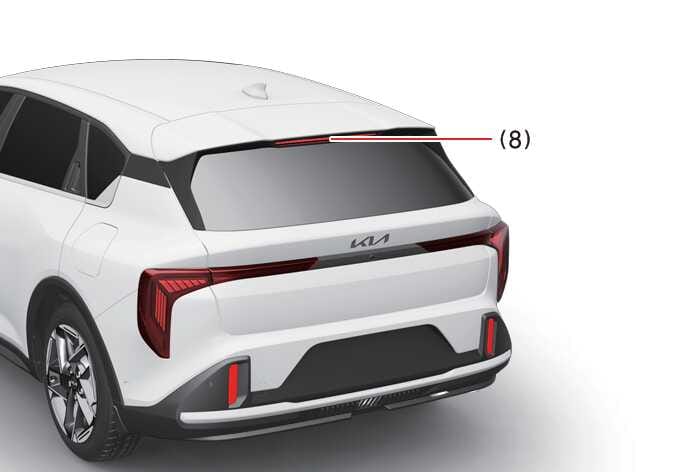

Figure 6. High mounted stop lamp (5 Door)
OCL4MGTL075002N

  1. Tail lamp (LED type)

  2. Stop and rear turn signal lamp (Bulb type)

  3. Rear side marker lamp (LED type)

  4. License plate lamp (LED type)

  5. Back up lamp (Bulb type)

  6. Stop and rear turn signal lamp (LED type)

  7. Back up lamp (LED type)

  8. High mounted stop lamp (Bulb/LED type)
