Automatic climate control system: (if equipped)

The automatic climate control system cools or heats the inside of the vehicle for the comfort of you and your passengers.

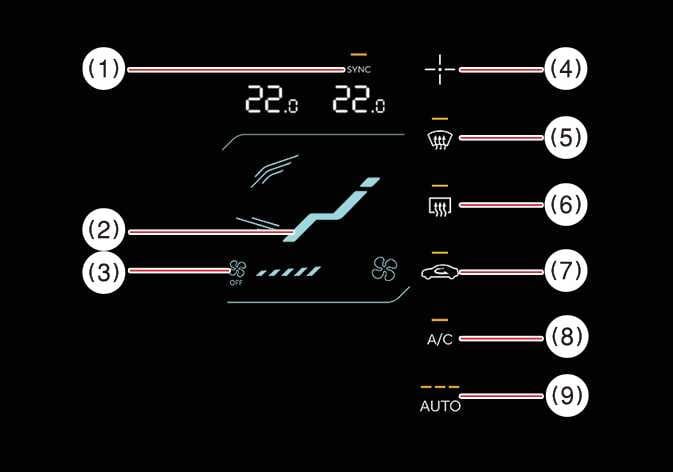

Figure 1. Climate control display
OCL4M035330N

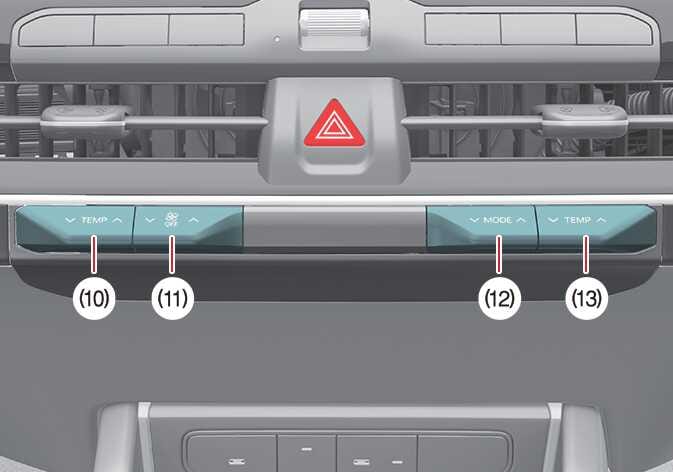

Figure 2. Instrument panel
OCL4M035309N

  1. SYNC button

    • Press the SYNC button to adjust the driver and passenger side temperature to the same value.

  2. Mode selection button

  3. Fan speed control/off button

  4. Infotainment system screen on/off button

  5. Front windshield defroster button

  6. Rear window defroster button

  7. Air intake control button

  8. Air conditioning A/C button

  9. AUTO (automatic control) button

  10. Driver's side temperature control lever

  11. Fan speed control/off lever

  12. Mode selection lever

  13. Passenger's side temperature control lever

NOTE

Operating the blower when the vehicle is in ACC position could cause the battery to discharge. Operate the blower when the vehicle is running.
