Manual heating and air conditioning (A/C) operation

The heating and cooling system can be controlled manually by pressing buttons other than the AUTO button.

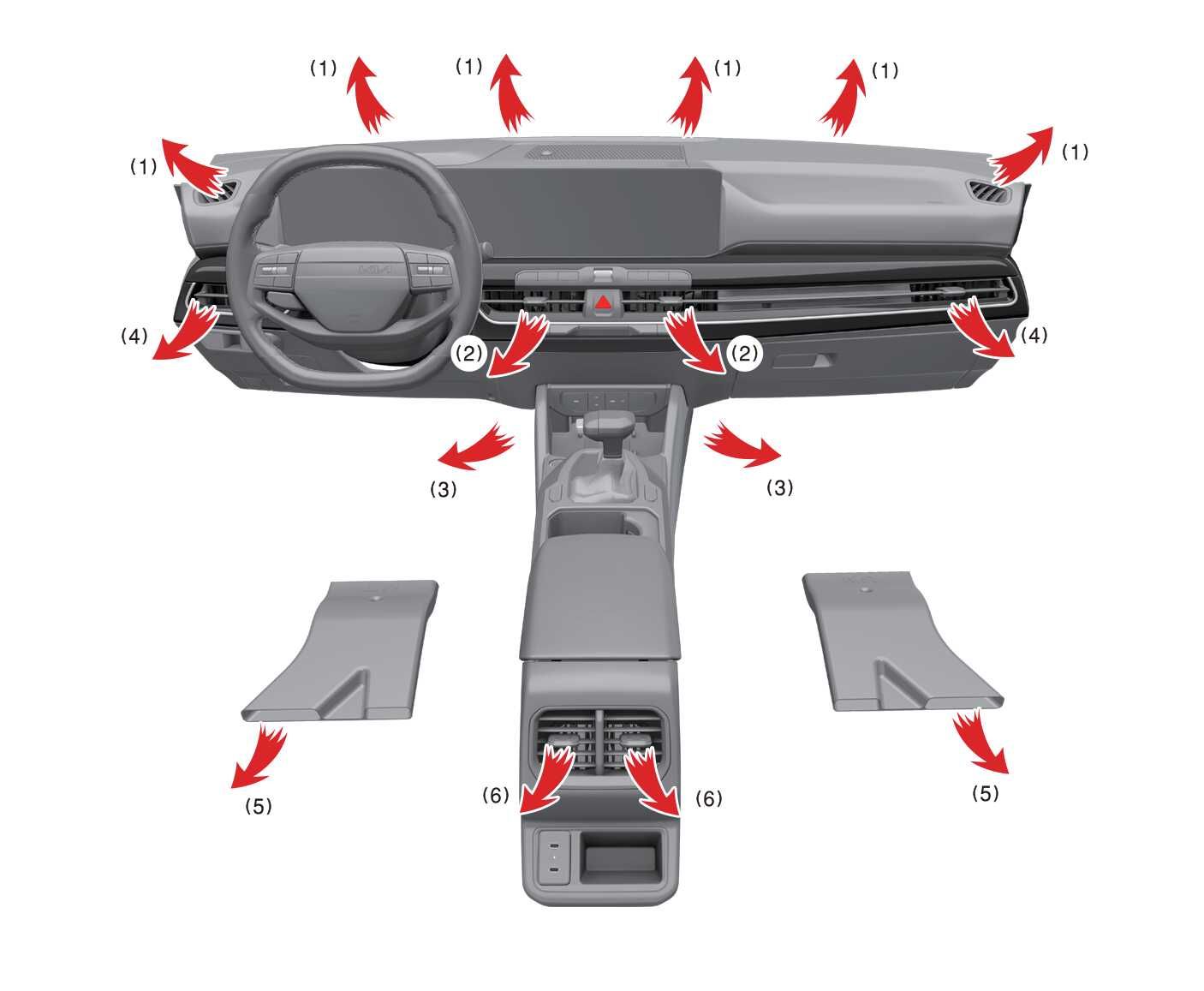

OCL4M035310N

To manually operate the heating and A/C, follow these steps:

  1. Start the vehicle.
  2. Set the desired mode.

    • Heating:

    • Cooling:

  3. Set the temperature control as desired.
  4. Set the air intake control to external air.
  5. Set the desired fan speed. Turn the A/C system on if desired.
  6. If desired, turn the air conditioning on with the temperature set high in order to dehumidify the air before it enters into the cabin.

    If the windshield fogs up, select the front defrost mode.

Press the AUTO button to switch to the automatically controlled climate system.
