Mode selection

N_CT25C039_E

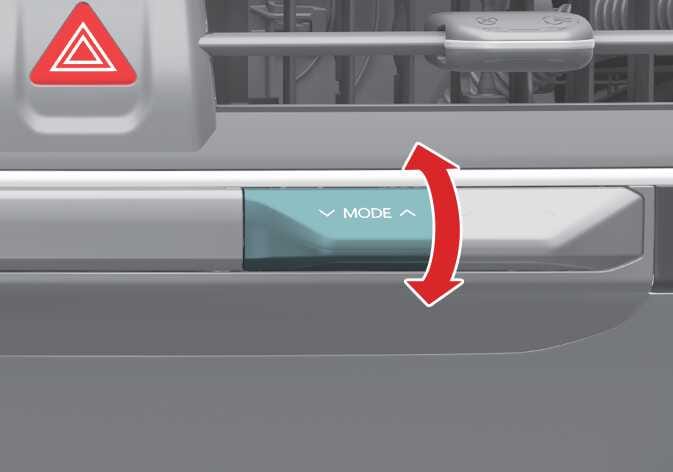

OCL4M035311N

The mode selection lever/icon controls the direction of airflow through the ventilation system.

Face-Level (2, 4, 6)

Air flow is directed toward the upper body and face. You can control the direction of the airflow from each vent.

Bi-Level (2, 3, 4, 5, 6)

Air flow is directed toward the upper body and face and the floor.

Floor-Level (1, 3, 4, 5)

Most of the airflow is directed to the floor, and a small amount is directed to the windshield, side window defrosters, and side air vents.

Floor/Defrost-Level (1, 3, 4, 5)

Most of the airflow is directed to the floor and windshield, and a small amount is directed to the side window defrosters and side air vents.

Defrost-Level (1, 4)

Most of the air flow is directed to the windshield, and a small amount is directed to the side window defrosters and side air vents.

Instrument panel vents

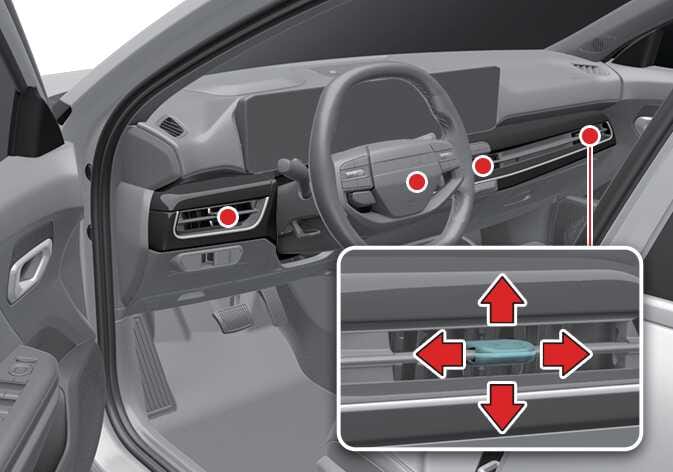

Figure 1. Front
OCL4M035307N

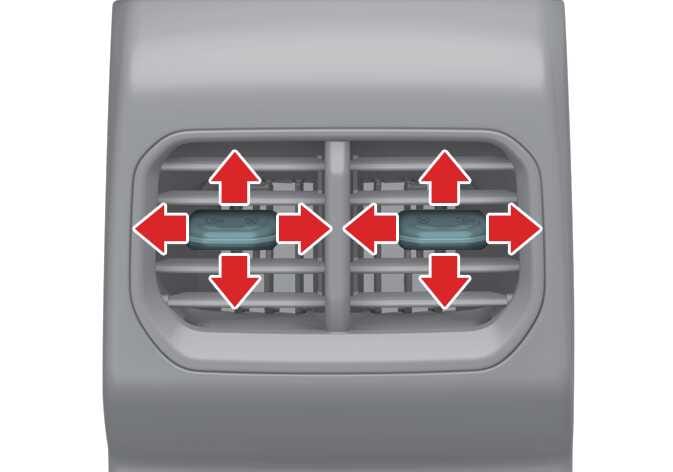

Figure 2. Rear (if equipped)
OCL4M035308N

You can adjust the direction of a vent’s airflow using the vent control lever as shown.
