Operating relaxion comfort seat

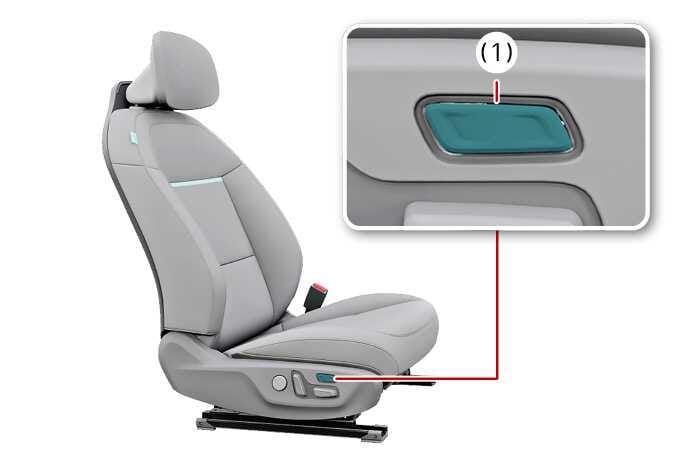

Figure 1. Driver's seat
N_CT25B028_1_ER

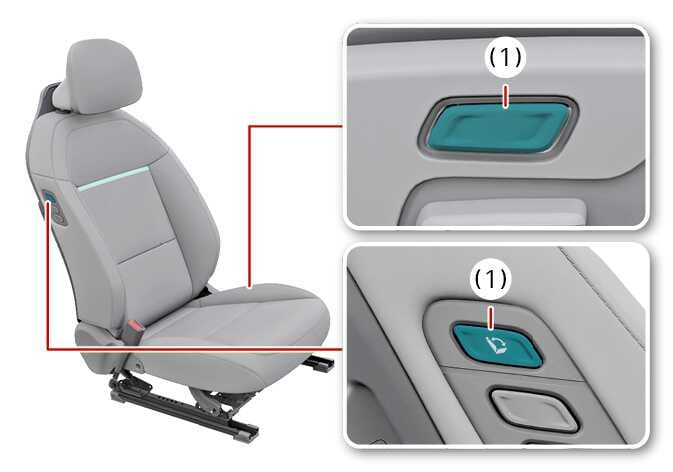

Figure 2. Passenger's seat
N_CT25B030_2_ER

Simple operation

  • Press the rear portion of the switch (1) more than 0.5 second.

  • If the seat adjustment switch (reclining, cushion height) is operated during relaxion comfort seat operating, the operation will stop.

Operation

  1. Press the rear portion of the switch (1) more than 0.5 second.

  2. If the seat adjustment switch (reclining, cushion height) is operated during relaxion comfort seat operating, the operation will stop.

  3. After the operation is complete, it can be adjusted more using the seat adjustment switch for a more comfortable posture.

Operating conditions

Driver's seat

  • EV button is POWER ON or DRIVE READY position.

  • P (Park) gear position is selected.

  • Driver's side rear seat seatbelt is not fastened

Passenger's seat

  • EV button is POWER ON or DRIVE READY position

  • Passenger's side rear seat seatbelt is not fastened
