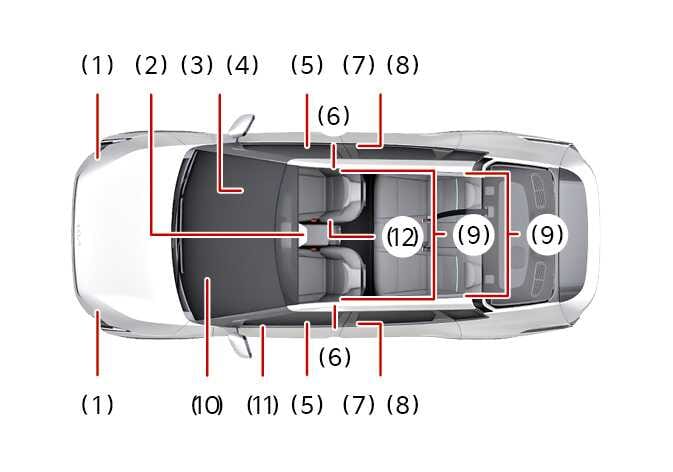

SRS components and functions

N_CT25B039_ER

  1. Front impact sensors

  2. SRS control module (SRSCM)/rollover sensor

  3. Driver's front air bag module

  4. Air bag warning light

  5. Side pressure sensors

  6. Side air bag modules

  7. Curtain air bag modules

  8. Side impact sensors

  9. Retractor pre-tensioner assemblies

  10. Passenger's front air bag module

  11. Passenger's front air bag ON/OFF switch*

  12. Driver's centre side air bag module*

The actual features in your vehicle may not necessarily be available due to the selected options or regions.

*: if equipped

Operating condition(s)

  • When EV button is in POWER ON or DRIVE READY position, the SRS air bag warning light will appear for approximately 6 seconds and go out.

WARNING

If any of the following conditions occurs, this indicates a malfunction of the SRS. In this case, have the system inspected by a professional workshop. Kia recommends visiting an authorised Kia dealer/service partner.

  • The light does not turn on briefly when you turn the vehicle POWER ON or DRIVE READY.

  • The light stays on after illuminating for approximately 6 seconds.

  • The light comes on whilst the vehicle is in motion.

  • The light blinks when the vehicle is in POWER ON or DRIVE READY position.
