Emergency trunk safety release

Table 1. Inside the trunk
N_CT25C028_1
Table 2. Inside the vehicle
N_CT25C030_1
N_CT25C031

  1. Cable cover

  2. Cable loop

Simple operation

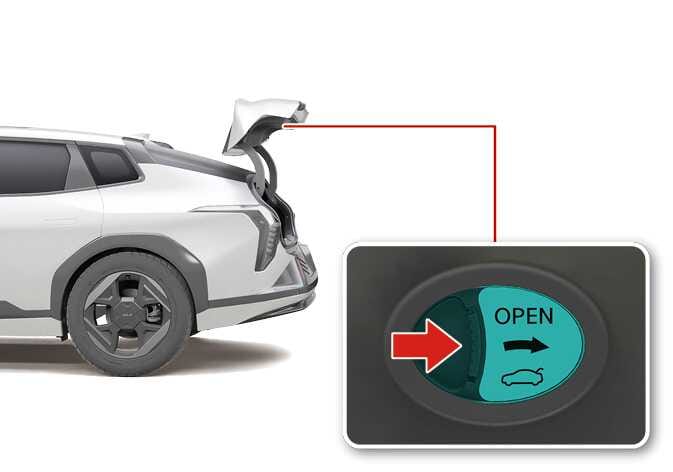

Inside the trunk

  1. Move the lever in the direction of the arrow.

  2. Push the trunk lid to open.

Inside the vehicle

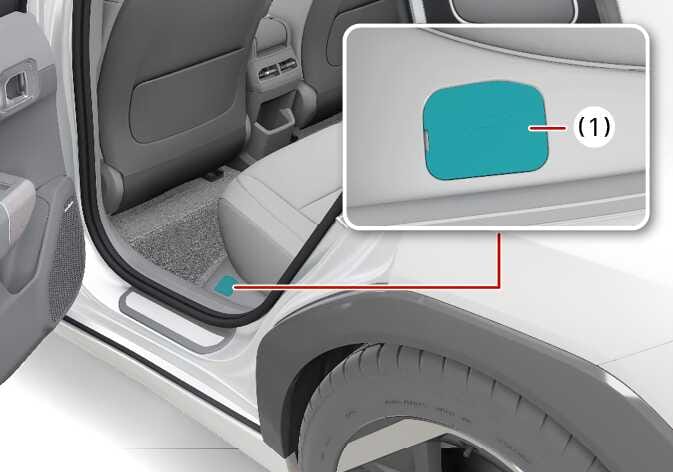

  1. Remove the cable cover (1) under the rear seat using a mechanical key.

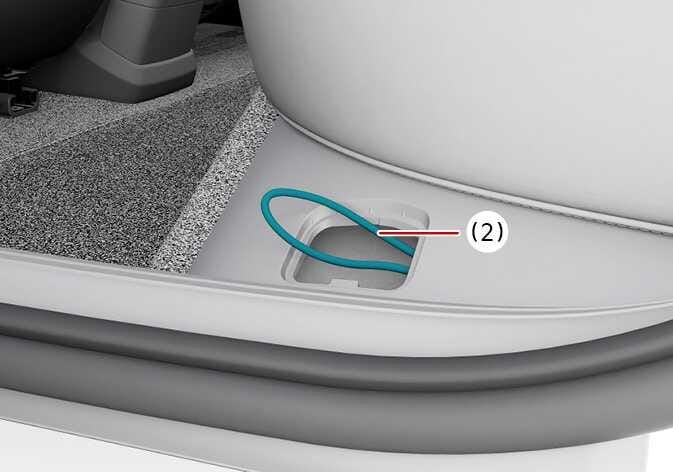

  2. Pull the cable loop (2) all the way out.

Operation

Inside the trunk

  1. Move the lever in the direction of the arrow.

  2. Push the trunk lid to open.

Inside the vehicle

  1. Remove the cable cover (1) under the rear seat using a mechanical key.

  2. Pull the cable loop (2) all the way out. The power trunk unlocks.

  3. Push the trunk lid to open.

WARNING

  • For emergencies, be fully aware of the location of the emergency trunk safety release latch in the vehicle and how to open the trunk if you are accidentally locked in the luggage compartment.

  • No one, including animals, should be allowed to occupy the luggage compartment of the vehicle at any time. The luggage compartment is a very dangerous location in the event of an accident.

  • Use the release latch for emergencies only. Use extreme caution, especially whilst the vehicle is in motion.
