i-Pedal

i-Pedal is controlled by acceleration pedal. It provides vehicle speed control without manually controlling the paddle shifter.

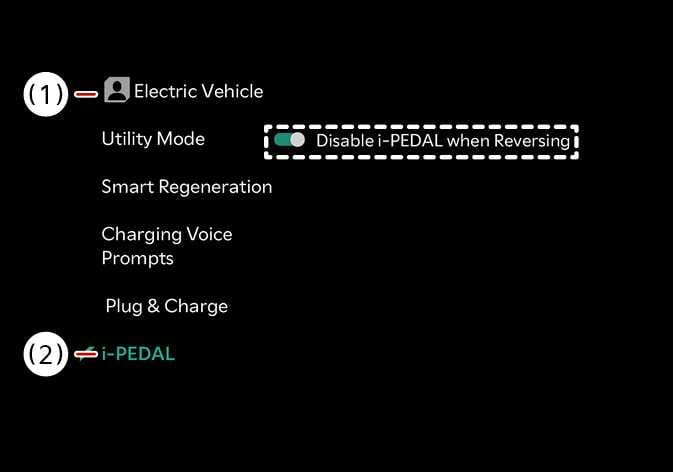

i-PEDAL Settings

N_CT25Z089_E

  1. Electric Vehicle

  2. i-PEDAL

  • On the home screen of the infotainment system, Electric Vehicle > > i-PEDAL allows you to choose whether to use i-PEDAL when reversing.

  • If you enable Do not use i-Pedal when reversing, shifting to R (Reverse) whilst using i-Pedal will turn off the i-Pedal function, then shifting to D (Drive) and automatically turning on the i-Pedal function when driving above 20 km/h (12 mph).

  • If you disable Do not use i-Pedal when reversing, the i-Pedal function is automatically turned on by shifting D (Drive) or R (Reverse).

Operation

  1. Pull the left side ( ) of the paddle shifter for approximately 1 second during all regenerative braking steps. It will turn on the i-Pedal function and the i-Pedal indicator symbol will be displayed in the cluster.

  2. Pull the left side of the paddle shifter for approximately 1 second again to turn off the i-PEDAL function and the i-Pedal indicator symbol will disappear in the cluster.

    • Check i-Pedal indicator symbol i-Pedal on the instrument cluster.

NOTE

If you turn off the vehicle with i-Pedal set to a specific level, the same setting is retained when you restart the vehicle.

Non-operating condition(s)

  • A road with a steep uphill or downhill slope

  • The point at which the slope ends

  • When starting and stopping repeatedly on an inclined road

  • When the Downhill Brake Control (DBC) function is operating

WARNING

  • Do not solely rely on i-Pedal to stop the vehicle. Stopping the vehicle may not be possible depending on vehicle and road conditions. Pay attention to the road condition ahead and apply the brake if necessary.

  • Avoid increasing the regenerative braking level suddenly on slippery roads (like snow or icy conditions) because it may lead slipping of the tyres and skidding of vehicle. It can be dangerous due to the loss of the vehicle's steering force.

CAUTION

When the vehicle is stopped or parked by i-Pedal on steep hills, be sure to depress the brake pedal.

NOTE

When the deceleration rate and the vehicle’s level of deceleration reaches a certain level whilst the i-Pedal function is on, brake lights may turn on without depressing the brake pedal.
