Operating smart regeneration system

Operation

  1. Pull and hold the right side ( ) of the paddle shifter for more than approximately 1 second.

    • The ( ) symbol will be displayed on the cluster. The regenerative braking level can be adjusted based on the driver's deceleration style.

NOTE

  • The ( ) symbol will turn grey when the smart regeneration system is temporarily disabled.

  • If the smart regeneration system can be enabled and the front radar is detected, the ( ) symbol will turn green.

  • If the smart regeneration system can be enabled and the front radar is not detected, the ( ) symbol will turn white.

  • AUTO HOLD is active when the smart regeneration system is on. For more information, refer to AUTO HOLD.

  • You cannot adjust the regeneration level whilst the smart regeneration system is active.

Operating condition(s)

  • When the road gradient changes.

  • The distance from the vehicle ahead reduces or increases.

  • The speed of the vehicle ahead reduces or increases.

Detecting sensor

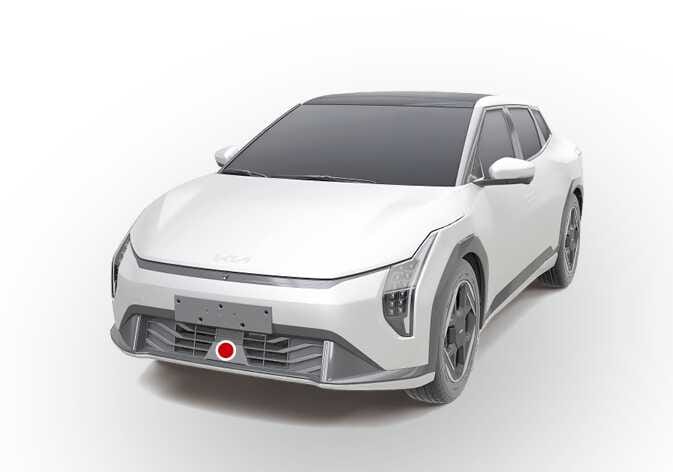

Figure 1. Front radar
N_CT25D011_E

Always make sure the radar sensor cover is clean and free of dirt, snow, and debris.

Dirt, snow, or foreign substances on the lens may adversely affect the sensing performance of the sensor. In this case, the system operation may stop temporarily and not operate normally.
