Display and control

You can see the status of the Highway Driving Assist operation in the Driving Assist view on the cluster. Refer to LCD display modes.

N_CT25Z122
N_CT25Z123

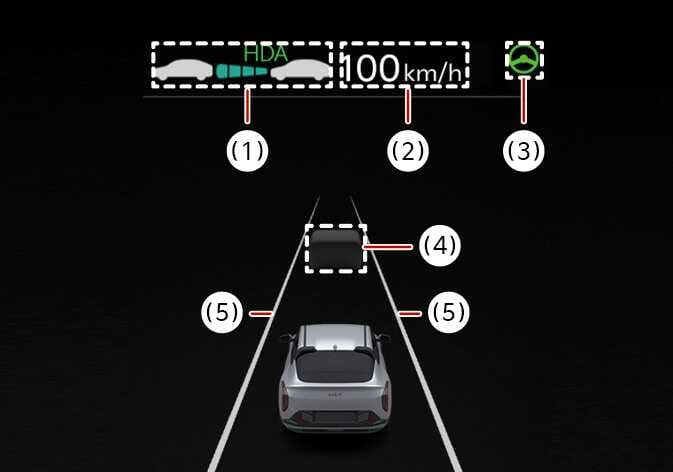

Highway Driving Assist will be displayed as below depending on the status of the function.

  1. Highway Driving Assist indicator, whether there is a vehicle ahead and the selected distance level is displayed.

    • Highway Driving Assist indicator

      • Green HDA: Operating state

      • Gray HDA: Standby state

      • White HDA blink: Accelerator depressed state

      • None: Off state

  2. Set speed

  3. Lane Following Assist indicator

  4. Whether there is a vehicle ahead and the selected headway

  5. Whether the lane is detected or not

NOTE

  • For more details on the display, refer to Lane Following Assist (LFA).

  • For more details on the display refer to SCC (Smart Cruise Control).

  • The images and colours in the instrument cluster may differ depending on the cluster type or theme selected from the settings menu.
