Camera Settings

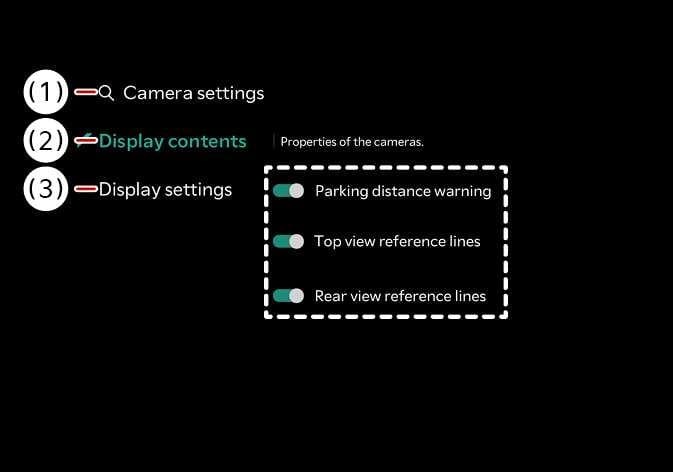

N_TK25Z005_E

  1. Camera settings

  2. Display contents

  3. Display settings

With the vehicle is in DRIVE READY, select the setup icon () on the screen orSettings > Vehicle > Driver assistance > Parking safety > Camera settings from the infotainment system screen to change the Rear View Monitor settings.

Extend rear camera use

If Extend rear camera use is selected, the rear camera is displayed even when shifting from R (Reverse) to N (Neutral) or D (Drive).

Rearview reference lines

If Rear view reference lines in the display information is selected, Rear view reference lines and Top Rear View Parking Guidance are displayed in the rear monitor.

NOTE

  • The setting menu may not be available for your vehicle depending on the vehicle specifications.

  • The horizontal lines of the Rear View Parking Guidance indicate distances of 0.5 m (20 in), 1 m (40 in) and 2.3 m (91 in) from the vehicle. The horizontal scale of the Top View Parking Guidance indicates distances of trunk opening distance and 1.5 m (60 in) from the vehicle.
