Climate control air filter

N_CT25G047_1_ER
N_CT25G049_ER
N_CT25G050_1_ER
N_CT25G010

Operation

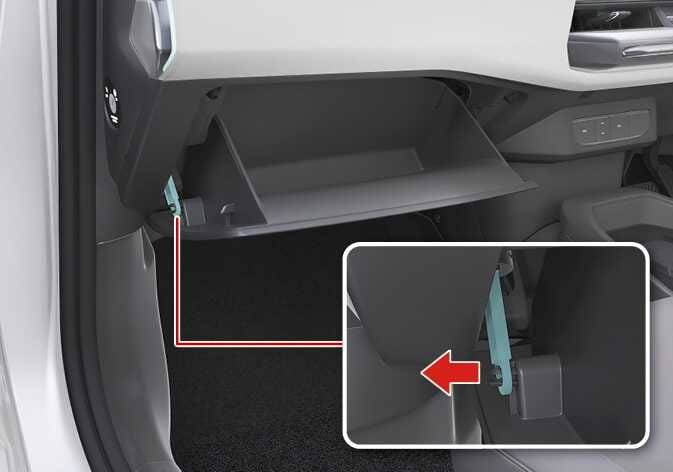

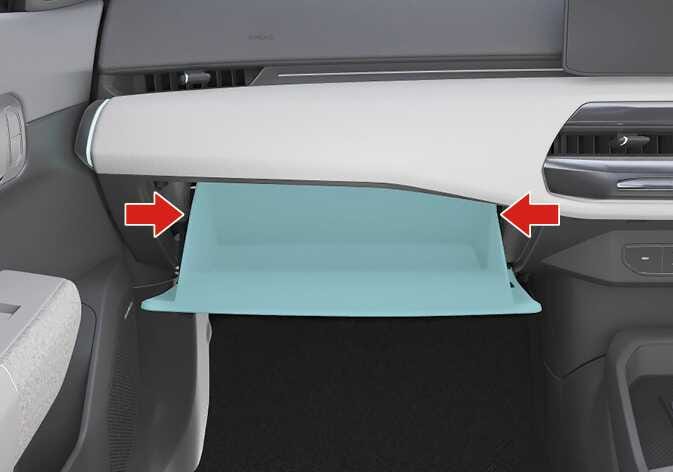

  1. Open the glove box and remove the stopper (1). With the glove box open, remove the glove box by pushing the both sides of it.

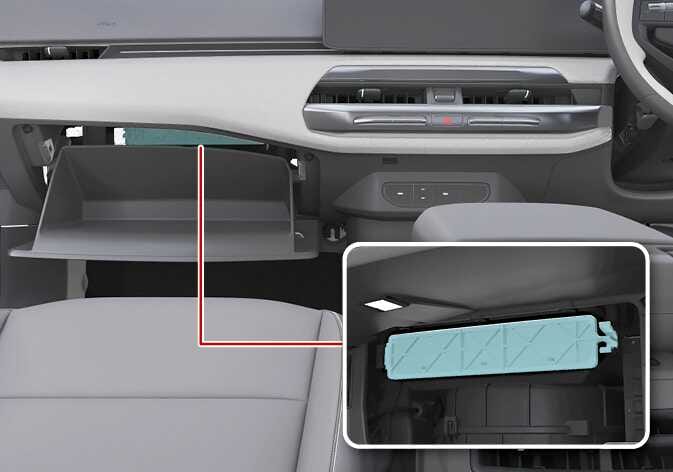

  2. Remove the climate control air filter cover (2) by pulling out left side of the cover (3).

  3. Replace the climate control air filter.

NOTE

When replacing the climate control air filter install it properly. Otherwise, the system may produce noise and the effectiveness of the filter may be reduced.
