Connectors, cable and compressor hose are stored in the compressor housing.

Strictly follow the specified sequence, otherwise the sealant may escape under high pressure.

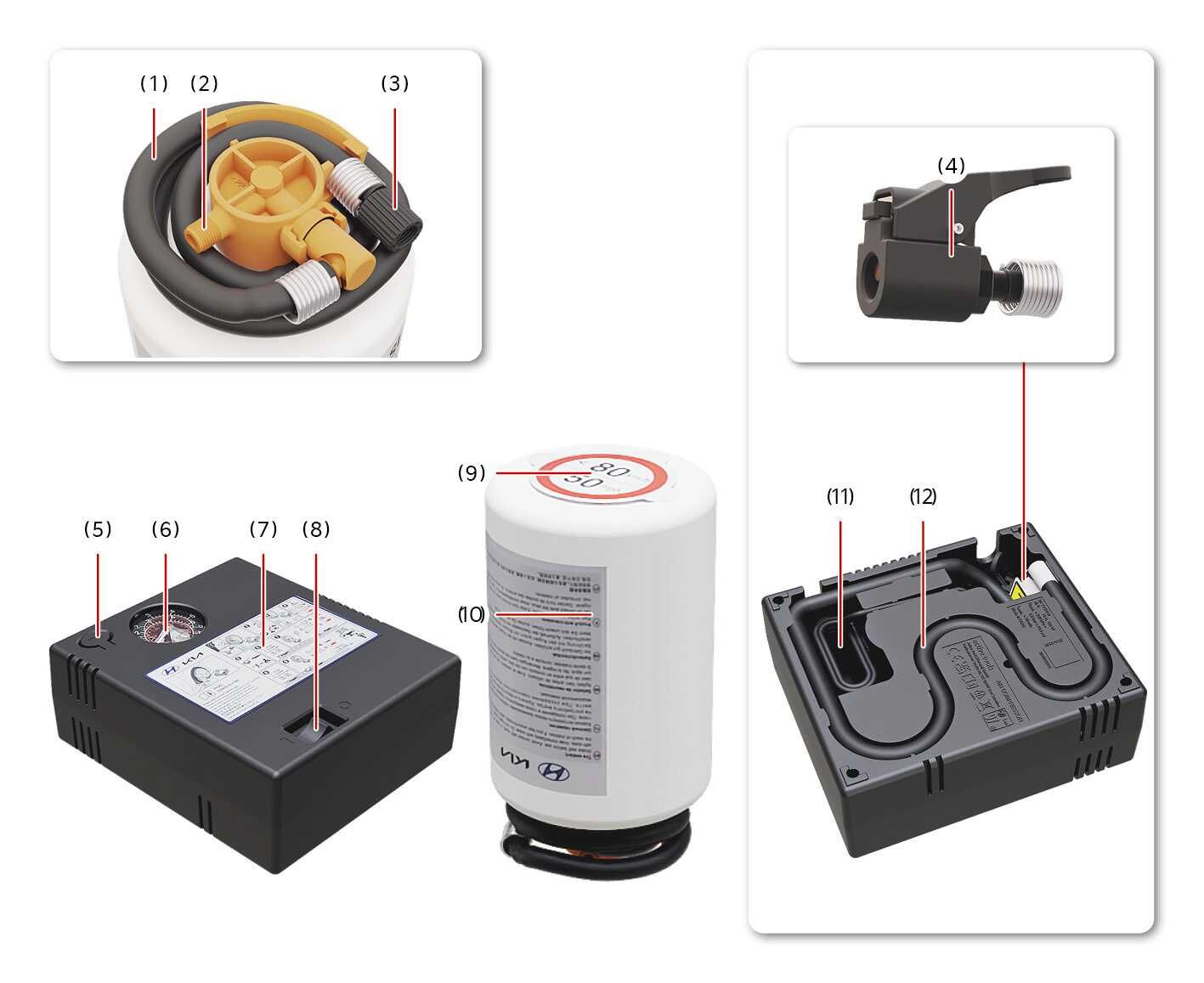

1. Sealant bottle filling hose

2. Compressor hose connector

3. Tire inflation pressure adjustment valve

4. Compressor connector

5. Tire pressure control valve

6. Tire inflation pressure gauge

7. Compressor

8. Compressor ON/OFF switch

9. Speed restriction label

10. Sealant bottle

11. Vehicle power outlet connector/cable

12. Compressor hose
