Checking tire inflation pressure

N_CT25F016_E

Operation

  1. After injecting the sealant, drive the vehicle for approximately 7–10 km (4.3-6.2 mile) or about 10 minutes, and then park in a safe place.

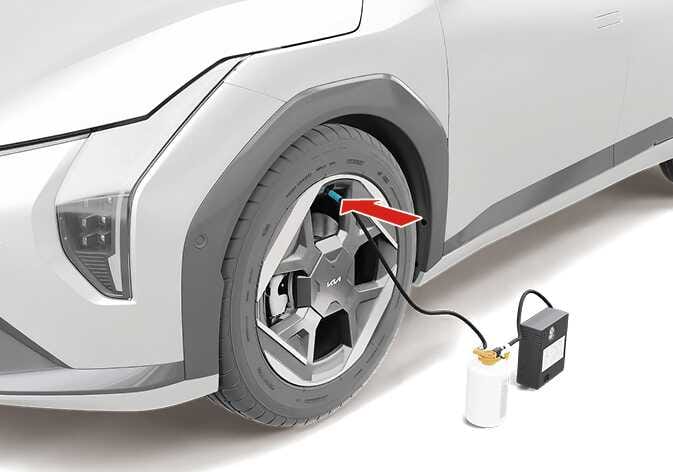

  2. Connect the compressor and the tire connection hose directly to the tire valve.

  3. Connect between compressor and the vehicle power outlet connector using the cable and connectors.

  4. Refer to the Tires and wheels or the Vehicle certification label/tire specification and pressure label to check the tire pressure and adjust it to the specified pressure.

  5. To increase the tire pressure, turn on the compressor and adjust the pressure to the specified tire pressure.

  6. To decrease the tire pressure, turn the tire pressure adjustment knob to adjust to the appropriate tire pressure.

  7. To check the current tire pressure, temporarily turn off the compressor.

WARNING

  • Do not let the compressor run for more than 10 minutes, otherwise the device will overheat and may be damaged.

  • The tire pressure must meet the specified pressure (refer to the Tires and wheels). If not, immediately stop driving and have your vehicle inspected by a professional workshop. Kia recommends visiting an authorized Kia dealer or service partner.

CAUTION

  • If the inflation pressure is not maintained, drive the vehicle a second time, refer to Distributing the sealant. Then repeat the steps.

  • The TMK may not cover tire punctures larger than approximately 4 mm. In this case, have your vehicle inspected by a professional workshop. Kia recommends visiting an authorized Kia dealer or service partner.

  • We recommend that you contact a professional workshop if the tire cannot be made roadworthy with the Tire Mobility Kit.

NOTE

When reinstalling the repaired or replaced tire and wheel on the vehicle, tighten the wheel lug nut to 11–13 kgf·m (79–94 lbf·ft).
