Suitability of each seating position for belted & ISOFIX Child Restraint Systems (CRS) according to UN regulations (Information for use by vehicle users and CRS manufacturers)
|
CRS categories |
Seating positions |
|||||||
|---|---|---|---|---|---|---|---|---|
|
1 |
2 |
3 |
4 |
5 |
6 |
|||
|
Airbag ON |
Airbag OFF |
|||||||
|
Universal belted CRS |
All mass groups |
- |
- |
No |
Yes *1 (F, R) |
Yes (F, R) |
Yes *2 (F, R) |
Yes (F, R) |
|
i-size CRS |
ISOFIX CRF: F2, F2X, R1, R2 |
- |
- |
No |
No |
Yes |
No |
Yes |
|
Carry-cot (ISOFIX lateral facing CRS) |
ISOFIX CRF: L1, L2 |
- |
- |
No |
No |
No |
No |
No |
|
ISOFIX infant* CRS (*: ISOFIX baby CRS) |
ISOFIX CRF: R1 |
- |
- |
No |
No |
Yes (R) |
No |
Yes (R) |
|
ISOFIX toddler CRS – small |
ISOFIX CRF: F2, F2X, R2, R2X |
- |
- |
No |
No |
Yes (F, R) |
No |
Yes (F, R) |
|
ISOFIX toddler CRS – large* (*: not booster seats) |
ISOFIX CRF: F3, R3 |
- |
- |
No |
No |
Yes (F, R *3) |
No |
Yes (F, R *3) |
|
Booster Seat – reduced Width |
ISO CRF: B2 |
- |
- |
No |
No |
Yes *4 |
No |
Yes *4 |
|
Booster Seat – full Width |
ISO CRF: B3 |
- |
- |
No |
No |
Yes *4 |
No |
Yes *4 |
1. You should adjust the front passenger seat height to the highest position. (Seat number 3)
2. The seating position (number 5) is not suitable for fitment of child restraint system with support leg.
3. For fitment of ISOFIX toddler's rearward large CRS
- Driver Seat: You should move the seat at mid position. (Seat number 1)
- Front Passenger Seat: You should move the seat at mid position. (Seat number 3)
4. If the vehicle headrest prevents proper installation of a CRS, the headrest of the seating position shall be readjusted or entirely removed.
|

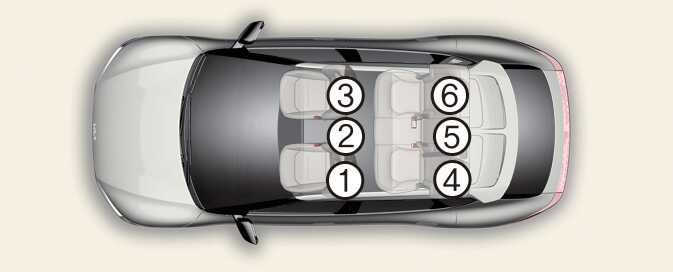

Seat Number Position in the vehicle |
||
|---|---|---|
|
1 |
Front left |
 OCV031030L |
|
2 |
Front centre |
|
|
3 |
Front right |
|
|
4 |
2nd row left |
|
|
5 |
2nd row centre |
|
|
6 |
2nd row right |
|
Never place a rearward facing Child Restraint System on the front passenger seat, unless the air bag is deactivated.
For semi-universal or vehicle specific CRS (ISOFIX or belted CRS), please see the vehicle list provided in the manual of CRS
