Opening/closing the bonnet

OCV041026L_2
OCV041589

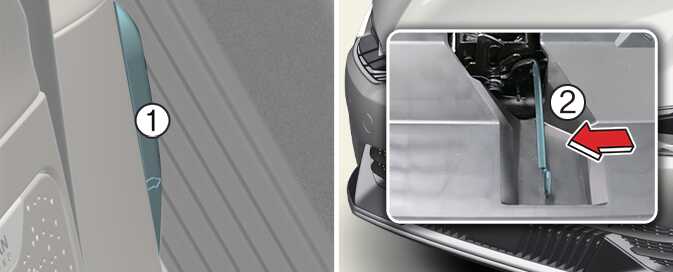

  1. Bonnet release lever

  2. Secondary bonnet release lever

Operation

  1. Pull the bonnet release lever (1).

  2. Push the secondary bonnet release lever (2) to the left.

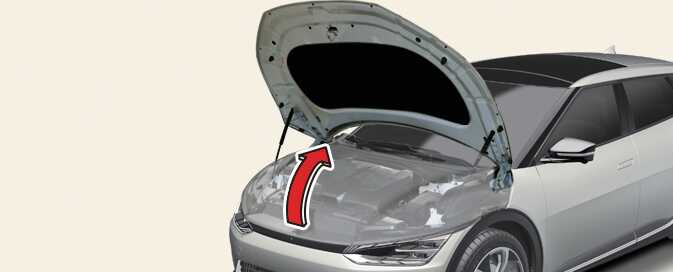

  3. Lift the bonnet upwards.

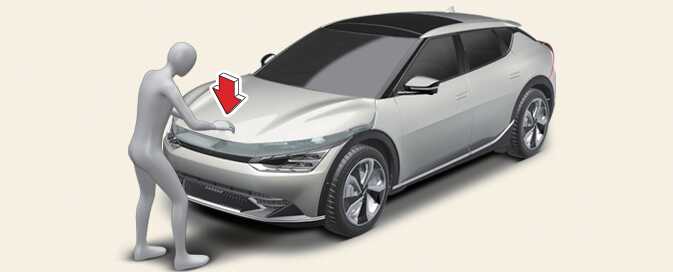

  4. To close the bonnet, lower the bonnet and let it drop. Make sure that it is properly locked into place.

OCV041590
WARNING

  • Open the bonnet after turning off the vehicle on a flat surface, shifting the gear to the P (Park) position and setting the parking brake.

  • Before closing the bonnet, ensure that all obstructions are removed from the bonnet opening. Closing the bonnet with an obstruction present in the bonnet opening may result in property damage or severe personal injury.

  • Do not leave gloves, rags or any other combustible material in the motor compartment. Doing so may cause a heat-induced fire.

  • Always double check to be sure that the bonnet is firmly latched before driving away. If it is not latched, the bonnet could open whilst the vehicle is being driven, causing total loss of visibility, which might result in an accident.

  • Do not move the vehicle with the bonnet raised. The view will be blocked and the bonnet could fall or be damaged.
