Operating lights

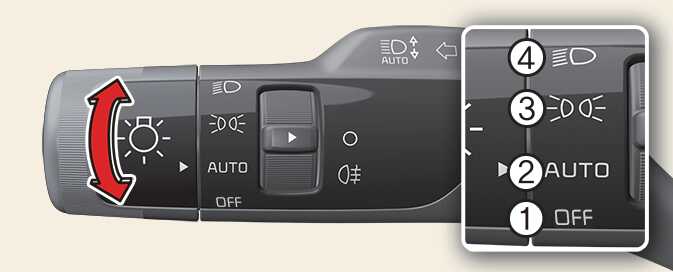

Figure 1. Type A
OCV041050L

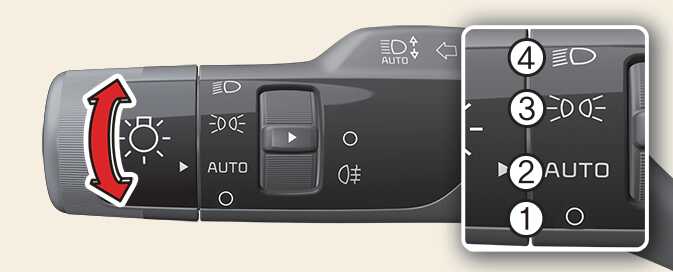

Figure 2. Type B
OCV041086L

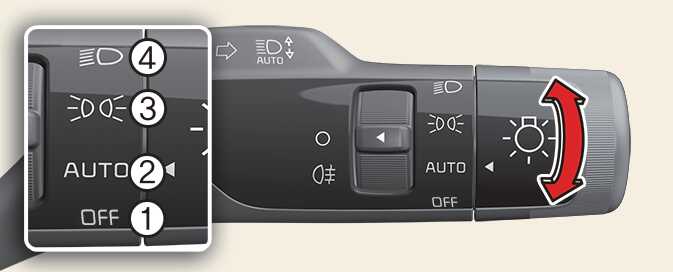

Figure 3. Type C
OCV041050R

Operation

  1. OFF (O)

  2. AUTO

    • The headlamps and tailamps will turn ON or OFF automatically depending on the external ambient light level.

  3. Position & Taillamp ( )

  4. Low beam ( )

TIP

The vehicle must be in the ON position to turn on the headlights.

CAUTION

  • Never place anything over the sensor located on the instrument cluster as this will ensure better auto-light system control.

  • Don't clean the sensor using a window cleaner, the cleaner may leave a light film which could interfere with sensor operation.

  • If your vehicle has window tint or other types of metallic coating on the front windscreen, the Auto light system may not work properly.
