Top View Parking Guidance

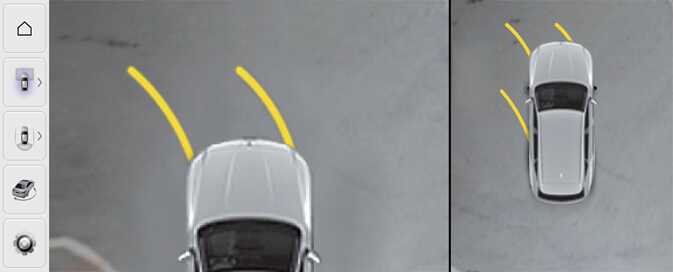

Figure 1. Front top view
OCV051199K

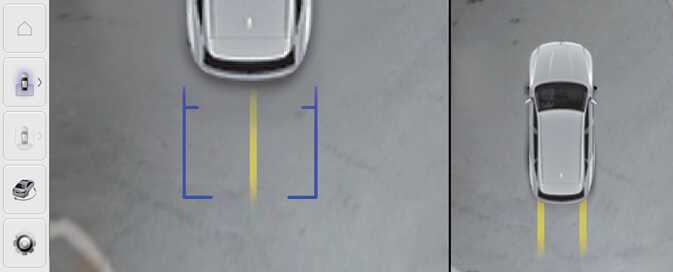

Figure 2. Rear top view
OCV051200K

Parking guidance is displayed on the right side of the Surround View Monitor screen when the Front or Rear Top View Parking Guidance is selected.

NOTE

The horizontal guideline of the Rear Top View Parking Guidance shows the tailgate opening distance and the distance of 2 m from the vehicle.
