Replacing the climate control air filter

Operation

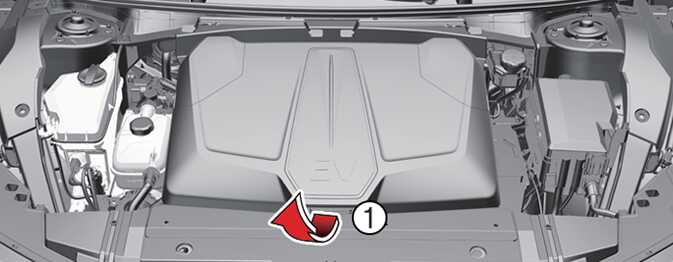

  1. Open the bonnet and lift up the front trunk cover whilst depressing the front trunk lever (1).

    OCV041014L0

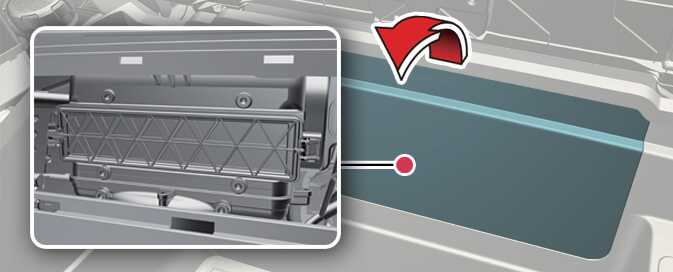

  2. Remove the cover by pulling the upper part of the cover.

    OCV071005K

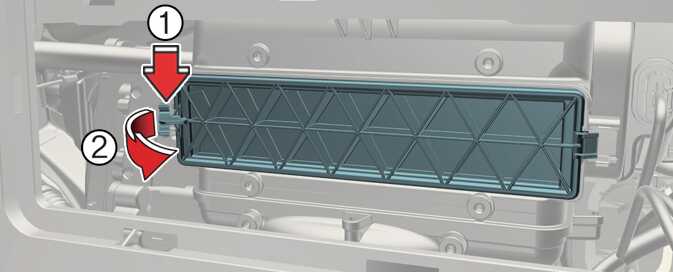

  3. Remove the climate control air filter cover (2) by pulling out both sides of the cover (1).

    OCV071006K

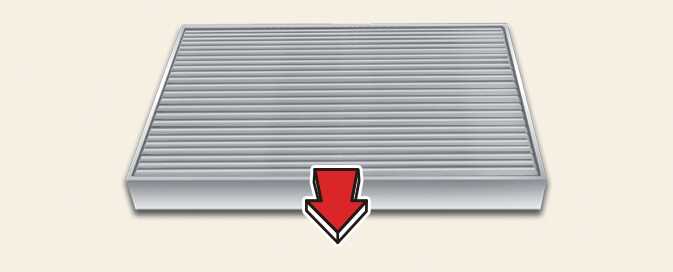

  4. Replace the climate control air filter.

    OCV071048L

  5. Reassemble in reverse order of disassembly.

NOTE

When replacing the climate control air filter install it properly. Otherwise, the system may produce noise and the effectiveness of the filter may be reduced.
