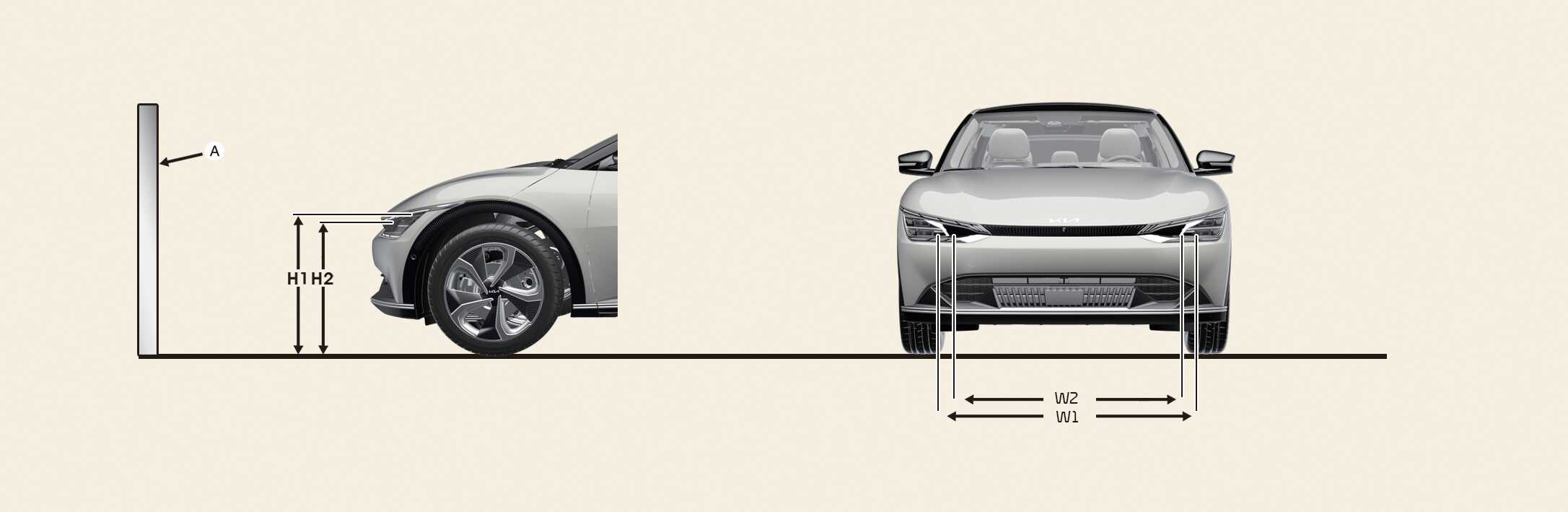

Aiming point
OCV071046L
A: Screen
|
Vehicle condition |
Head lamp (LED type) |
||||
|---|---|---|---|---|---|
|
Ground Height |
Distance between lamps |
||||
|
H1 (LOW) |
H2 (HIGH) |
W1 (LOW) |
W2 (HIGH) |
||
|
without driver [mm (in)] |
Type A |
708 (27.9) |
698 (27.5) |
1,610 (63.4) |
1,416 (55.8) |
|
Type B |
734 (28.9) |
679 (26.7) |
1,572 (61.9) |
1,526 (60.5) |
|
|
with driver [mm (in)] |
Type A |
698 (27.5) |
688 (27.1) |
1,610 (63.4) |
1,416 (55.8) |
|
Type B |
724 (28.5) |
669 (26.3) |
1,572 (61.9) |
1,526 (60.5) |
|
