Controlling air intake
This is used to select the outside (fresh) air position or recirculated air position.
 OCV041302L |
To change the air intake control position:
Push the desired control button.

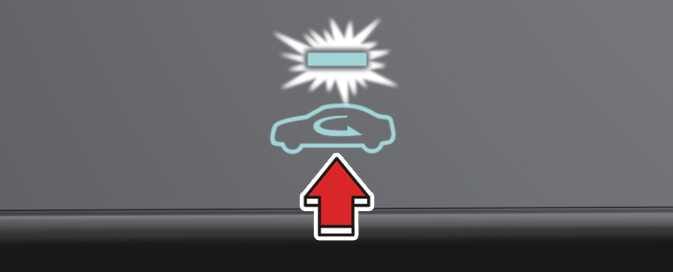

Recirculated air position
|
OCV041302L |
With the recirculated air position selected, air from the passenger compartment will be drawn through the heating system and heated or cooled according to the function selected.
Outside (fresh) air position
 OCV041324N |
With the outside (fresh) air position selected, air enters the vehicle from outside and is heated or cooled according to the function selected.
