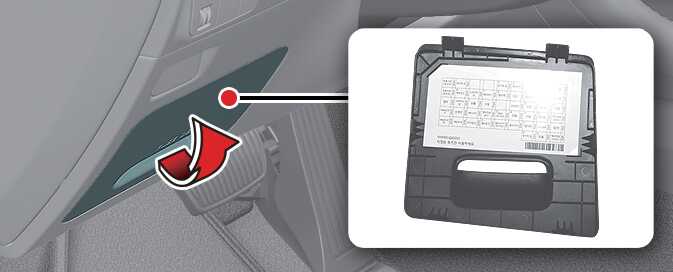

Driver's side fuse panel
 ODL3073037 |

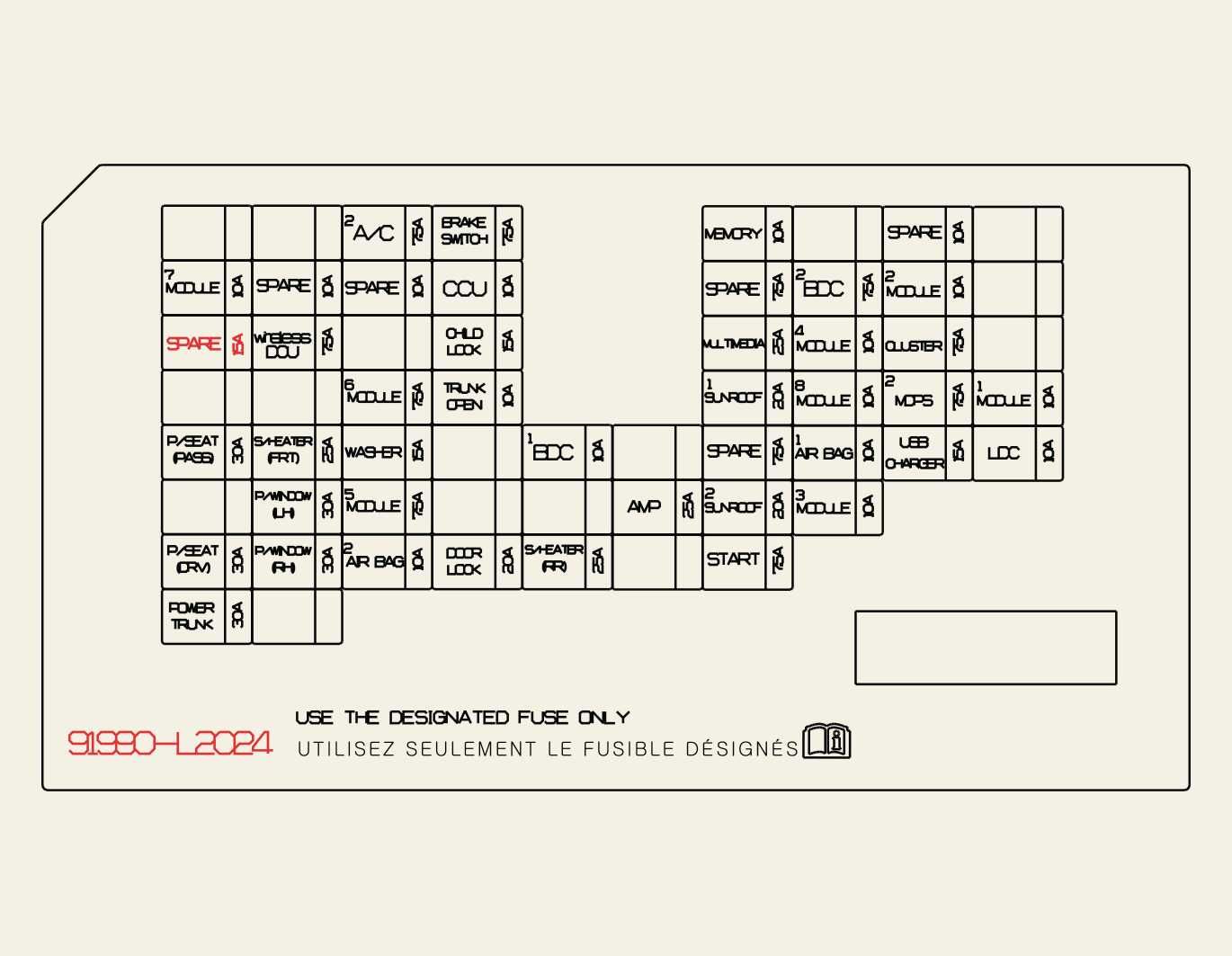

Not all fuse panel descriptions in this manual may be applicable to your vehicle. They are accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label on the inside of the fuse cover. This diagram will provide you with the specific information for your vehicles.
Refer to the following table for a description of the fuse.
|
Fuse Name |
Fuse rating |
Circuit Protected |
|---|---|---|
|
S/HEATER (FRT) |
25 A |
Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module |
|
TRUNK |
10 A |
Trunk Lid Relay |
|
DOOR LOCK |
20 A |
Door Lock Relay, Door Unlock Relay |
|
MODULE1 |
10 A |
BDC (Body Domain Controller), CCU (Central Communication Unit), DCU (Data Connectivity Unit), CCNC (Connected Car Navigation Cockpit), AMP (Amplifier), ADAS Parking ECU |
|
CHILD LOCK |
15 A |
Rear Child Lock Relay, Rear Child Unlock Relay |
|
MODULE3 |
10 A |
Rear Corner Radar, C/PAD Switch, DCU (Data Connectivity Unit), LKAS, Stop Lamp Switch, Electronic Parking Brake Switch, SCC Radar, VESS (Virtual Engine Sound System) Unit |
|
S/HEATER (RR) |
25 A |
Rear Seat Warmer Control Module |
|
P/SEAT (PASS) |
30 A |
Passenger Seat Manual Switch, Passenger Seat Relax Unit |
|
MODULE6 |
7.5 A |
P LBM (Parking-Lithium Battery Module), Front Heated Glass Relay |
|
SAFETY P/WINDOW (RH) |
30 A |
Passenger Safety Power Window Module, Passenger Power Window Switch, Rear Power Window switch Left Handle side |
|
P/SEAT (DRV) |
30 A |
Driver Seat Manual Switch, Driver IMS (Integrated memory system) Module |
|
BDC1 |
10 A |
BDC (Body Domain Controller), Ignition Switch |
|
AMP |
25 A |
AMP (Amplifier) |
|
SAFETY P/WINDOW (LH) |
30 A |
Driver Safety Power Window Module, Rear Power Window Switch Left Handle side |
|
BRAKE SWITCH |
7.5 A |
Stop Lamp Switch, IBU (Integrated Body Control Unit) |
|
SUNROOF2 |
20 A |
Sunroof Controller (Blind Motor) |
|
AIR BAG2 |
10 A |
SRS (Supplemental Restraint System) Control Module |
|
AIR BAG1 |
10 A |
SRS (Supplemental Restraint System) Control Module |
|
MEMORY |
10 A |
Driver IMS (Integrated memory system) Module, Driver/Passenger Power Outside Mirror, Rain Sensor, Head-Up Display, Instrument Cluster, Air Conditioner Control Module, Air Conditioner Switch |
|
E-CALL |
10 A |
MTS (Mozen Telematics System) E-call Module |
|
MULTI MEDIA |
25 A |
Audio, Audio/Video & Navigation Head Unit |
|
SUNROOF1 |
20 A |
Sunroof Controller (Glass Motor) |
|
MODULE7 |
10 A |
ECM (Engine Control Module), Blower Relay, Hazard Switch, Multi Function Switch, Power Trunk Lid Unit, Driver Outside Handle Switch, Passenger Outside Handle Switch, Electronic Parking Brake Switch, Outside Mirror, Sport Mode Switch, UWB (Ultra Wide Band), Rain Sensor |
|
MODULE5 |
7.5 A |
BDC (Body Domain Controller) |
|
MODULE8 |
10 A |
Overhead Console Lamp, Multi Function Switch, Sport Mode Switch, DAU |
|
MODULE2 |
10 A |
CCU (Central Communication Unit), Stop Lamp Switch, Console Switch |
|
MDPS2*1 |
7.5 A |
Motor Driven Power Steering Unit |
|
A/C2 |
7.5 A |
Air Conditioner Control Module, Air Conditioner Switch, Engine Room Junction Block (Blower Relay) |
|
MODULE4 |
10 A |
Overhead Console Lamp (Lamp), Rear USB Charger, Rear Power Outlet, IBU (Integrated Body Control Unit), MTS (Mozen Telematics System) E-Call Module, Audio, Audio/Video & Navigation Head Unit, AMP (Amplifier), Surround View Monitor Unit, ADAS Parking ECU |
|
CLUSTER |
7.5 A |
Instrument Cluster, Head-Up Display |
|
WASHER |
15 A |
Multifunction Switch |
|
START |
7.5 A |
B/Alarm Relay, Transmission Range Switch |
|
CCU |
10A |
CCU (Central Communication Unit) |
|
USB CHARGER |
15A |
Rear USB Charger, Front tray |
|
LDC |
10A |
Cluster, Head Up Display, MTC, Front tray, ADAS Park ECU, Rear Corner Radar |
|
POWER TRUNK |
30A |
Power Trunk Lid |
|
BDC2 |
7.5 A |
BDC (Body Domain Controller), Ignition Switch |
|
wireless DCU |
7.5 A |
DCU (Data Connectivity Unit) |
MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).
